Single Slip Medication Pouch Printer(Color)
4LC-CNminiⅡ/
4LC-FXⅣ/5LC-FXⅢ
Color Laser Printer with Gusseted Medication Pouch Compatibility
Features
Slim and Stylish— 4LC-CNmini II
With a width and depth of less than 50cm, this compact medication pouch printer delivers a sleek and streamlined aesthetic with minimal convex-concave edges or obtrusive features. The 4LC-CNmini II achieves high printing speeds of approximately 38 sheets per minute on A4 plain paper and 59 sheets per minute on A5 plain paper. Moreover, printing speeds are not compromised by using a mix of paper sizes.

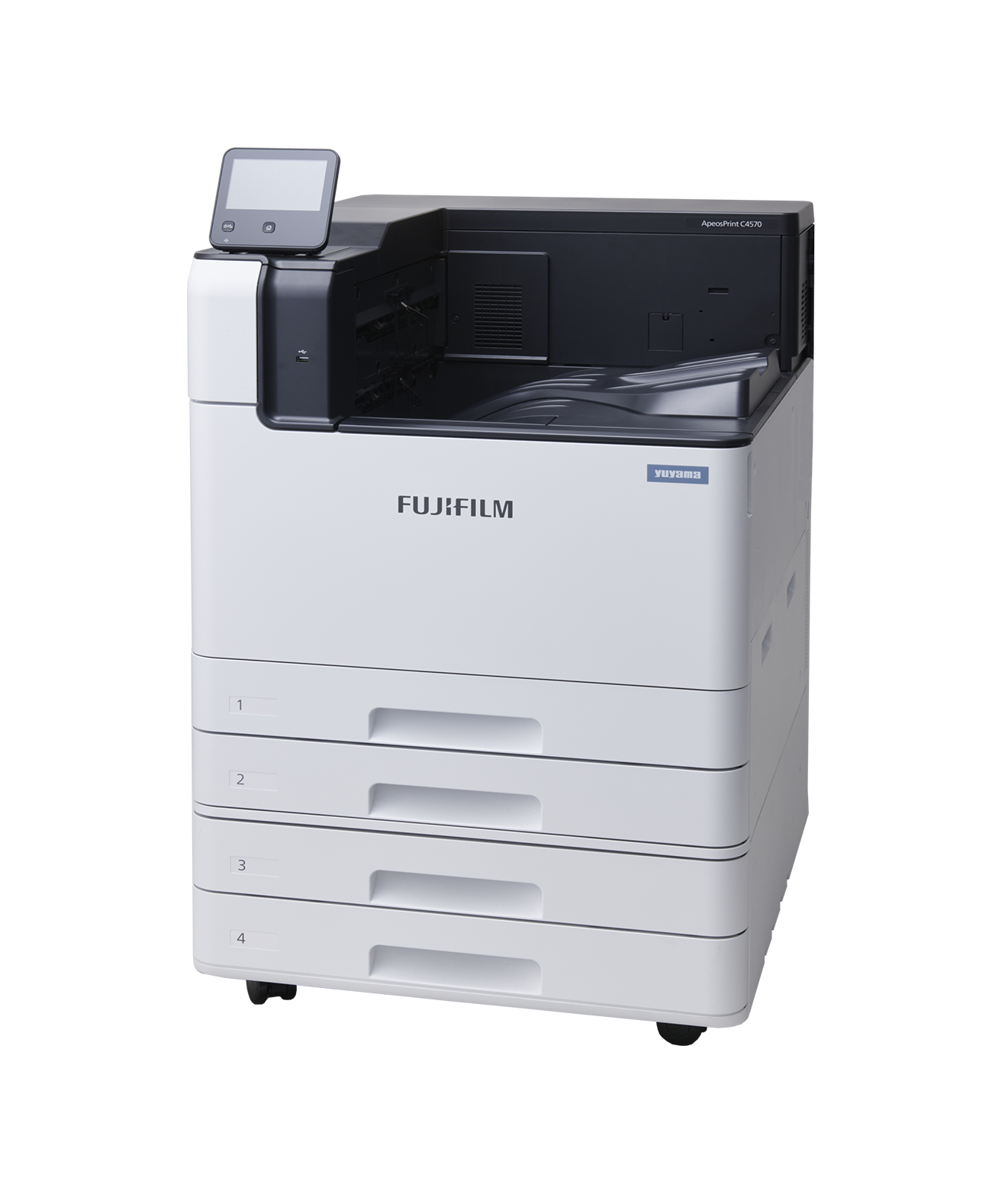

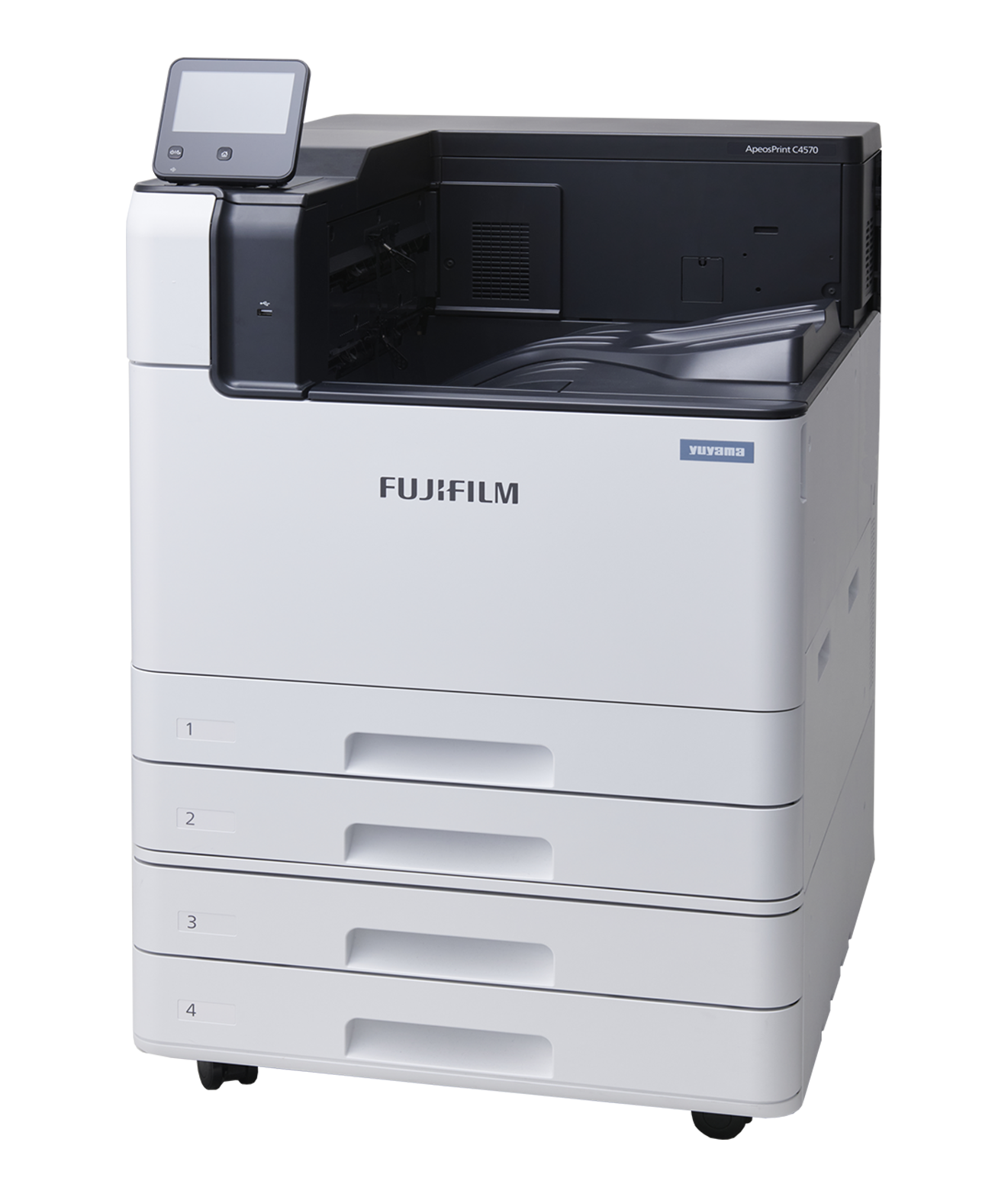

Optimal Choice for High-volume Printing— 4LC-FX IV
The 4LC-FX IV boasts a long lifespan with a main unit durability of approximately 1.5 million sheets (A4 long side feed), making it the ideal choice for facilities with high-volume printing. It has a first print speed of 5.5 seconds or less for color and 4.2 seconds or less for monochrome printing.

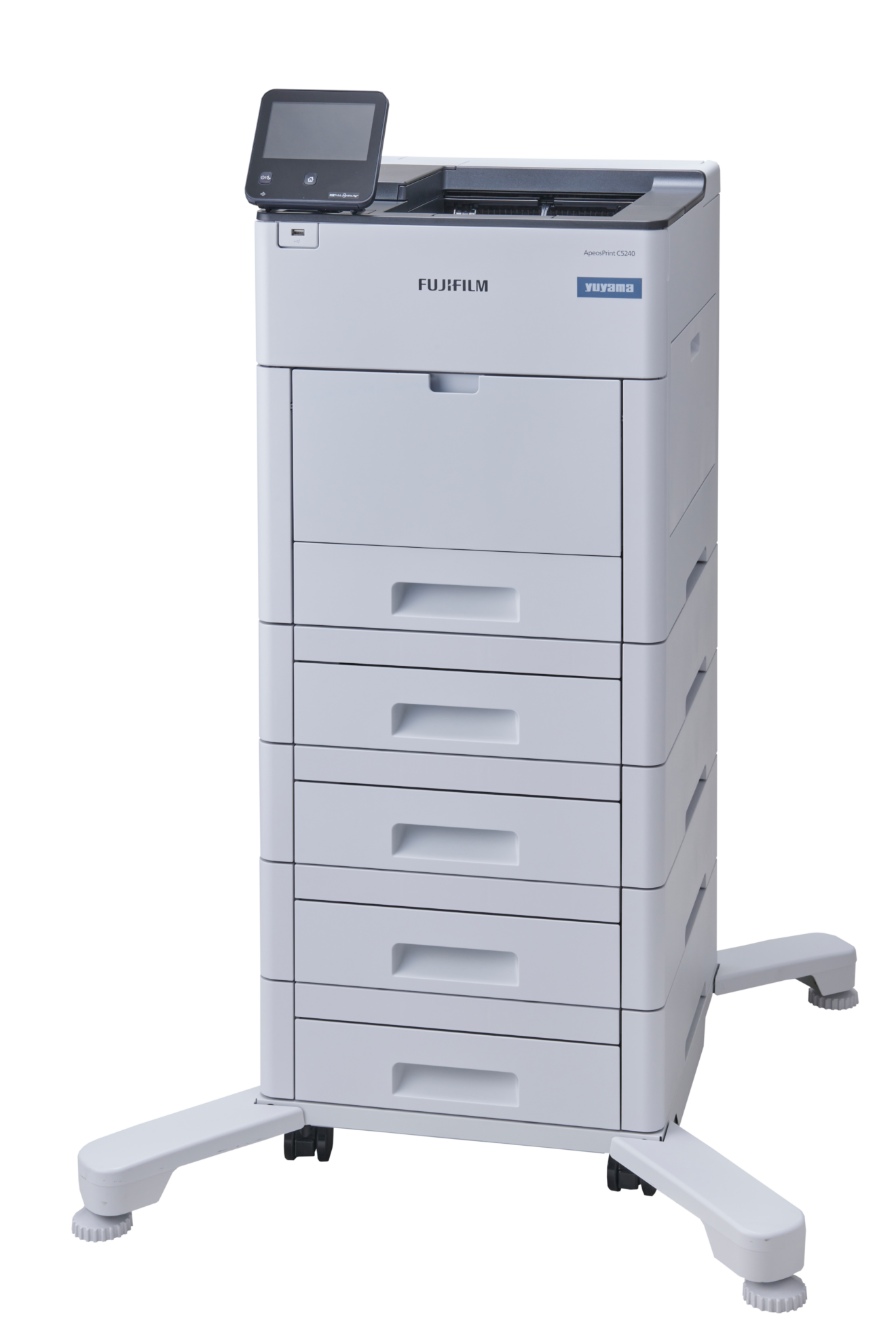

Capable of Storing a Diverse Range of Medication Pouches— 5LC-FXⅢ
This high-capacity printer can hold approximately 350 medicine pouches per cassette. It has five cassettes which can store an abundant variety of medicine pouches. With gusseted medication pouch printing capacity, this printer is the perfect choice for long-term, high-volume dispensing.
Spec
| Product Name | Single Slip Medication Pouch Printer |
|---|---|
| Model | •4LC-CNminiⅡ •4LC-FXⅣ •5LC-FXⅢ |
| External Dimensions | 4LC-CNminiⅡ; 458mm (width)×464mm (depth)×833mm (height) *696mm wide when using the manual feeder. 4LC-FXⅣl; 620mm (width)×721mm (depth)×961mm (height) ＊1,055mm wide when using the manual feeder 5LC-FXⅢ; 545mm (width)×619mm (depth)×1,026mm (height) ＊869mm wide when using the manual feeder |
| Mass (including consumables) | 4LC-CNminiⅡ; Approx. 52.6kg 4LC-FXⅣ; Approx. 120.0kg 5LC-FXⅢ; Approx. 67.3kg |
| Power Supply | 4LC-CNminiⅡ; AC100V、7.7A (50/60Hz) 4LC-FXⅣ; AC100V±10％(50/60Hz) 5LC-FXⅢ; AC100V±10％(50/60Hz) |
| Power Consumption | 4LC-CNminiⅡ; 1,500W(Max) 4LC-FXⅣ; 1,320W(Max) 5LC-FXⅢ; 1,290W(Max) |
| Printing Color | Full color |
| Printing Speed | 4LC-CNminiⅡ; Max. 2,280 sheets per min. *Continuous printing on the same A4-sized pouch 4LC-FXⅣ; Max. 2,700 sheets per min. *Continuous horizontal printing on standard A4 paper 5LC-FXⅢ; Max. 3,120 sheets per min. *Continuous printing on standard A4 paper |
| Number Loaded Medications Pouches | 4LC-CNminiⅡ; 5 types (1st tier: 250 pouches, 2nd tier: 250 pouches, 3rd tier: 250 pouches, 4th tier: 250 pouches, manual feed: 40 pouches) 4LC-FXⅣ; 5 types (1st tier: 250 pouches, 2nd tier: 250 pouches, 3rd tier: 250 pouches, 4th tier: 250 pouches, manual feed: 50 pouches) 5LC-FXⅢ; 6 types (1st tier: 350 pouches, 2nd tier: 350 pouches, 3rd tier: 350 pouches, 4th tier: 350 pouches, 5th tier: 350 pouches, manual feed: 100 pouches) |
| Compatible Medication Pouches | 4LC-CNminiⅡ; 9 types (P-12, A5, B5, A4, A4 gusseted (short), A4 gusseted (long), electrostatic PET transparent A5/B5/A4) 4LC-FXⅣ; 9 types (P-12, A5, B5, A4, A4 gusseted (short), A4 gusseted (long), electrostatic PET transparent A5/B5/A4) 5LC-FXⅢ; 6 types (P-12, A5, B5, A4, A4 gusseted (short), A4 gusseted (long) |
| Main Unit Lifetime | 5 years |
| Main Unit Lifespan (by printing volume) | 4LC-CNminiⅡ; 600,000 sheets 4LC-FXⅣ; 1,500,000 sheets 5LC-FXⅢ; 600,000 sheets |
| Running Costs | 4LC-CNminiⅡ; Full color: Approx. 12.8 yen per sheet Monochrome: Approx. 3.1 yen per sheet 4LC-FXⅣ; Full color: Approx. 11.4 yen per sheet Monochrome: Approx. 2.8 yen per sheet 5LC-FXⅢ; Full color: Approx. 13.4 yen per sheet Monochrome: Approx. 3.2 yen per sheet |
