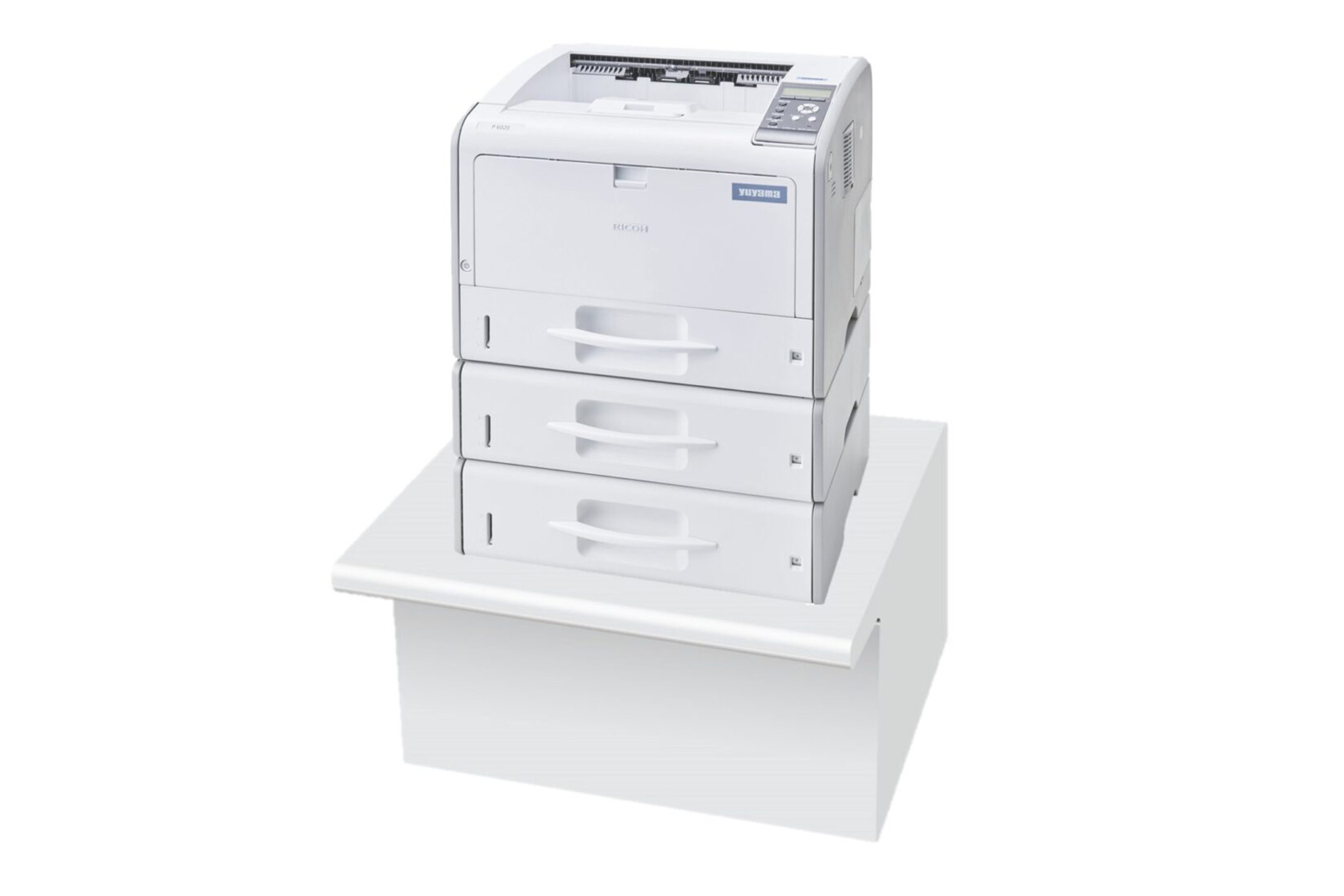

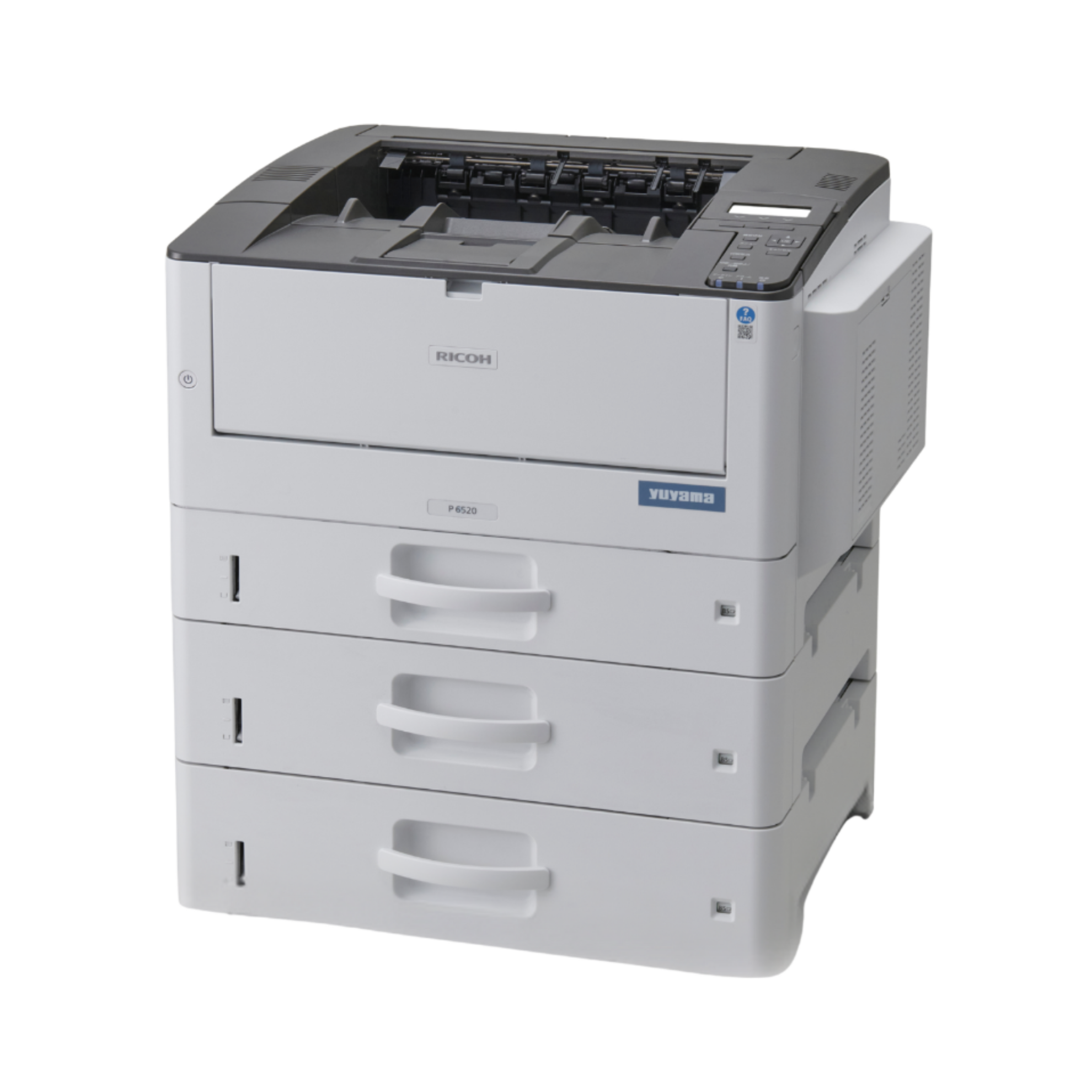

Single Slip Medication Pouch Printer(Monochrome)
4LM-Ⅶ
A Compact and Easy to Adopt Monochrome Laser Printer
Features
Compact and Easy to Adopt
The 4LM-VII is the most compact of all YUYAMA medication pouch printers. This tabletop model can be placed anywhere, making it ideal for facilities that issue large volumes of printed medication pouches but need a monochrome laser printer that won’t take up valuable space.
Even Faster Printing Speed
Delivers a first print speed of less than 6.5 seconds on A4 plain paper and a continuous print speed of 2,340 sheets per hour. Stress-free and smooth operation even when issuing medication pouches in large quantities.
High-Durability and High-Capacity Loading Power
The 4LM-VII has a long lifespan with a main unit durability of approximately 1.2 million sheets, making it the perfect choice for facilities that print large volumes of medication pouches. This printer has four medication pouch loading points, including a three-tier cassette and a manual feed tray, and a maximum loading capacity of 575 medication pouches.
Spec
| Product Name | Single Slip Medication Pouch Printer |
|---|---|
| Model | 4LM-Ⅶ |
| External Dimensions | 469mm (width)×392mm (depth)×596mm (height) ＊632mm wide when using the manual feeder |
| Mass (including consumables) | Approx. 33.0kg |
| Power Supply | AC100V±10％(50/60Hz) |
| Power Consumption | 1,073W(Max.) |
| Printing Color | Monochrome |
| Printing Speed | Max. 2,340 sheets per min. *Continuous horizontal printing on standard A4 paper |
| Number Loaded Medications Pouches | 4 types (1st tier: 125 pouches, 2nd tier: 200 pouches, 3rd tier: 200 pouches, manual feed: 50 pouches) |

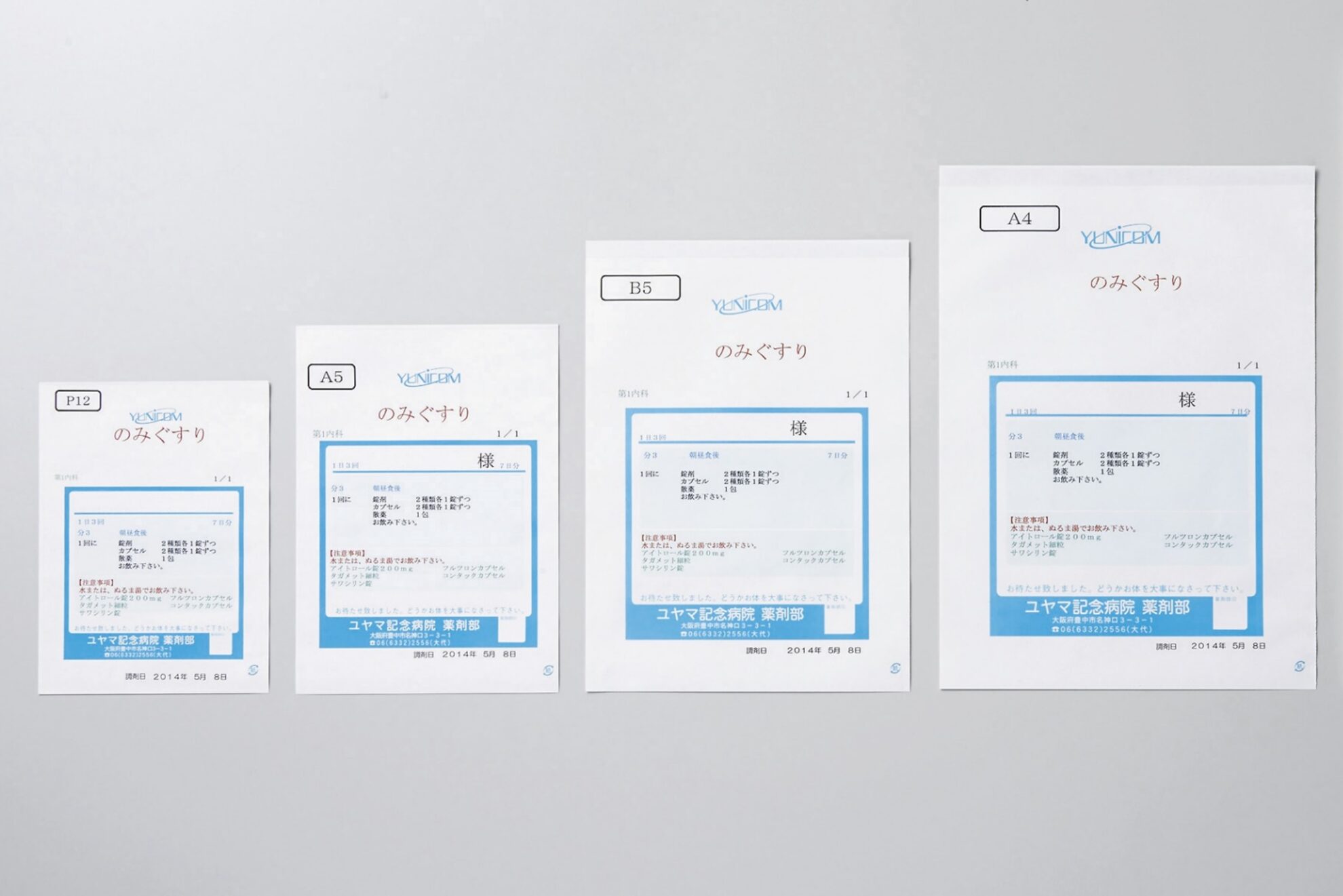

| Compatible Medication Pouches | 4 types (P-12, A5, B5, A4) |
| Main Unit Lifetime | 5 years |
| Main Unit Lifespan (by printing volume) | 1,200,000 sheets |
| Running Costs | Monochrome: Approx. 3.8 yen per sheet |
