Biohazard Measure Cabinets
B-A Ⅱ N/D Type/B2 Type
High Performance and Ease of Use Create a Safe and Comfortable Work Environment
Features
Safety Cabinet for a High Level of Cleanliness
A safety cabinet ideal for the preparation of anticancer drugs, etc. Maintaining negative pressure in the work space prevents contaminated air from leaking outside while also protecting the preparer. Equipped with a high-performance ULPA filter, it captures more than 99.999% of 0.1 to 0.3µm particles, achieving ISO Class 3 high cleanliness.
*Type B2 exhaust filter is a HEPA filter
Two Types of Exhaust Methods
Safety cabinets are available in A2 type, with roughly 30% internal exhaust or roughly 30% external exhaust and approx. 70% circulation, and B2 type, with 100% exterior exhaust. Each is available in a wide variety of sizes and can be selected according to the installation environment and purpose of use.
Designed for Ease of Operation

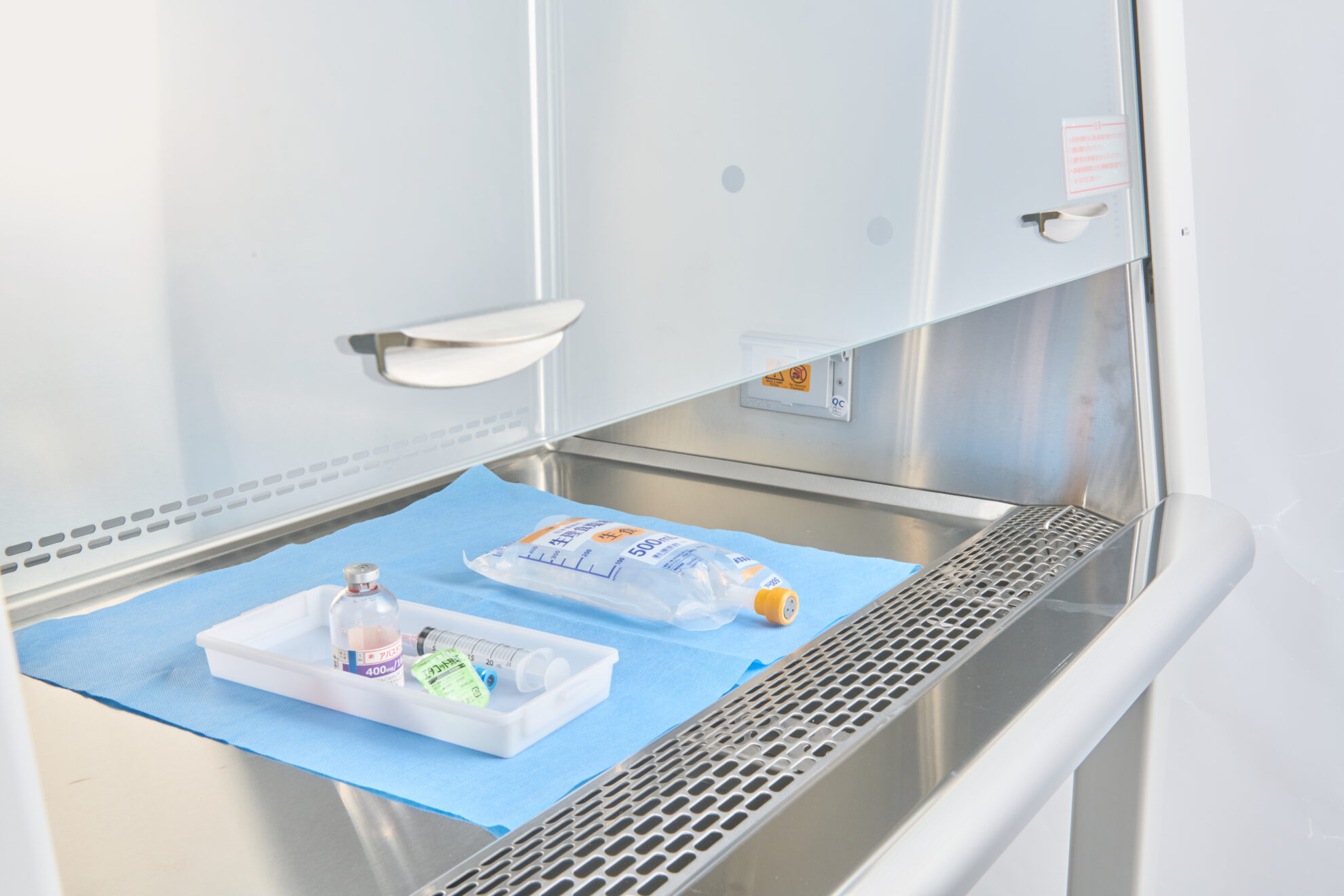

The frameless, unobstructed front glass door has a 10-degree tilt, allowing for easy preparation in a comfortable position. The armrests are also higher than the suction inlet, making it easier to perform detailed work while reducing arm fatigue.
Spec

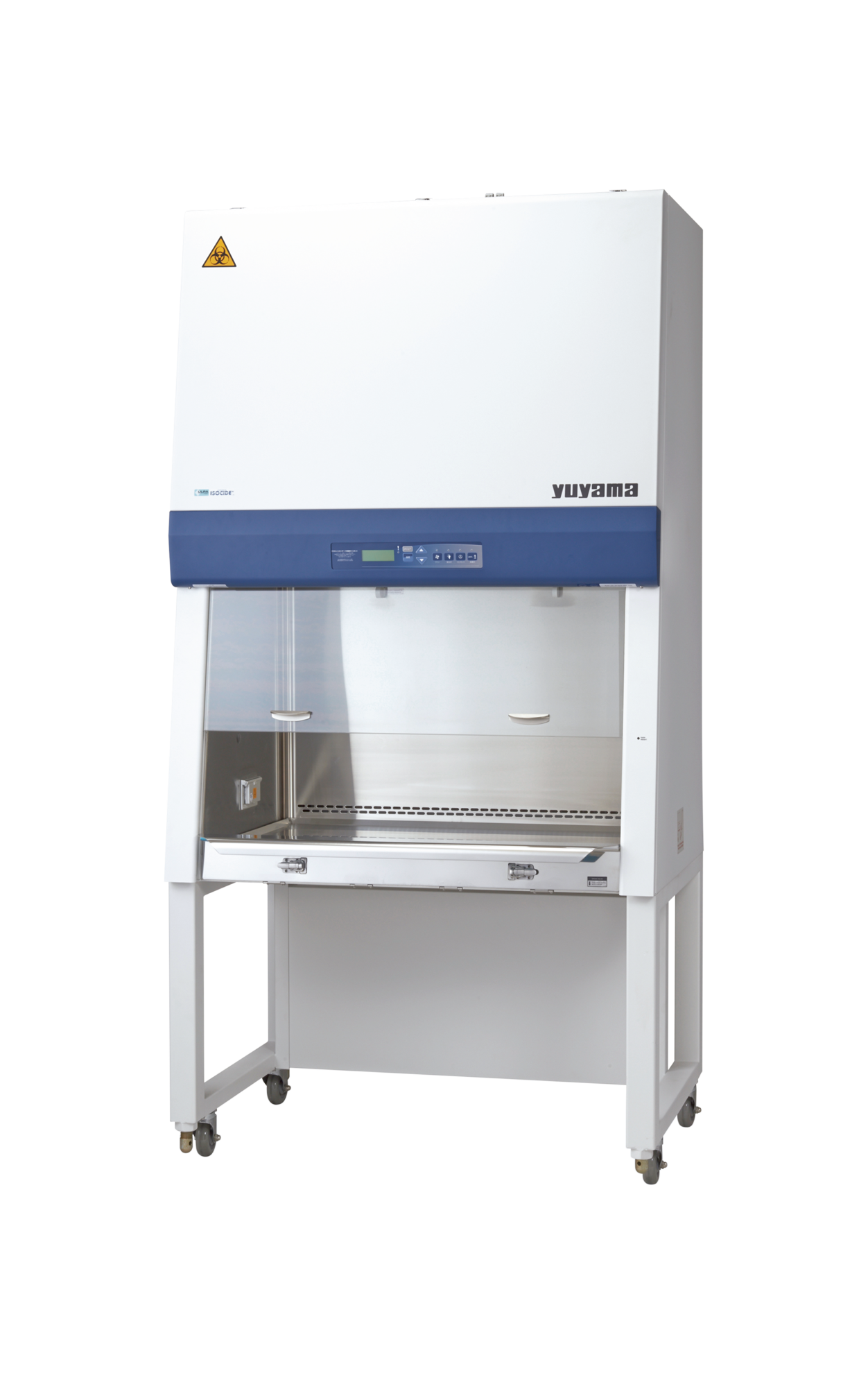

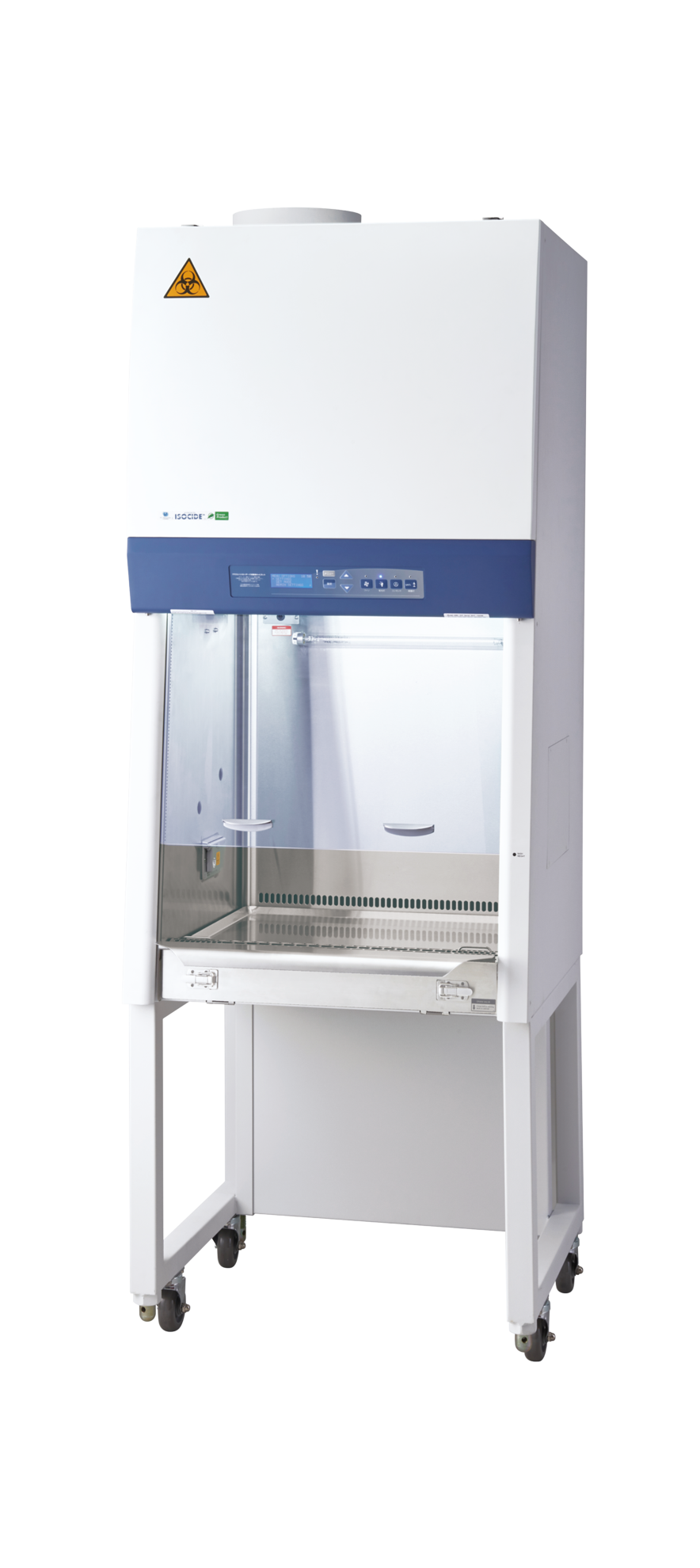

| Product Name | Biohazard Measure Cabinets A110Ⅱ A2N/A2D/B2 |
|---|---|
| Model | YS-B-A110ⅡA2N/YS-B-A110ⅡA2D/YS-B-A110ⅡB2 *Other size variations are also available. |
| Exhaust Air | A110ⅡA2N: Internal exhaust: Approx. 70% circulation / Approx. 30% exhaust ventilation A110ⅡA2D: External exhaust: Approx. 70% circulation / Approx. 30% exhaust ventilation A110ⅡB2 : External exhaust: Approx. 100% exhaust ventilation *A2D and B2 require construction for external exhaust ventilation. |
| External Dimensions | A110ⅡA2N: 1,115mm (width)×852mm (depth)×2,190mm (height) A110ⅡA2D: 1,115mm (width)×852mm (depth)×2,316mm (height) A110ⅡB2 : 1,115mm (width)×852mm (depth)×2,260mm (height) |
| Weight | A110ⅡA2N: Approx. 243kg A110ⅡA2D: Approx. 243kg A110ⅡB2 : Approx. 279kg |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | A110ⅡA2N:517.5/650W(50/60HZ) A110ⅡA2D:517.5/650W(50/60HZ) A110ⅡB2:276/547W(50/60HZ) |
| Dust Capture Efficacy | A110ⅡA2N･A2D: ULPA filter for circulation: 99.999% or higher capture rate for 0.1-0.3μm particles A110ⅡB2: ULPA filter for air supply: 99.999% or higher capture rate for 0.1-0.3μm particles ULPA filter for exhaust air: 99.999% or higher capture rate for 0.3μm particles |
| Cleanliness Grade | ISO Class 3 |
