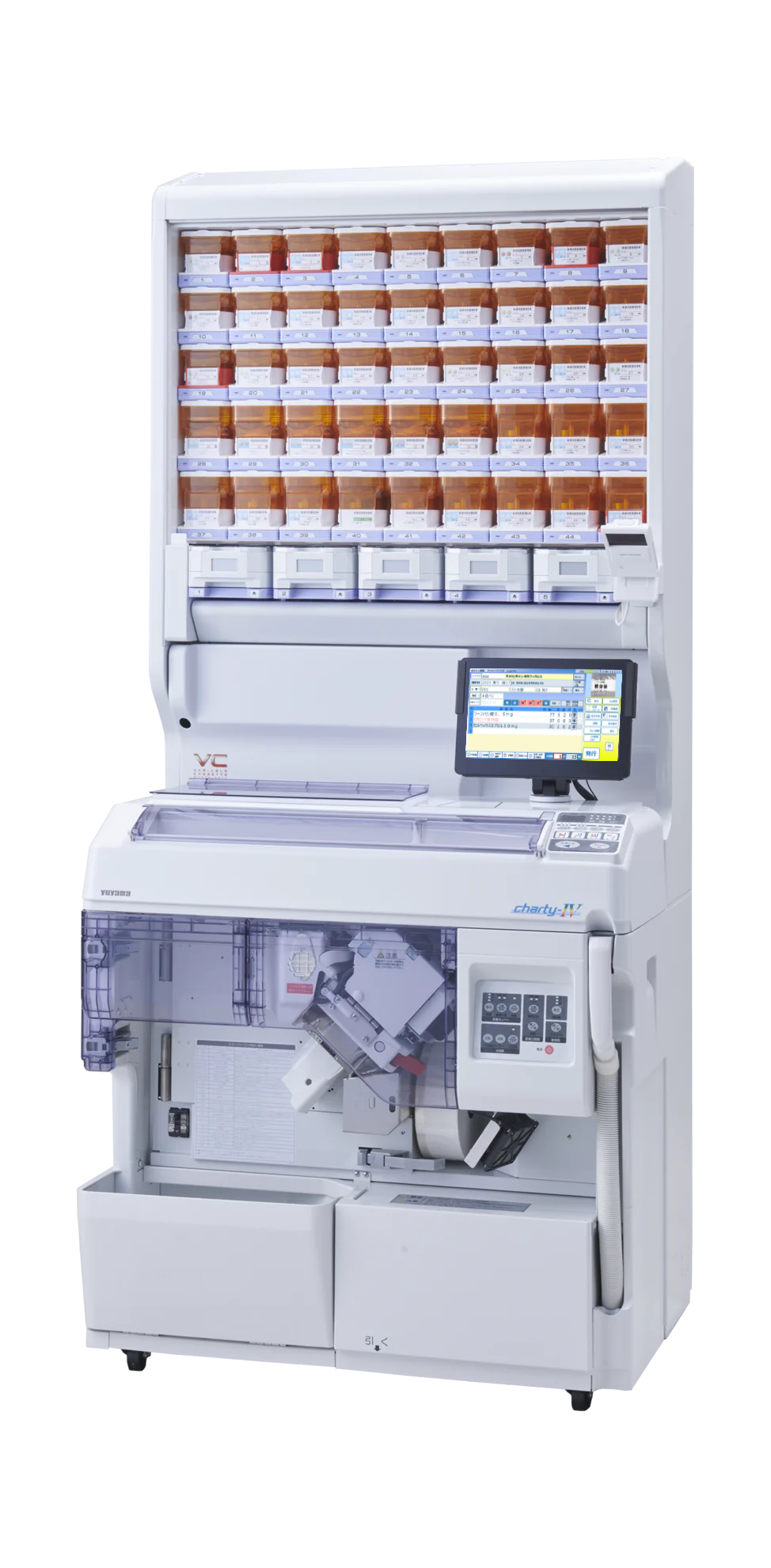

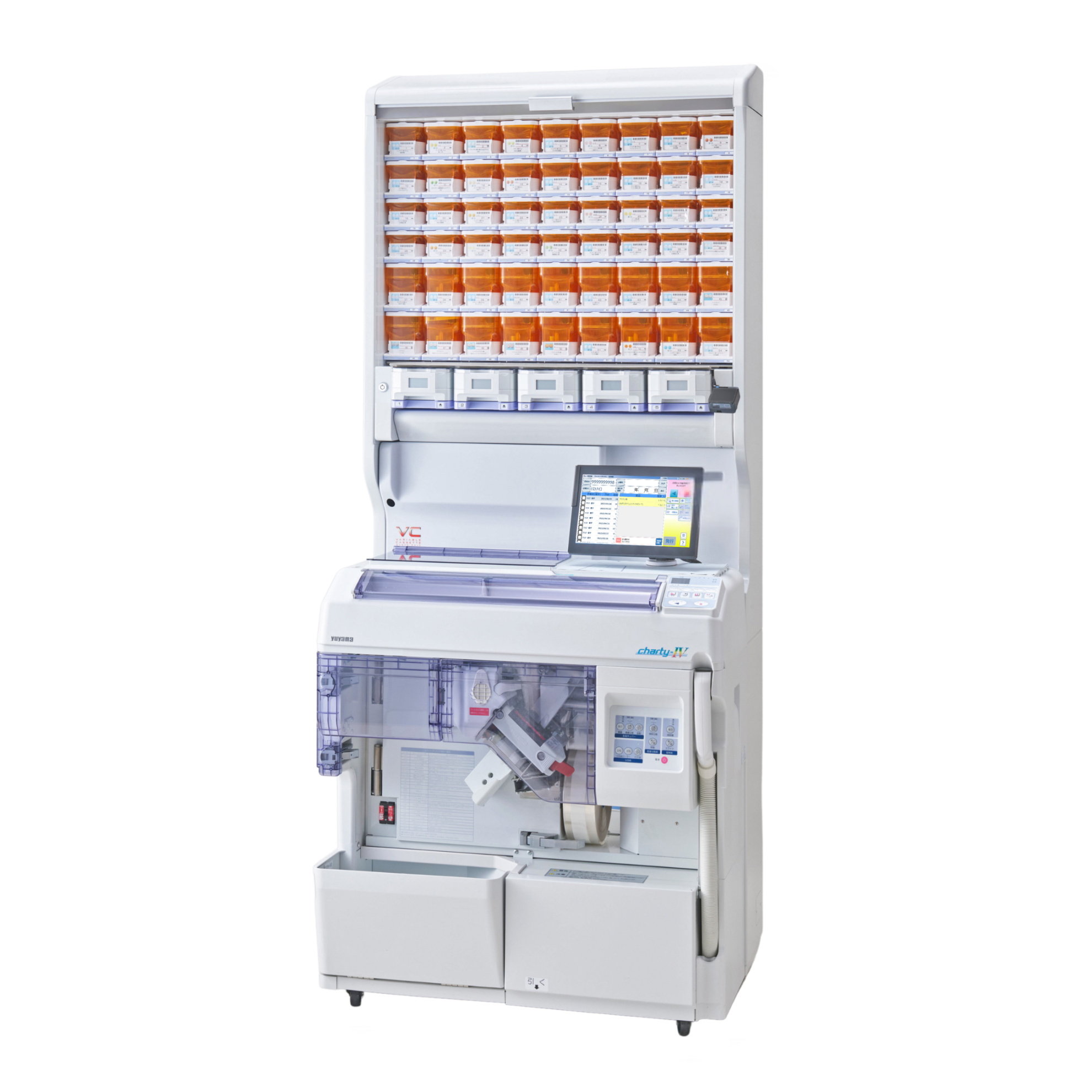

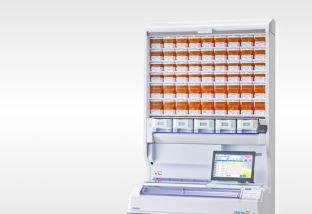

Automatic Dividing Packaging Machine
Charty-IV

Successor to the V Mass Model
Chosen for its Efficiency and Safety

Features

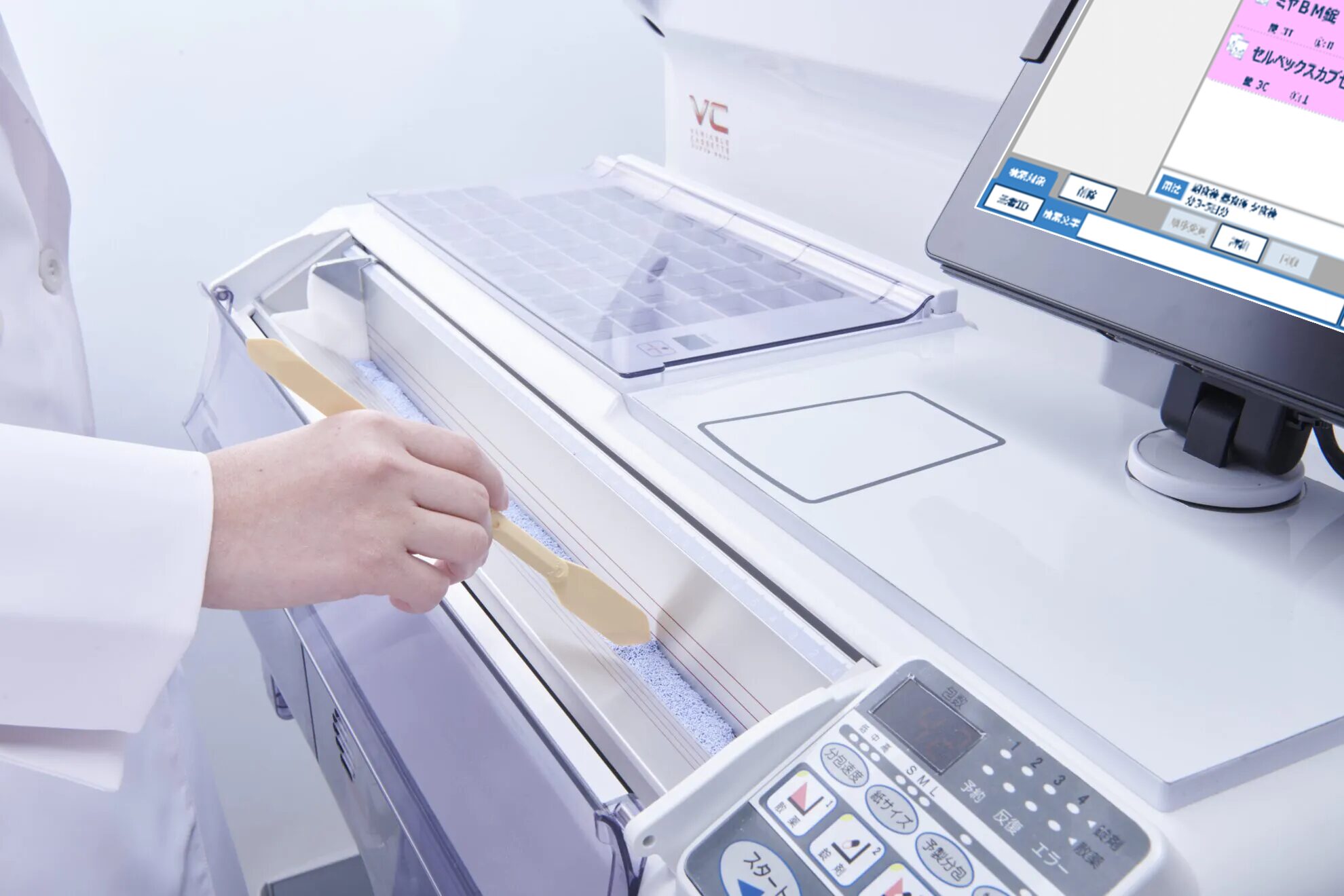

Equal Distribution of Powder Medication on the V-mass Line

The unique red line enables simple, stable, and equal distribution of powders along the V-mass line instead of relying on experience and intuition when measuring volume mass. The fixed door type V-mass cover prevents foreign matter contamination while not in use and does not interfere with other operation when dispensing.

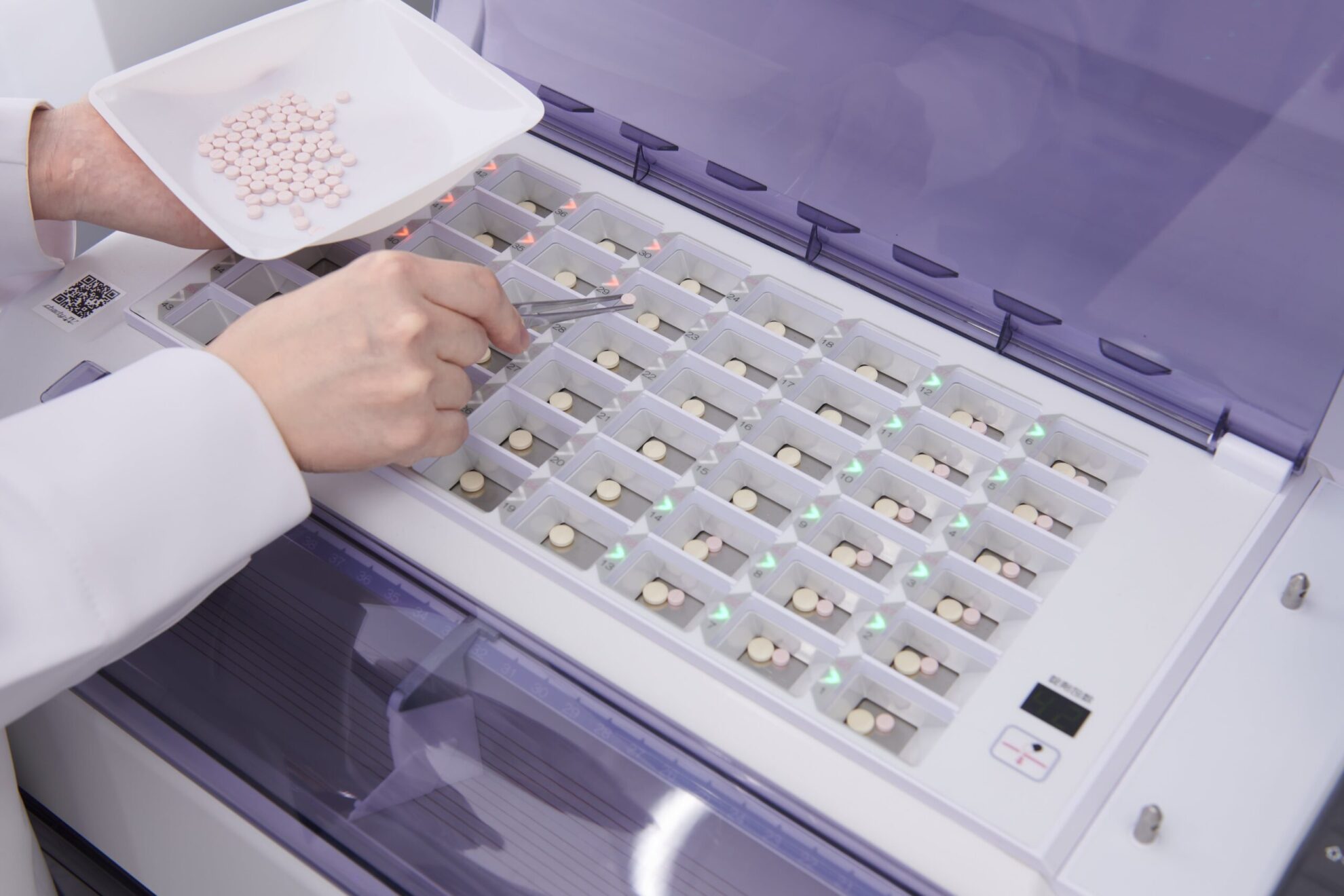

Six-color LED Guides for Added Safety

Display color-coded guides in six color variations (green, blue, red, yellow, purple, and light blue) on manual dose dispensing squares (cells) for each medication or application. At a glance, you’ll know which square to dispense the next tablet into, thereby increasing both safety and efficiency.

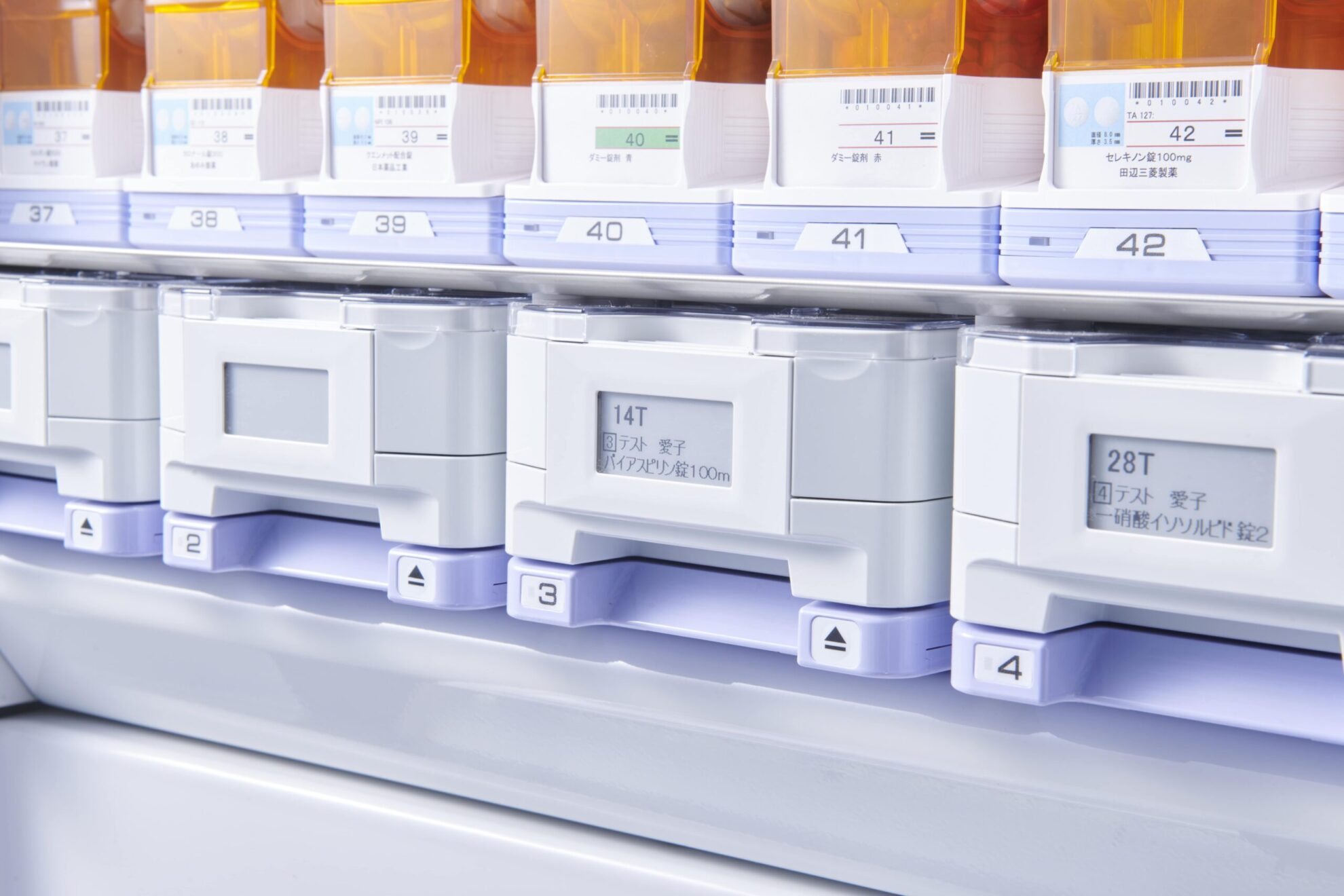

Four Tablet Dispensing Cassette Storage Units with 12 Patterns

Features a tablet cassette mechanism that can be mounted to the body of the Charty-IV for convenient single-dose packaging of long-term prescription medications and storage of powder medication cassettes. Available in 12 different cassette variations. Cassettes can also be retrofitted to the main unit to match your work style.
*Optional

Spec

Product Name Charty-Ⅳ Ultra Compact Packaging Machine
Model CPX45AⅣ
External Dimensions 890mm (width)×404mm (depth)×930mm (height)
Weight Approx. 101kg
Power Supply AC100V±10V(50/60Hz)
Power Consumption 900VA(Max.)
Number of Packages Powdered medications: 1 to 45 packages
Tablets: 1 to 360 packages (When issuing PX)
Number of Manual Dosing Tablet Squares (Cells) 45 tablets/time
Dispensing Speed 46, 40, 30 packages/min. (can be change modes at the switch.)
Single Package Dimension Width (5 sizes 90, 80, 76, 70, 60mm) × Height 70mm
