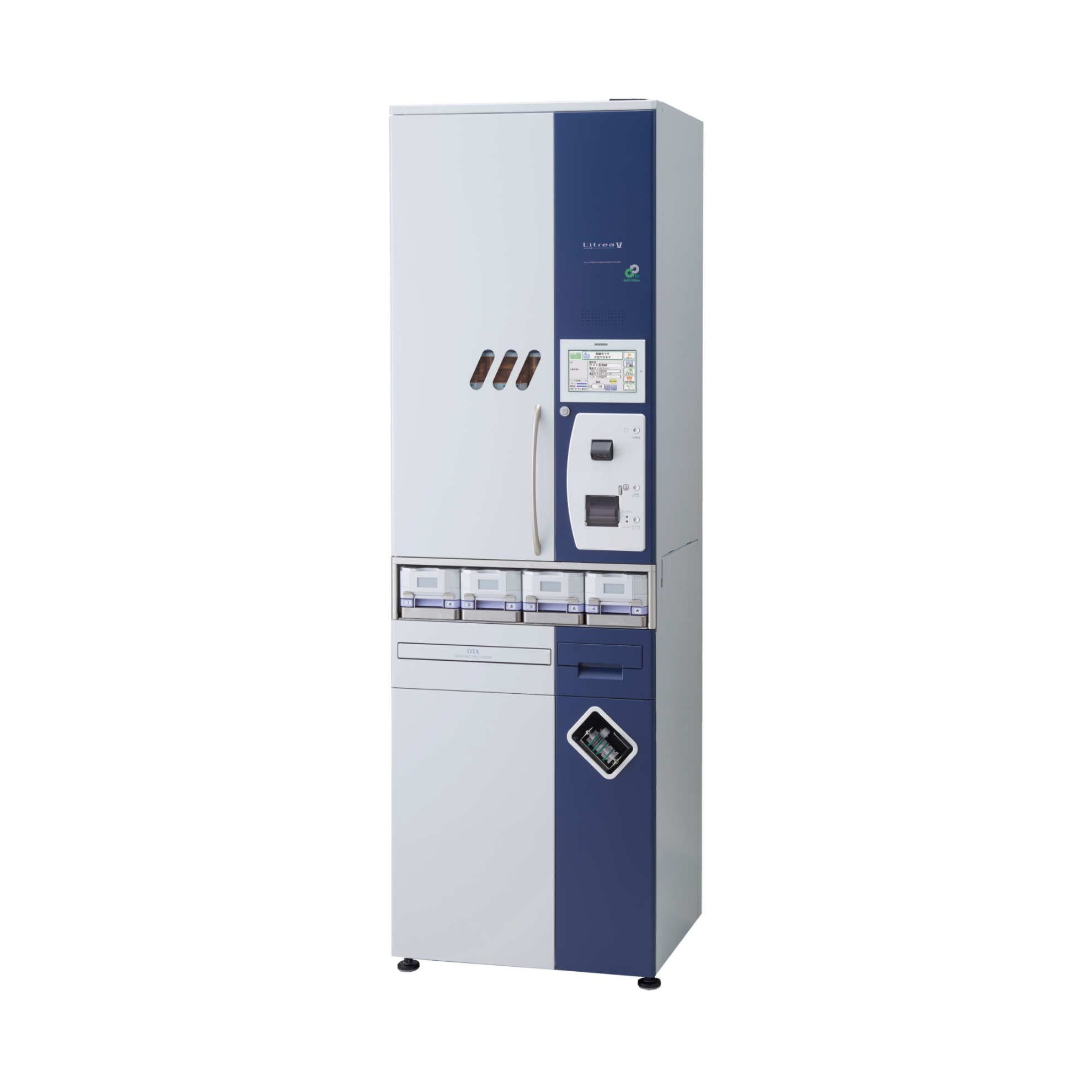

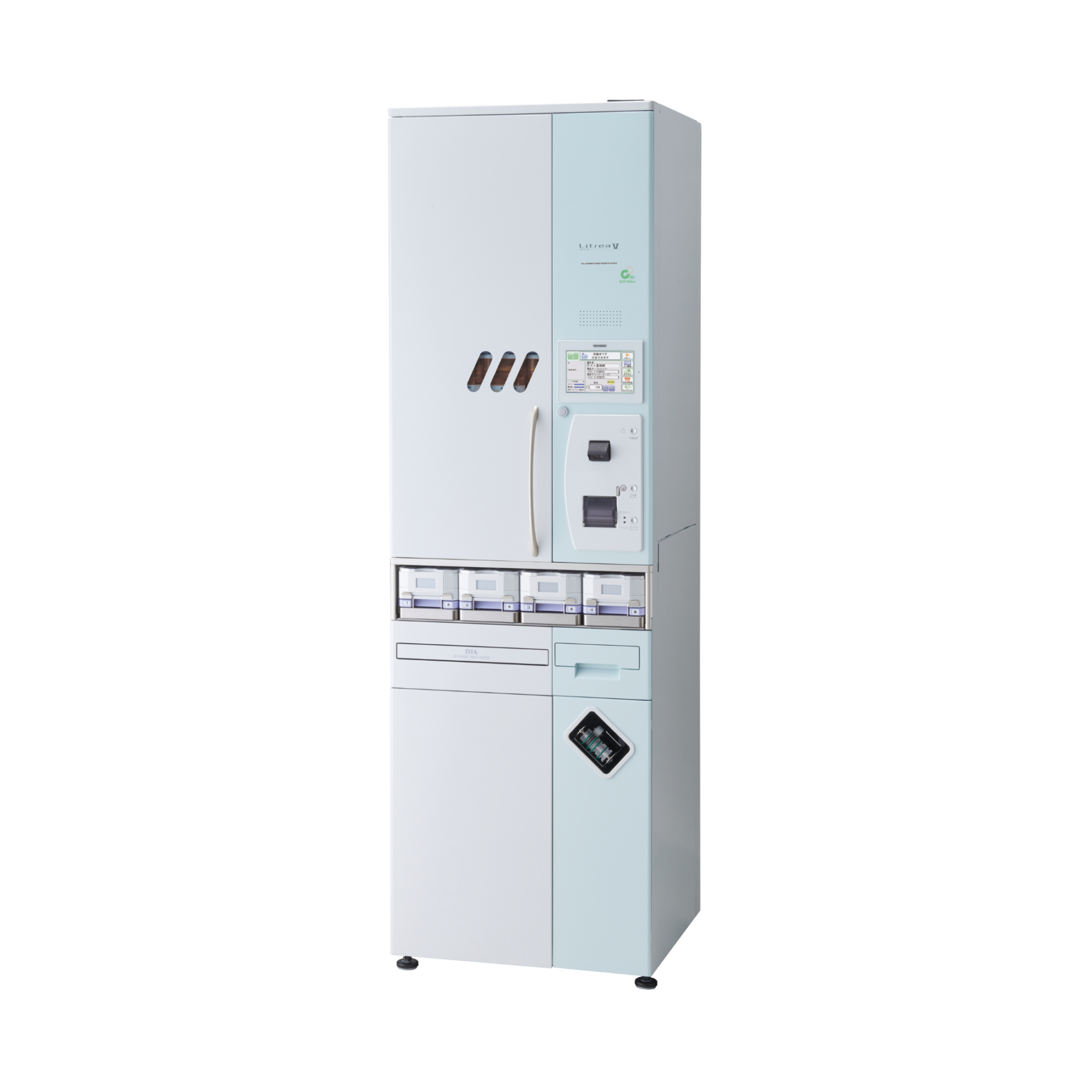

Fully-Automatic Compact Tablet Packaging Machine
LitreaⅤ
Intelligent Machine with Customizable
Functions Tailored to Your Needs
Features

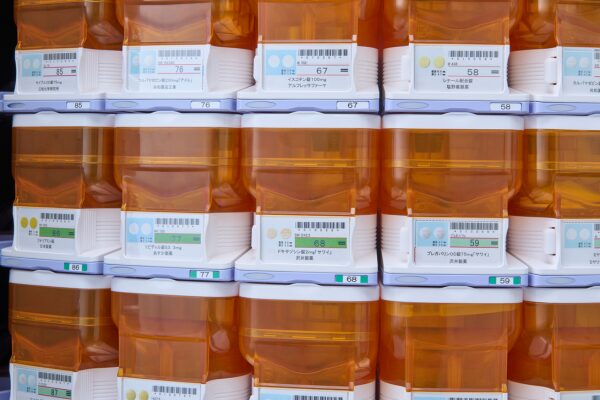

Equipped with Variable Tablet Cassettes that Allow you to Change Loaded Medications
Featuring a combined calibration unit and variable cassette (VC) system that allows you to change loaded medications on the spot. This new concept tablet cassette revolutionizes the effort and time needed to adopt generic drugs or change the medication forms.
Almighty Variable-type Cassette Equipped
Our universal cassette (UC) alternates the shape of the dispensing port according to the medication, allowing you to dispense a wide variety of medications. Operation is as simple as placing the medication into the UC in one step. The UC will only unlock when matches the GS1 data bar, preventing misfeeds and errors.
*Optional
The Industry’s Smallest Fully-Automatic Compact Tablet Packaging Machine
Four cassette configurations are available: the smallest with 144 cassettes, 172 cassettes with an attached slide unit, and both options are also available with UC (Universal Cassettes). You can choose the configuration that best fits your operational needs.
Spec
| Product Name | Fully-Automatic Compact Tablet Packaging Machine LitreaⅤ |
|---|---|
| Model | YS-TR-144FDXⅤ-VC、YS-TR-172FDXⅤ-VC |
| External Dimensions | 144FDXⅤ: 610mm (width)×627mm (depth)×1,968mm (height) 172FDXⅤ: 775mm (width)×627mm (depth)×1,968mm (height) |
| Weight | 144FDXⅤ: Approx. 250kg 172FDXⅤ: Approx. 330kg *Not including the tablet and UC cassettes |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 860VA(Max.) *Including a service outlet for PCs |
| Number of Cassettes | 144FDXⅤ: 64×M-type, 64×SS-type, 16×SSS-type 172FDXⅤ: 92×M-type, 64×SS-type, 16×SSS-type |
| Number of Manual Dosing Tablet Squares (Cells) | 48 tablets/time |
| Dispensing Speed | 60 packages/min. (Max.) |
| Single Package Dimension | Width (5 sizes 90, 80, 76, 70, 60mm) × Height 70mm |
User Reports
Here are some examples of our customers using this products.
Please take a look at their voices about the attractiveness and possibilities of our products.
