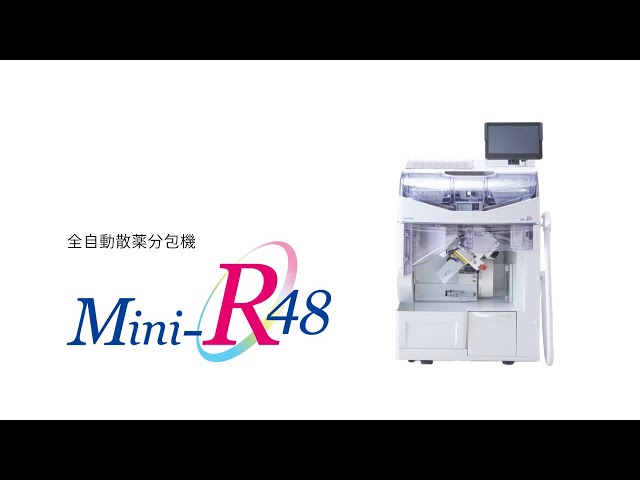

Fully-Automatic Powder Drug Packaging Machine
Mini-R48
Sophisticated Design and Functionality Woven into an Ultra-Compact, Single Disk Model
Features
The Smallest Disc-type Packaging Machine in the Industry
At only 69.5 cm wide, this disc-type packager is easy to install in the smallest of spaces. The single disc holds a maximum of 48 packages, delivering impressive capacity despite its compact space-saving profile. Sleek, minimalist design for easy cleaning.

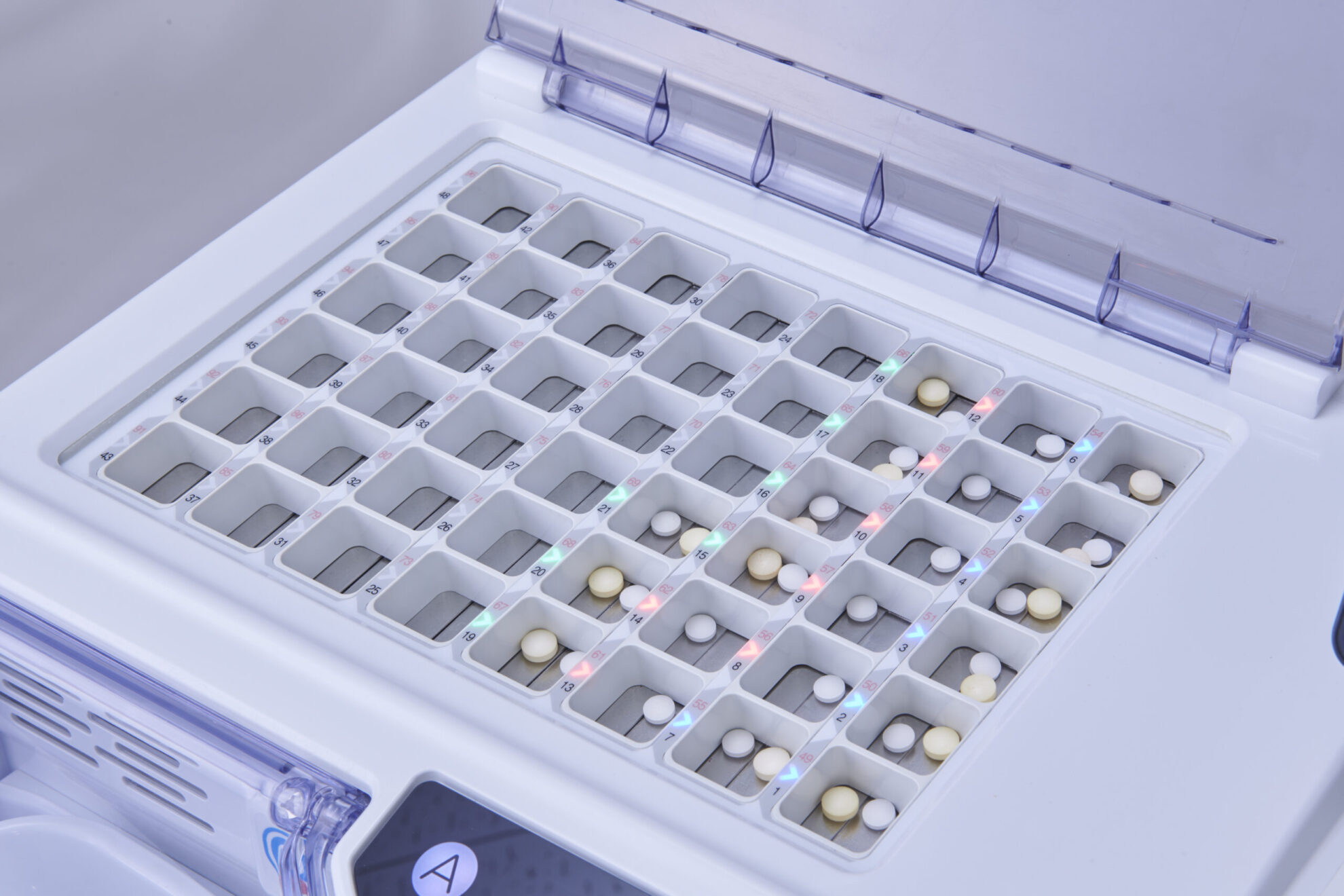

Six-color LED Guides for Added Safety
Display color-coded guides in six color variations (green, blue, red, yellow, purple, and light blue) on manual dose dispensing squares (cells) for each medication or application. At a glance, you’ll know which square to dispense the next tablet into, thereby increasing both safety and efficiency.
*Optional

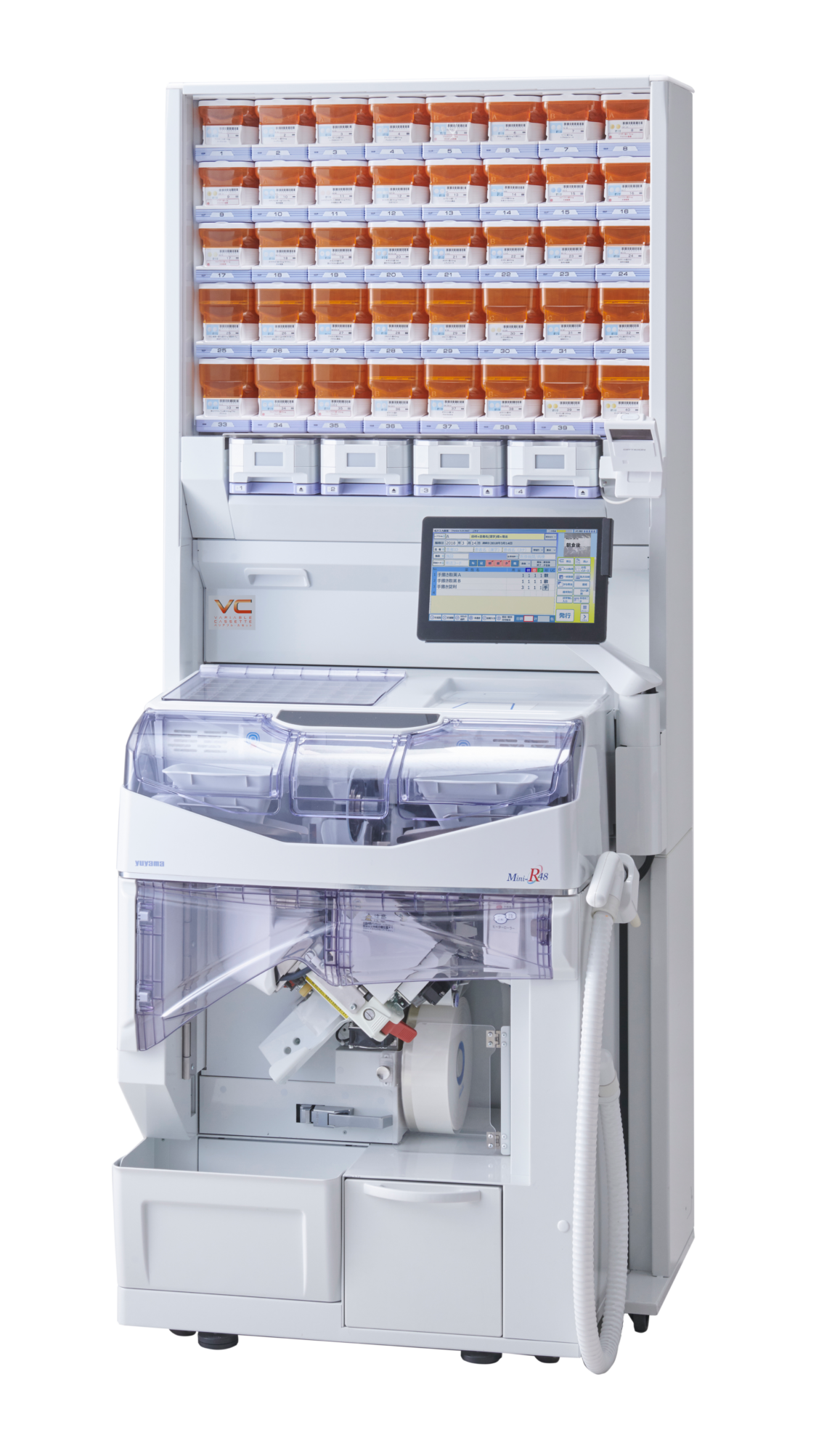

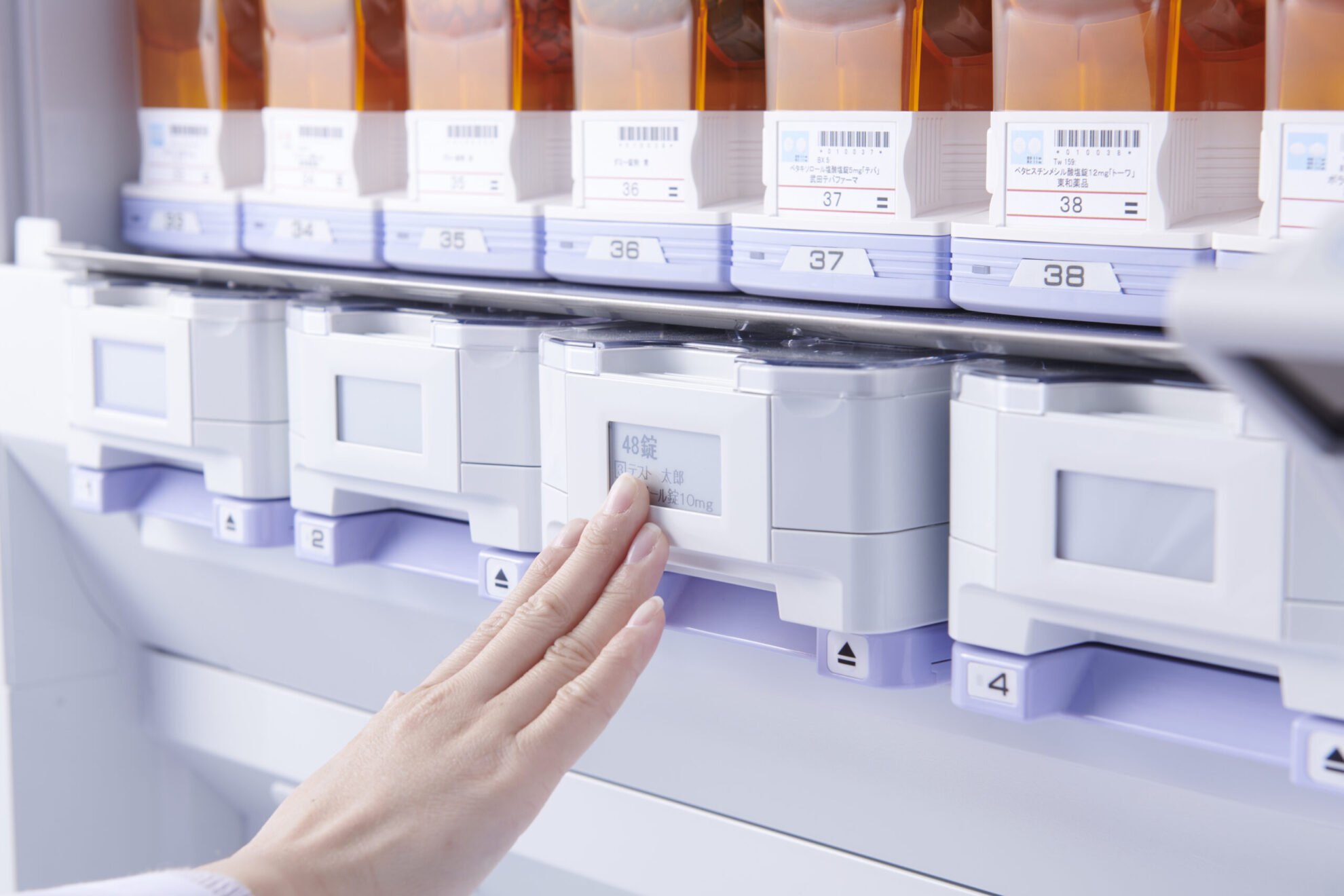

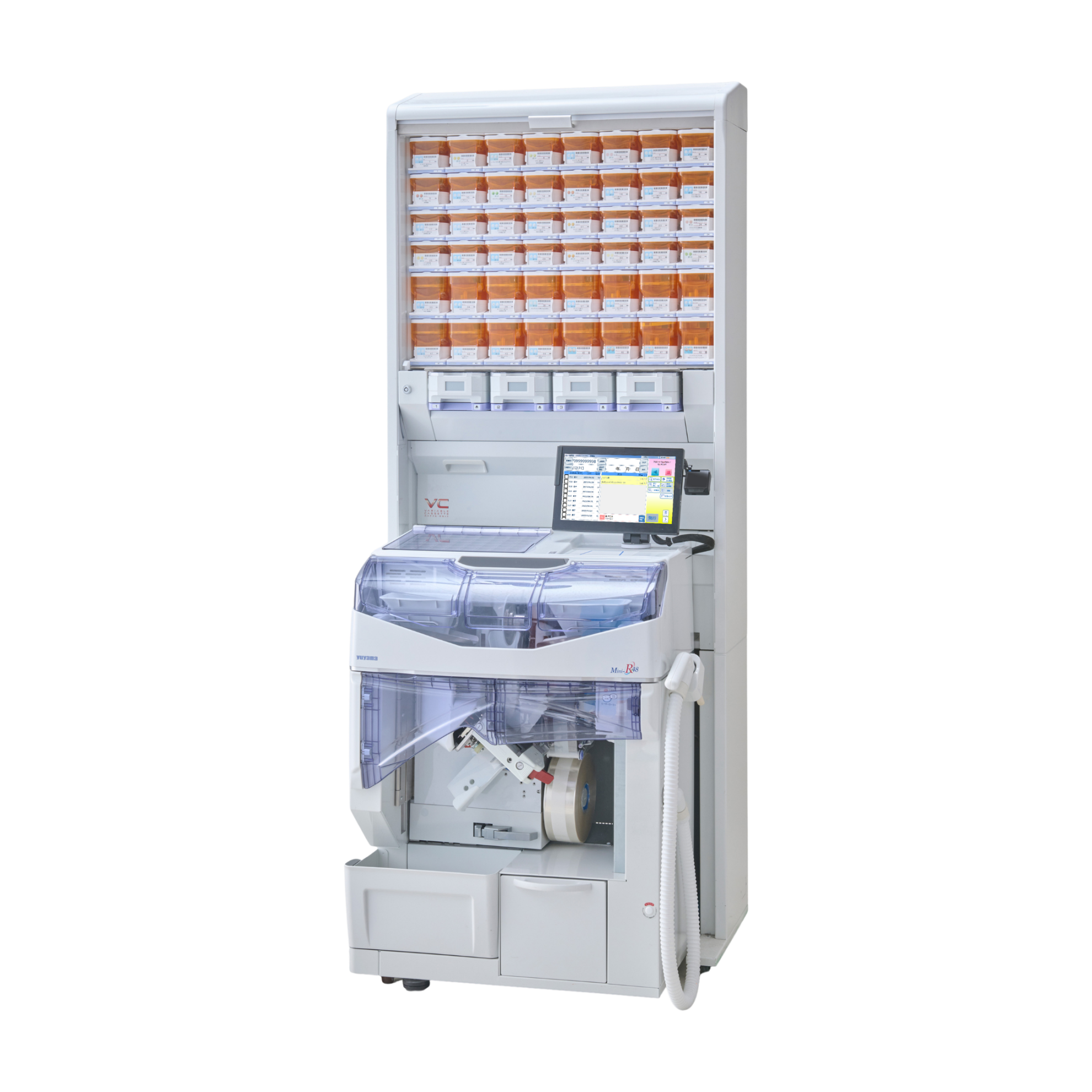

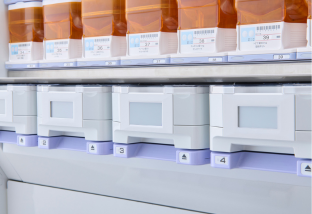

Four Tablet Dispensing Cassette Storage Units with 11 Patterns
Features a tablet cassette mechanism which can be mounted to the body of the Mini-R48 for convenient single-dose packaging of long-term prescription medications and storage of powder medication cassettes. Available in 11 different cassette variations. Cassettes can also be retrofitted to the main unit to match your work style.
*Optional
Spec
| Product Name | Mini-R48 Fully-Automatic Powder Drug Packaging Machine |
|---|---|
| Model | YS-48MR |
| External Dimensions | 695mm (width)×430mm (depth)×943mm (height) *753mm (width)×445mm (depth) with cleaning nozzle compartment included |
| Weight | Approx. 110kg |
| Power Supply | AC100V±10V (50/60Hz) |
| Power Consumption | 900VA(Max.)/1,000VA(Max.)(with tablet cassette) |
| Number of Packages | Powdered medications: 1 to 48 packages Tablets: 1 to 384 packages |
| Number of Manual Dosing Tablet Squares (Cells) | 48 tablets/time |
| Dispensing Speed | 56, 51, 45, 40, 35, 23 packages/min. (6-step changeover) |
| Single Package Dimension | Width (5 sizes 90, 80, 76, 70, 60mm) × Height 70mm |
