Electronic Balance-Integrated Inspection System
OnedyEX2
A Inspection System that Works Like an Evolved Balance
Features
PC Ffunction and Eelectronic Balance in Oone

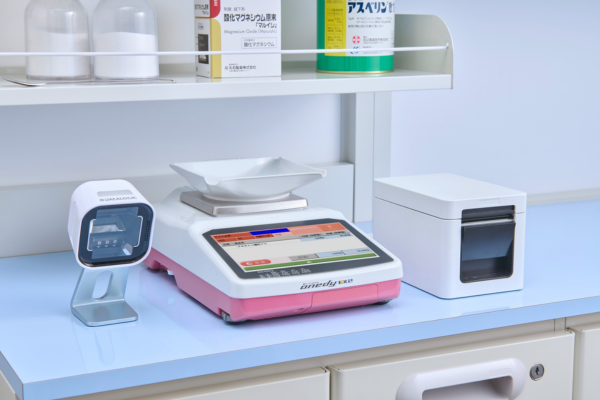

The onedyEX2 is an electronic balance that integrates PC functions necessary for dispensing; such as inspection function, filling check function, statistics and report output function, and more. With no need to install a PC in addition to the electronic balance, it is ideal for facilities with limited space.
Carefully Checks Regular and High Doses
The mother master makes it possible to check the upper and lower limits of typical amounts and shortages, as well as the maximum amount to be dispensed. An error message is displayed along with an audible warning if a weighing is performed out of range, allowing for a safe weighing environment.
Automatic Powder Medication Weighing Machine that can be Retrofitted.
By retrofitting the onedyEX2 with an automatic powder medication weighing machine, it can be used as an Integrated Automatic Powder Medication Weighing and Inspection System Auto Onedy-zero, in which weighing is completed by simply attaching a dispensing cassette.
Spec
| Product Name | OnedyEX2 Electronic Balance-Integrated Inspection System |
|---|---|
| Model | RCS-620DⅡ |
| Accuracy Class | Class II |
| Model Approval Number | Model no. D1314 |
| External Dimensions | Main unit: 195mm (width)×348mm (depth)×95mm (height) *Windshield hood equipped: 204mm (W) x 178mm (H) Barcode reader: 76mm (width)×70mm (depth)×139.5mm (height) Journal printer: 108mm (width)×165mm (depth)×108mm (height) |
| Weight | Approx. 4.0kg (main unit only) |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 76VA(Max.) |
| Display | 7-inch wide TFT color LCD panel |
| Scale Interval Value (readability)/Weighing Capacity | 0.1g・620g/0.01g・610g *Includes readability extension features. |
| Check Function | Regular amount (regular amount limit and extreme amount settings available), blending change, and filling |
