Fully-Automatic Tablet Packaging Machine
PROUD

A Tablet Packager
that Maximizes Patient-centric Healthcare

Features

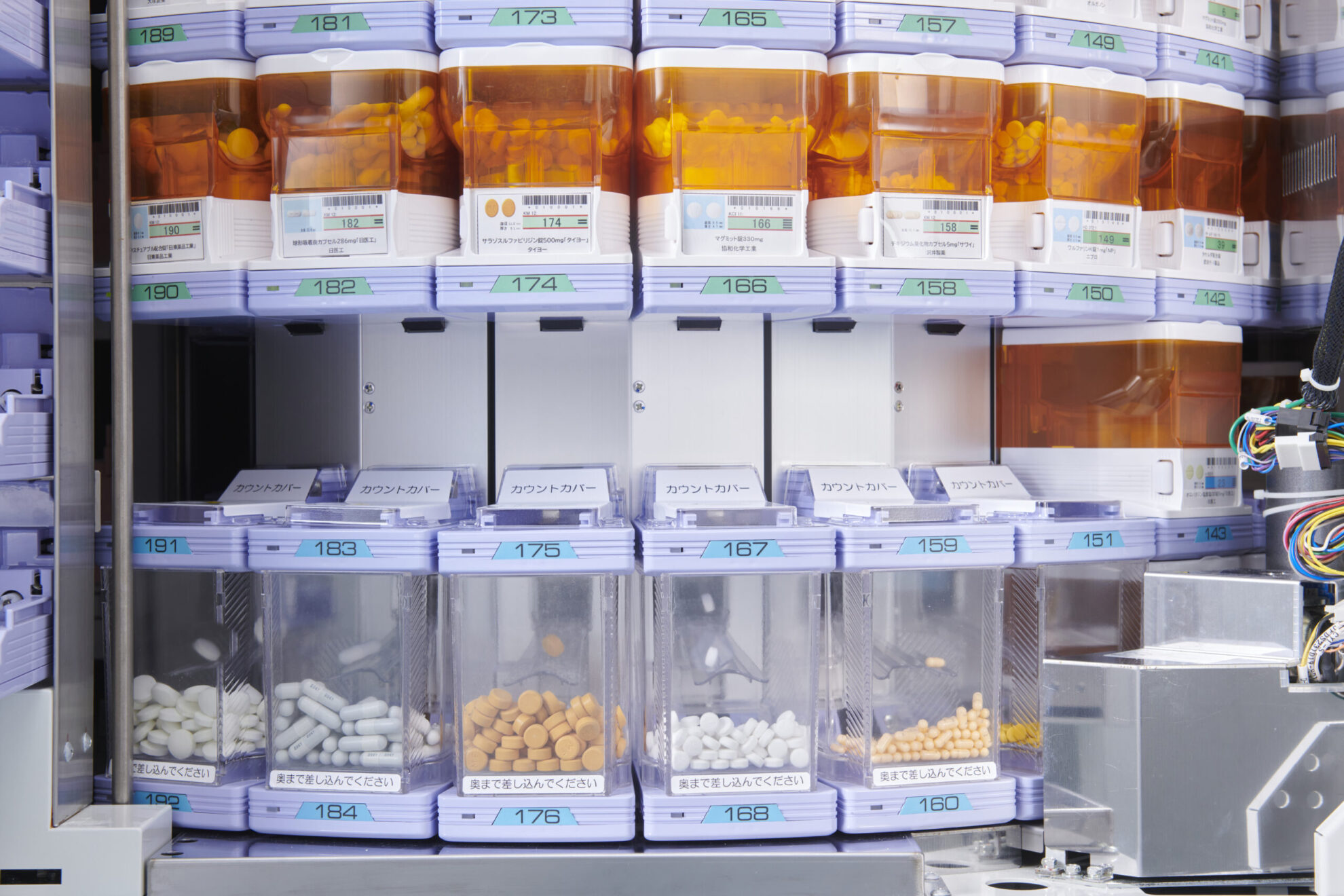

Equipped with Advanced Cassettes

PROUD is equipped with variable cassettes (VC) and universal cassettes (UC) to eliminate manual tablet dispensing, freeing you from tedious manual tasks and minimizing human dispensing errors.
* UC is optional

Tablet Counting Function Reduces the Workload of Inventory Control

PROUD is equipped with a tablet counting function as standard feature for counting the number of remaining tablets in cassettes. Registering the tablet numbers helps you to maintain strict inventory control and reduce the workload of inventory management.

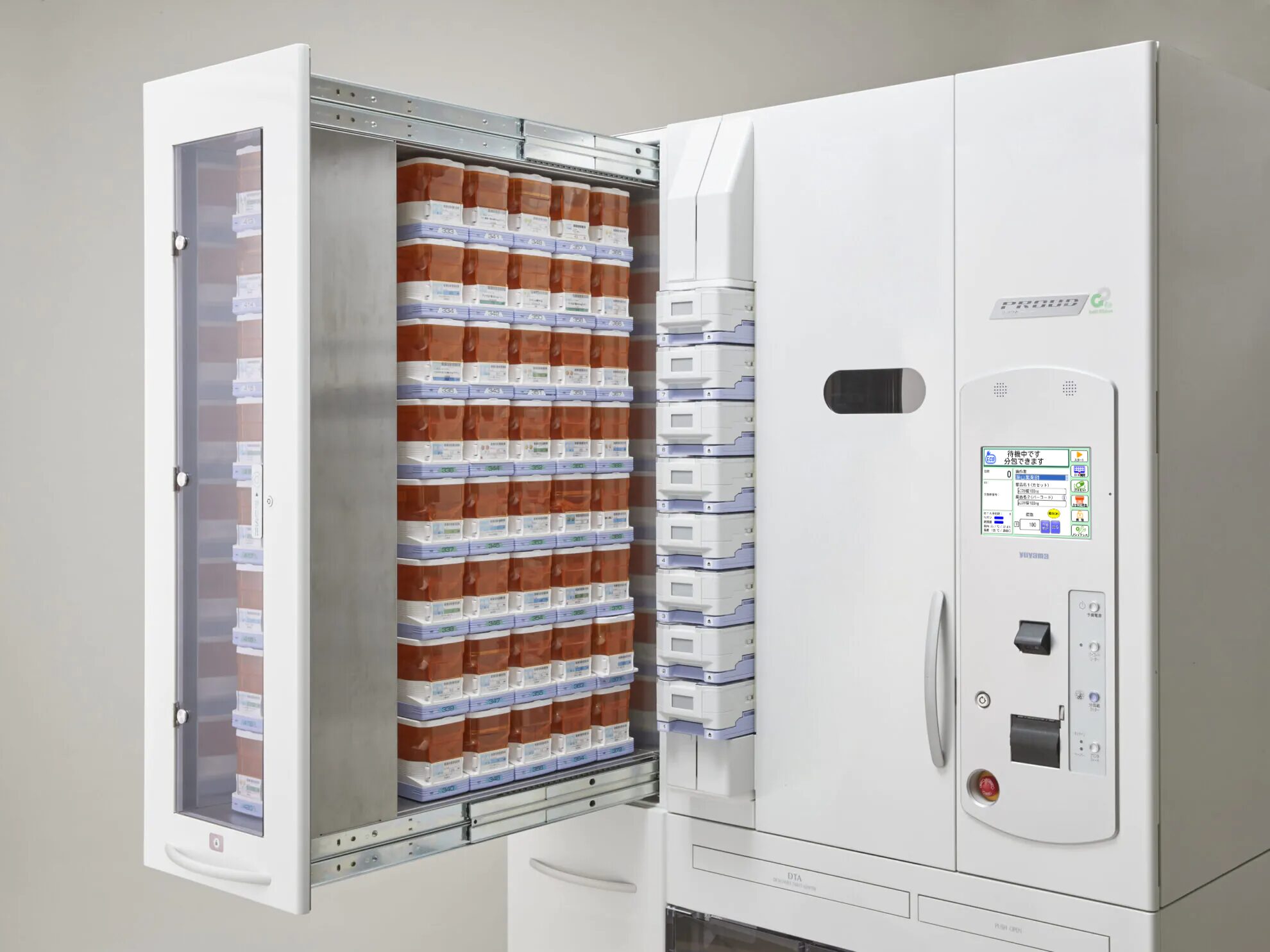

Choose the Number of Cassette According to Your Needs

PROUD comes in six options for cassette numbers (200, 264, 304, 332, 420, and 520 cassettes) and three options for the number of UC cassette (none, 4, and 8 cassettes). This allows you to select the perfect arrangement for your needs.
*UC is optional
*520 PROUD does not accommodate UCs.

Spec

Product Name	PROUD Fully-Automatic Tablet Packaging Machine
Model	YS-TR-200FDSⅡ、YS-TR-264FDSⅡ、YS-TR-304FDSⅡ、YS-TR-332FDSⅡ、YS-TR-420FDSⅡ、YS-TR-520FDSⅡ
External Dimensions	200/264/304/332FDSⅡ: 890mm (width)×930mm (depth)×1,998mm (height) 420FDSⅡ: 1,291mm (width)×930mm (depth)×1,998mm (height) 520FDSⅡ: 1,780mm (width)×930mm (depth)×1,998mm (height) *+100mm (depth) with UCs
Weight	Approx. 580kg *Not including the tablet and UC cassettes
Power Supply	AC100V±10(50Hz/60Hz)
Power Consumption	200/264/304/332FDSⅡ:800VA(Max.) 420FDSⅡ:1,000VA(Max.) 520FDSⅡ:1,500VA(Max.)
Number of Cassettes	200 FDSⅡ: M-type: 160, SS-type: 40 264 FDSⅡ: M-type: 264 304 FDSⅡ: M-type: 304 332 FDSⅡ: M-type: 192, SS-type: 140 420 FDSⅡ: M-type: 280, SS-type: 140 520 FDSⅡ: L-type: 72, LM-type: 448
Number of Manual Dosing Tablet Squares (Cells)	63 tablets/time
Dispensing Speed	60 packages/min. (Max.)
Single Package Dimension	Width (5 sizes 90, 80, 76, 70, 60mm) × Height 70mm

Dispensing (tablet) packaging machine
