Ultra Compact Packaging Machine
Reno-S

Tailor the Layout to Your Needs
A Miniature Machine that Defies Conventions

Features

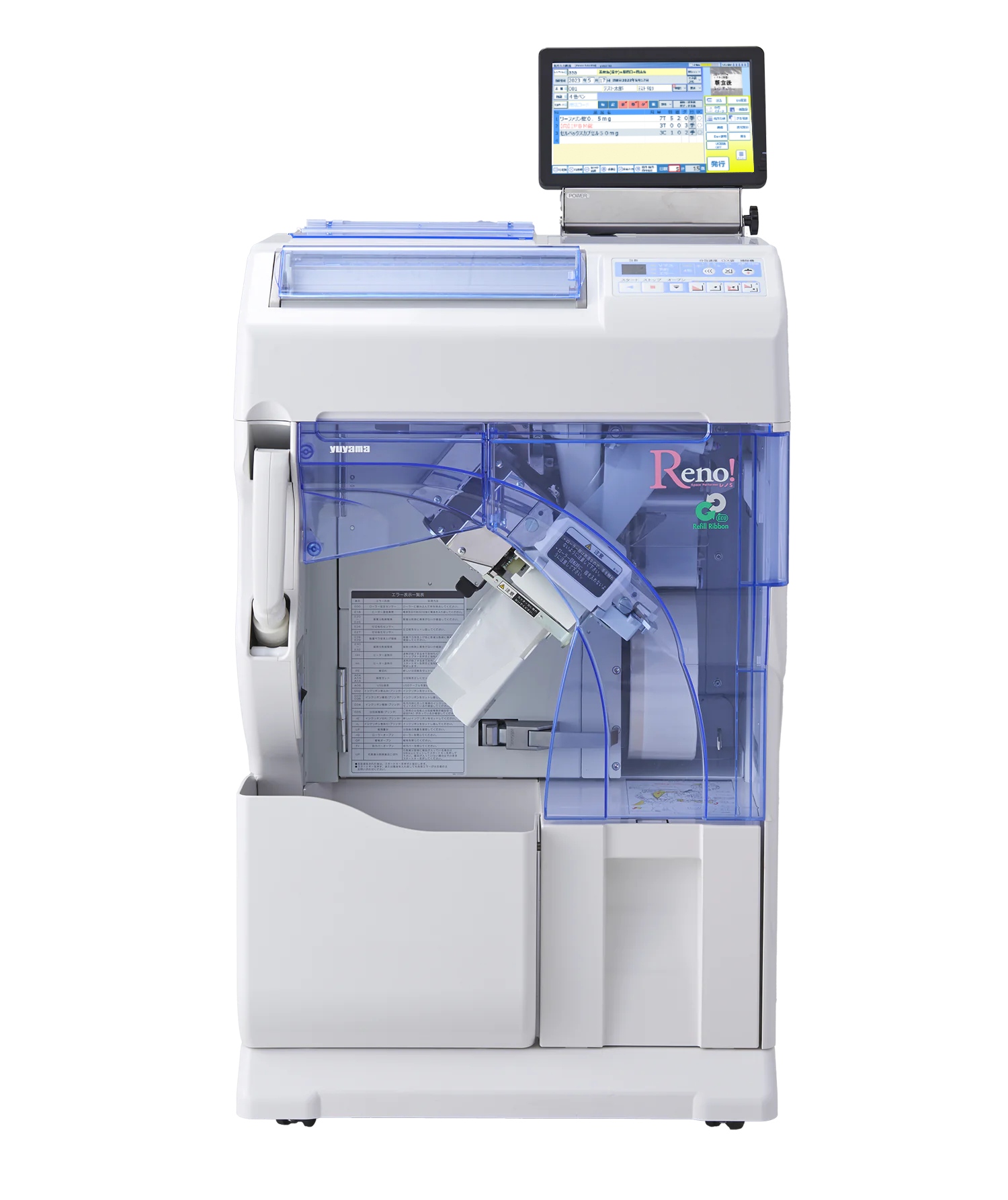

Visually Appealing and Compact

With a total width of only 56cm, the Reno-S can be used as a main dispensing unit or as an additional sub-unit during peak times. Its compact size makes it easy to coordinate placement around other dispensing equipment.

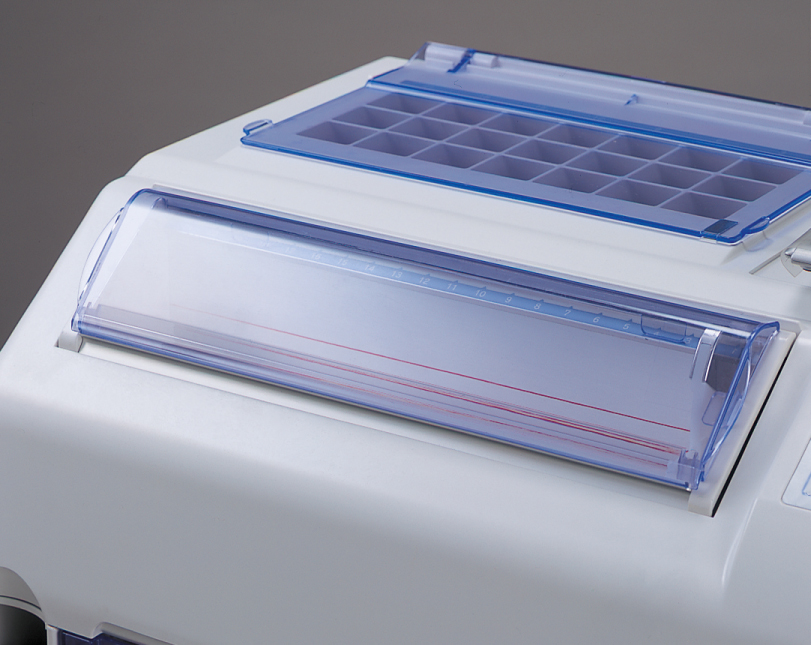

Equal Distribution of Powder Medication on the V-mass Line

The unique red line enables simple, stable, and equal distribution of powders along the V-mass line instead of relying on experience and intuition when measuring volume mass. Comes with a V-mass cover to guard against dust and foreign matter.

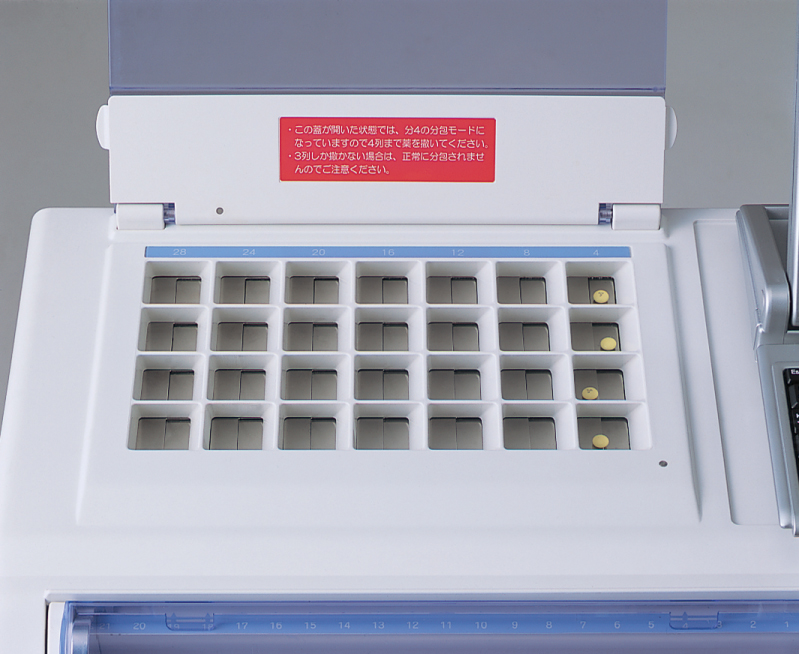

Perfect Fit Even for Three-tablet or Four-tablet per Day Doses

Manual dose dispensing with a variable three- or four-row system. The movement of the lower dispensing apparatus is automatically controlled (e.g. for three-tablet per day or four-tablet per day doses), in accordance with the opening and closing of the lid at the back of the feeder, to match the dispensing applications. This innovative feature facilitates smoother and faster operations with a maximum of 28 tablets for each dispense (one time).

Spec

Product Name Reno-S Ultra Compact Packaging Machine
Model CPX-ⅢS
External Dimensions 560mm (width)×392mm (depth)×936mm (height)
*635mm (width) with PX Tab, 445mm (depth) with PB-8 Tab
Weight Approx. 53kg*
*60kg with the PX Tab equipped
Power Supply AC100V±10V(50/60Hz)
Power Consumption 850VA(Max.)
Number of Packages Powdered medications: 1 to 21 packages
Tablets: 1 to 21 packages (up to 28 for four-tablet per day doses only)
Number of Manual Dosing Tablet Squares (Cells) 28 tablets/time
Dispensing Speed 43, 36, 30 packages/min. (can be change modes at the switch.)
Single Package Dimension Width 76mm × Height 70mm
