Fully-Automatic PTP Sheet Dispensing Device
Robo-Pick II

Fully Automated Dispensing of PTP Sheets Allows More Time for Meeting Patients

Features

Accurate Dispensing Down to the Fraction

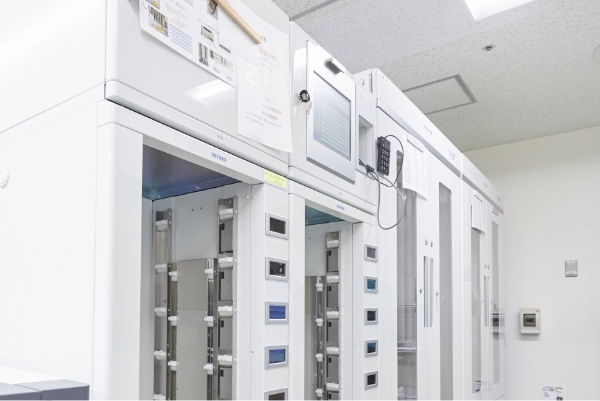

Robo-Pick II is a fully automatic PTP sheet dispensing system that helps to save on labor and give you more time to spend with your patients. Available in not only in 2-row and 10-tablet PTP sheets, but also in weekly sheets, which are on the rise. The machine sorts each drug into four separate trays for accurate dispensing.

Saves on Labor and Frequency When Refilling

Uses a PTP Sheet Combination Filling Method wherein PTP sheets can be filled simply by removing medicine from its box and removing the strip. A large capacity of approximately 60 sheets can also be set in a single cassette, and frequently used drugs can be dispensed from multiple cassettes, subsequently reducing how often you need to refill.

robopick IIVC: On-the-Spot Medication Changes Made Easy

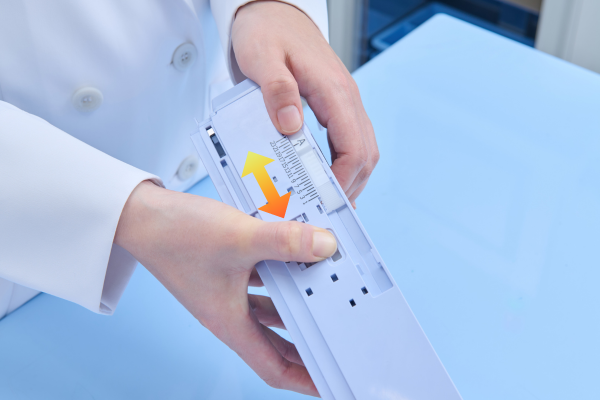

Introducing the robopick IIVC cassette, which allows you to easily change the loaded medications yourself — ideal for times when switching to generic drugs or responding to sudden changes in formulary due to drug shortages.By simply unlocking the cassette’s lock lever and adjusting sliders A through D to the designated settings, you can complete the change of loaded medications in just a few steps.Loading the most appropriate medications into the cassette helps maximize the operating efficiency of the robo-pick II.

Spec

Product Name Robo-Pick II Fully-Automatic PTP Sheet Dispensing Device
Model Main unit: YS-PTPII-130
Tray stacking and supply equipment: YS-PTPII-SOP
External Dimensions Line total: 1,598mm (width)×630mm (depth)×1,980mm (height)
Main Unit: 1,145mm (width)×630mm (depth)×1,980mm (height)
Stacking supply equipment: 450mm (width)×630mm (depth)×1,980mm (height)
Weight Main Unit: Single Robot, Approx. 410kg (Not including cassettes)
Double Robots, Approx. 450kg (Not including cassettes)
Stacking supply equipment: Approx. 130kg (Not including trays)
Power Supply AC100V±10V(50/60Hz)
Power Consumption Minimum unit configuration: 1,450VA(Max.)
Number of Equipped Cassettes 130 cassettes/unit
Cassette Type Fixed cartridge: 10 Types (S1、S2、S3、M1、M2、M3、L1、L2、l3、LL3)
robopickIIVC: 3 Types(S1、M1、M2)
Number of Cassettes Installed and Stored 60 sheets (4.5mm thick when stacked)
*Storage sheet size: 79-128 mm (height) x 29-60 mm (width)
Number of Tray Refills Supply trays: Max. of 6
Complete trays: Max. of 4
Dispensing Speed Single robot: Top speed 117 sec. (4 drugs, 4 sheets + 2 tablets*2)
Double robot: Top speed 79 sec. (4 drugs, 4 sheets + 2 tablets*2)
Number of Units Connected Max. 10 units (Excluding stacking supply unit)
Dedicated Four Separate Trays Dimensions 338.5mm (width)×197mm (depth)×80mm (height)
