- Single-R93 III Fully-Automatic Powder Drug Packaging Machine

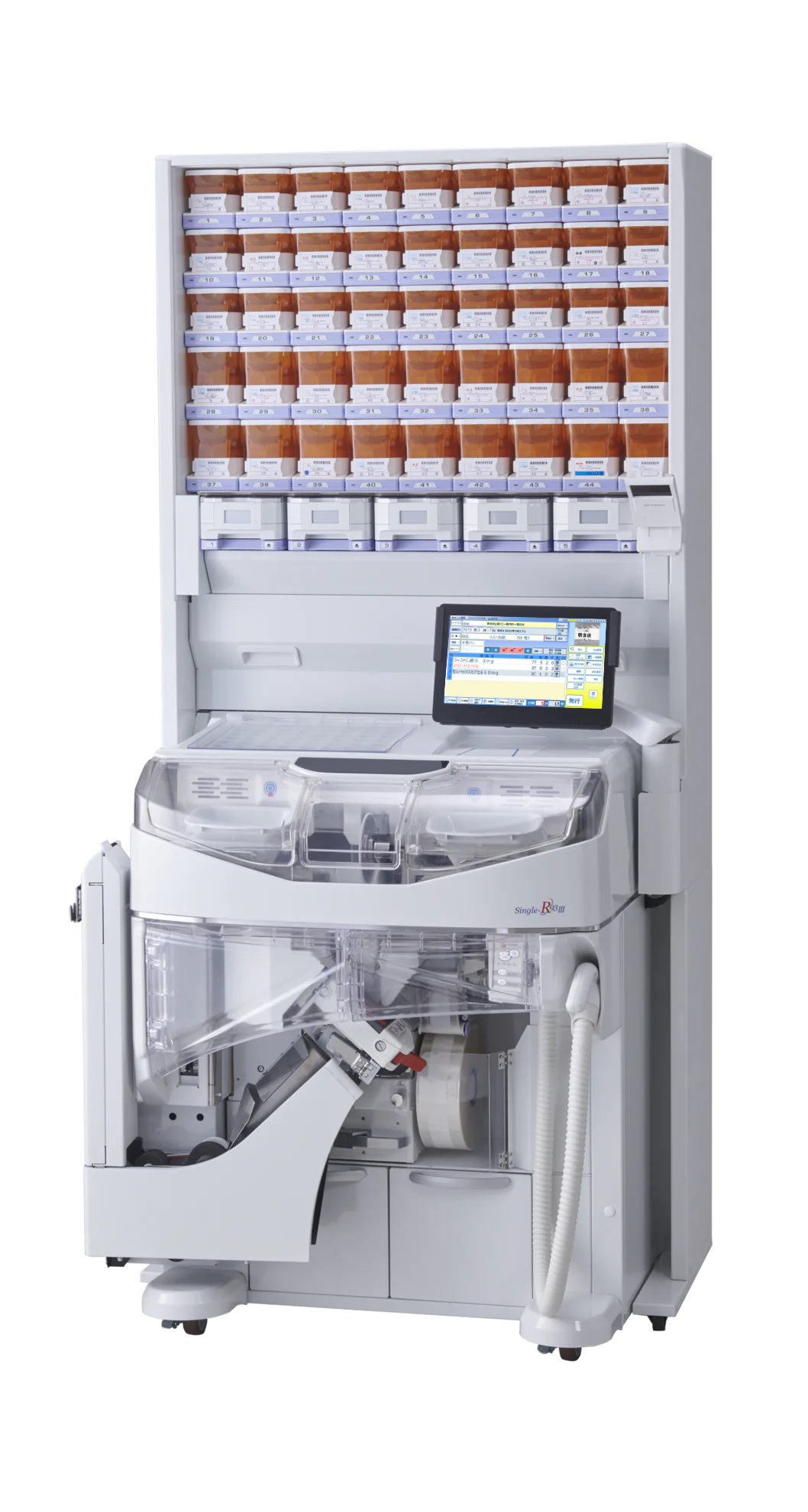

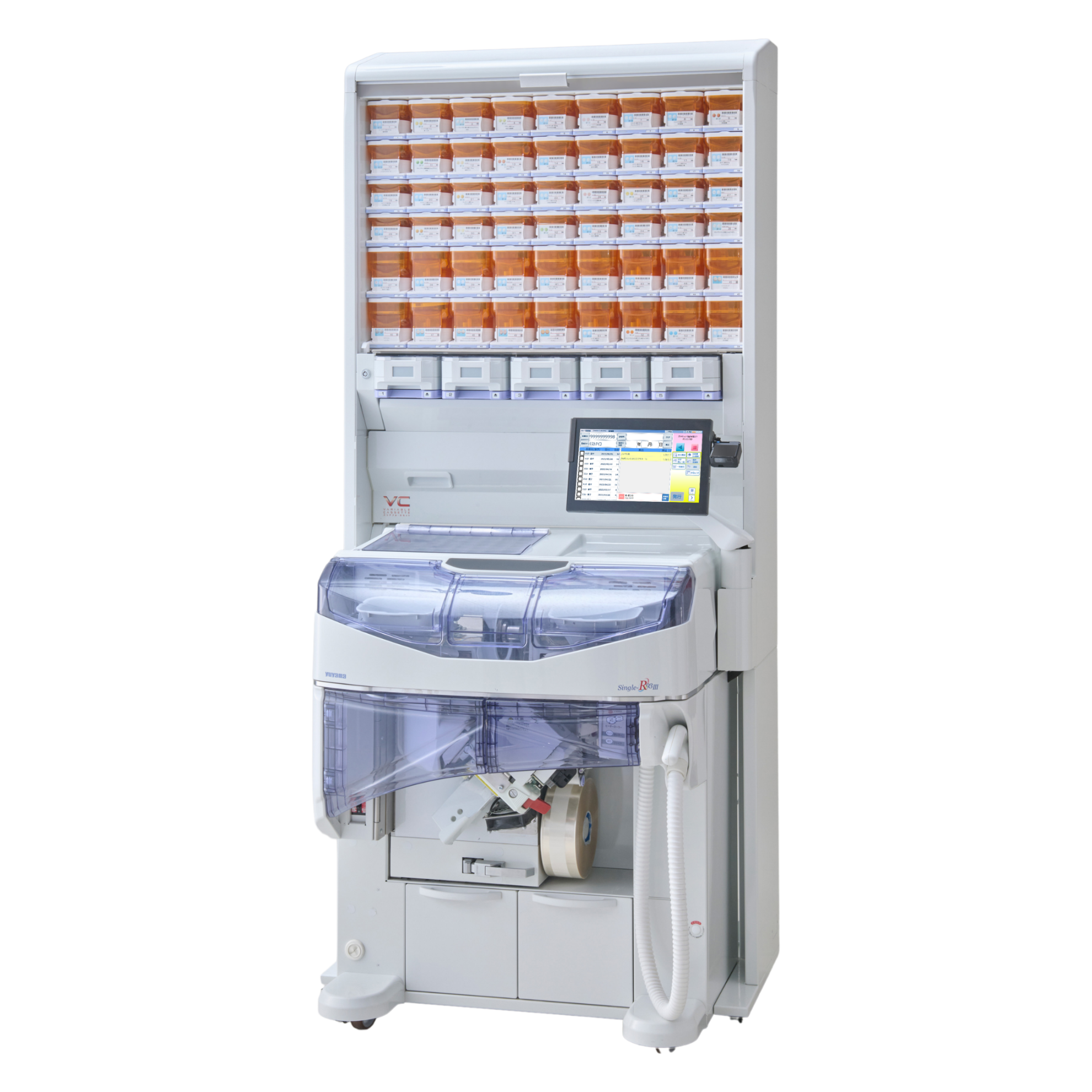

Fully-Automatic Powder Drug Packaging Machine
Single-RⅢ
Industry-leading Compactness
Elegantly Designed Single Disk Model
Features
The Industry’s Most Compact

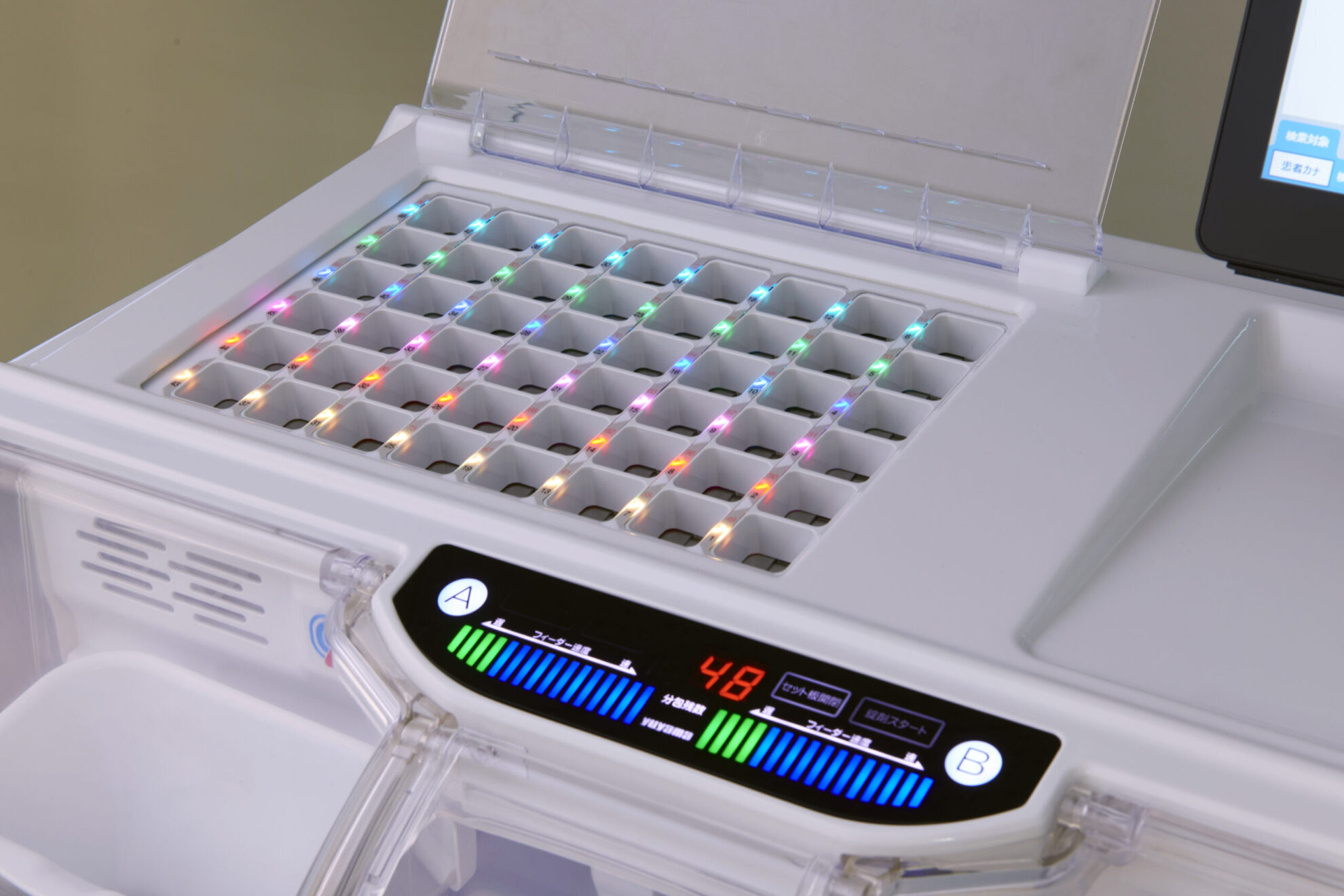

The Single-RⅢ III is the most compact of all packagers, with a width of only 76cm and an impressive maximum capacity of 135 packages. Despite its compact size, this machine is fully equipped with a six-color LED manual-dose dispensing guide and an easy-to-input operation screen for enhanced usability and human error prevention.
*The 135 packages model is optional. The 93 packages model is the standard configuration.
Features and Tools for Peace of Mind and Comfort in the Dispensary

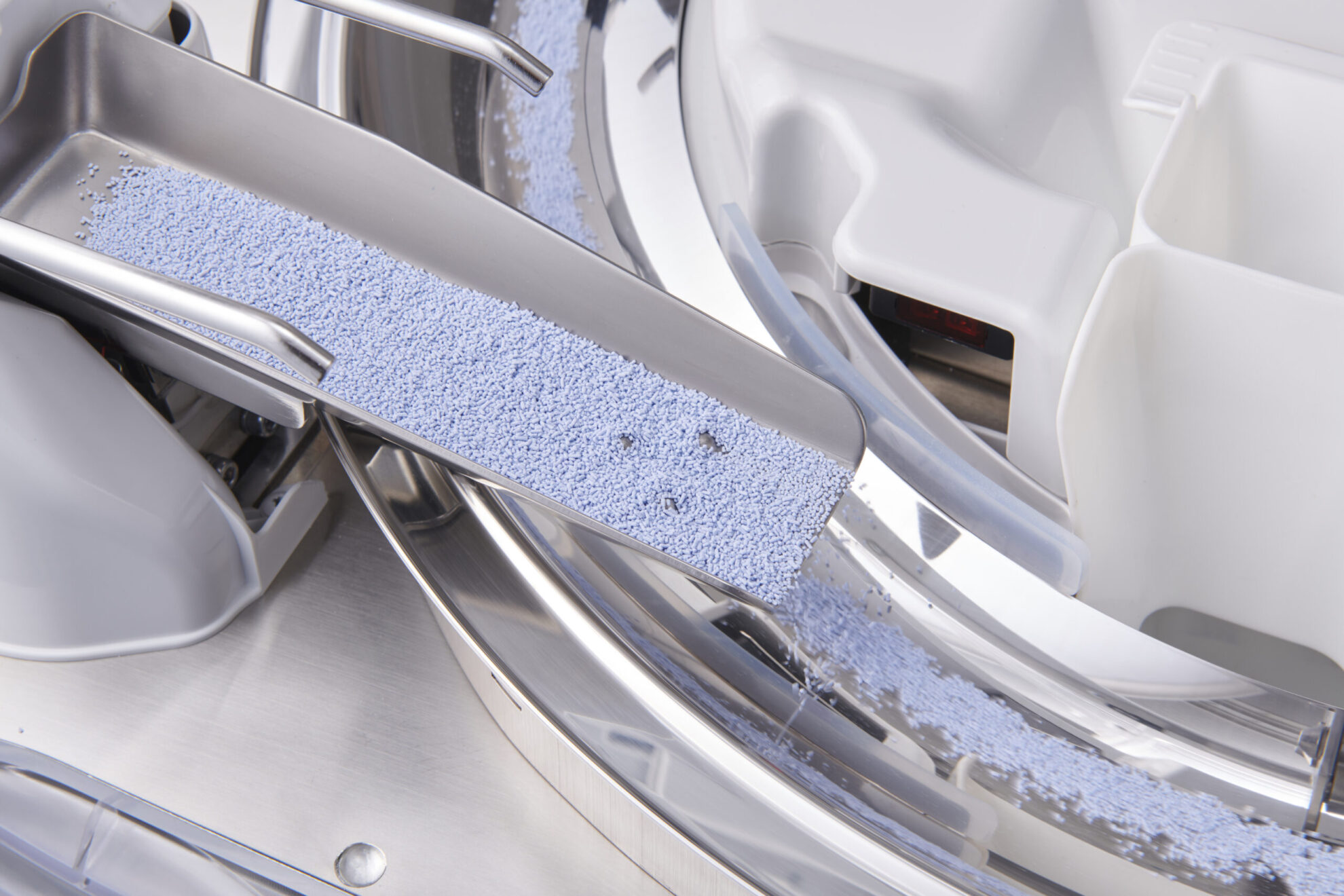

An auto-feeder with a smooth sliding action that automatically adjusts to the characteristics of each type of powder. The combined control projection ensures uniform distribution and sophisticated dispensing precision to minimize contamination risks.

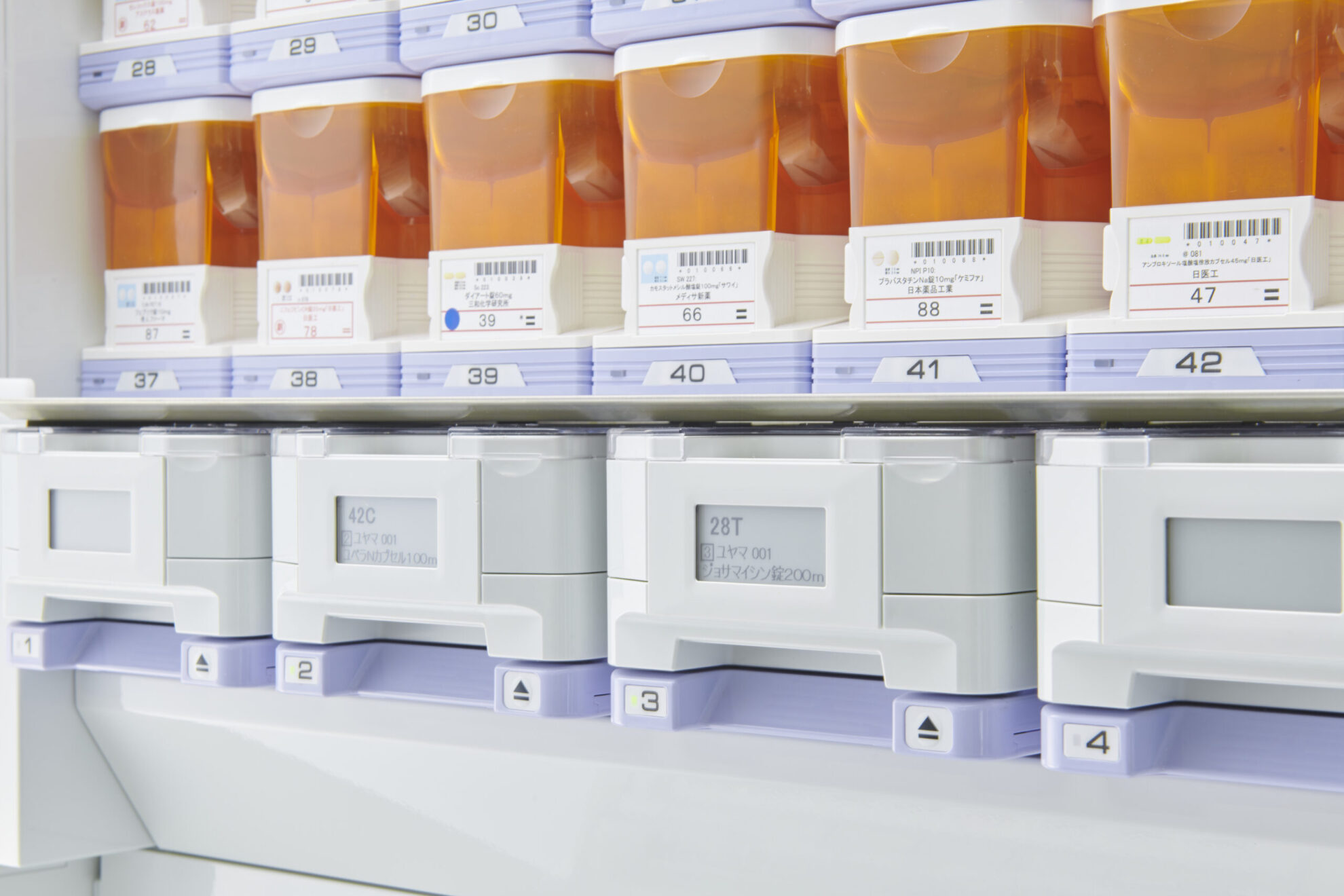

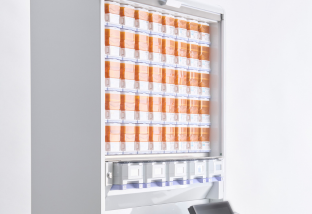

Five Tablet Dispensing Cassette Storage Units with 15 Patterns
Features a tablet cassette mechanism which can be mounted to the body of the Single-RⅢ for convenient single-dose packaging of long-term prescription medications and storage of powder medication cassettes. Available in 11 different cassette variations. Cassettes can also be retrofitted to the main unit to match your work style.
*Optional
Spec
| Product Name | Fully-Automatic Powder Drug Packaging Machine Single-RⅢ |
|---|---|
| Model | YS-SRⅢ |
| External Dimensions | 760mm (width)×600mm (depth)×950mm (height) |
| Weight | Approx. 120kg* *+7kg when mounted with a conveyor |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 1,300VA(Max.)/1,450VA(Max.)(with tablet cassette) |
| Number of Packages | Powdered medications: 1 to 93 packages (Standard-setting body) *Optionally supports 1 to 135 packages of loose medication. Tablets: 1 to 744 packages |
| Number of Manual Dosing Tablet Squares (Cells) | 48 tablets/time |
| Dispensing Speed | 56, 51, 45, 40, 35, 23 packages/min. (6-step changeover) |
| Single Package Dimension | Width (5 sizes 90, 80, 76, 70, 60mm) × Height 70mm |
User Reports
Here are some examples of our customers using this products.
Please take a look at their voices about the attractiveness and possibilities of our products.
