Packed-Tablet Inspection Machine
TabSight-S
Smooth Inspection of Large-Volume Packages with Speed and Stability
Features
Automatic Drug Identification Check of Divided Tablets

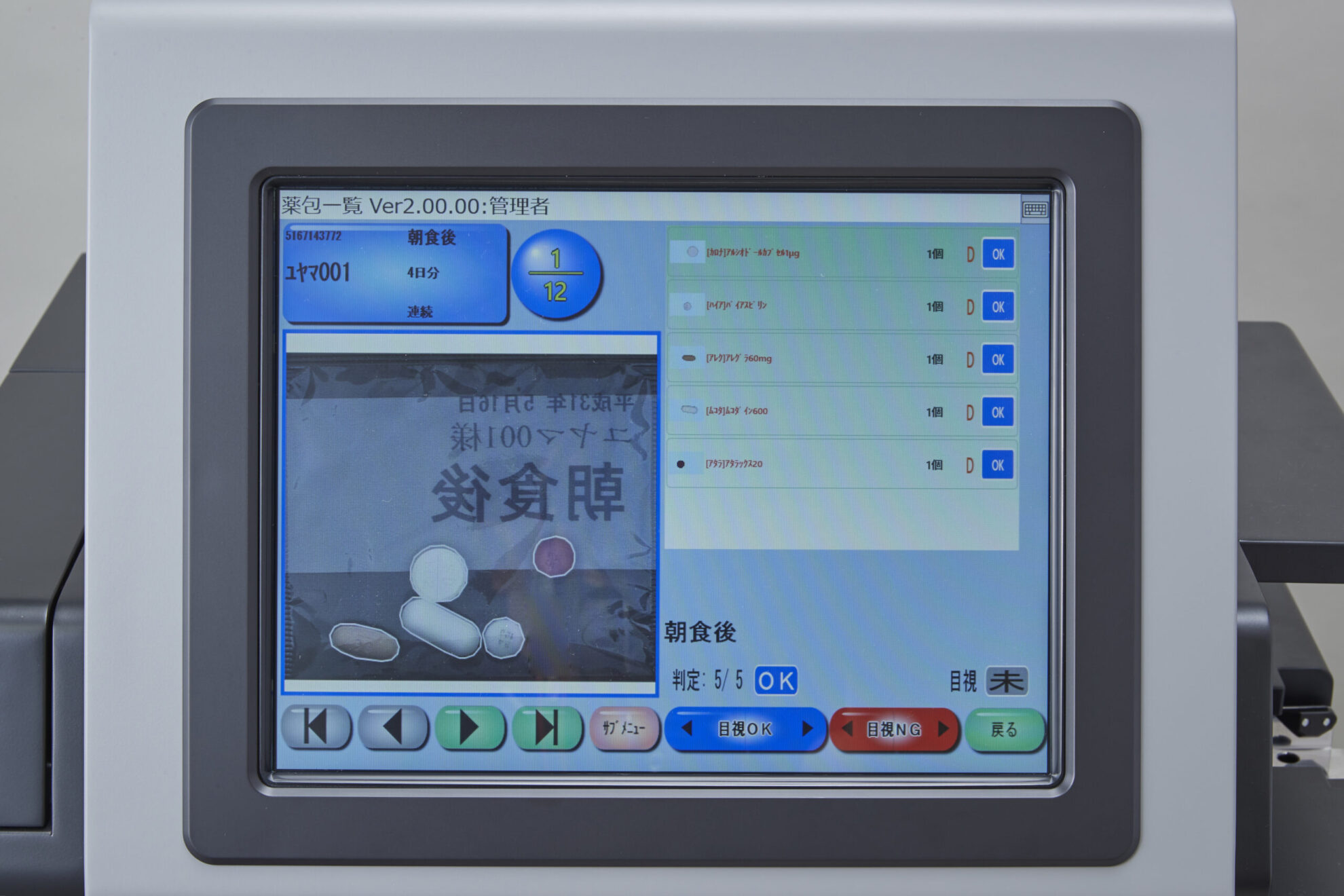

TabSight-S automatically identifies drugs based on three factors: quantity, shape, and color tone, using image capturing via sophisticated camera and image recognition technology. It also checks for foreign substances such as aluminum foil on PTP sheets, bringing peace of mind and comfort to the inspection process.
High-speed Checks that do not Interrupt Dispensing Operations
Capable of high-speed collation at approximately 1 second per package.

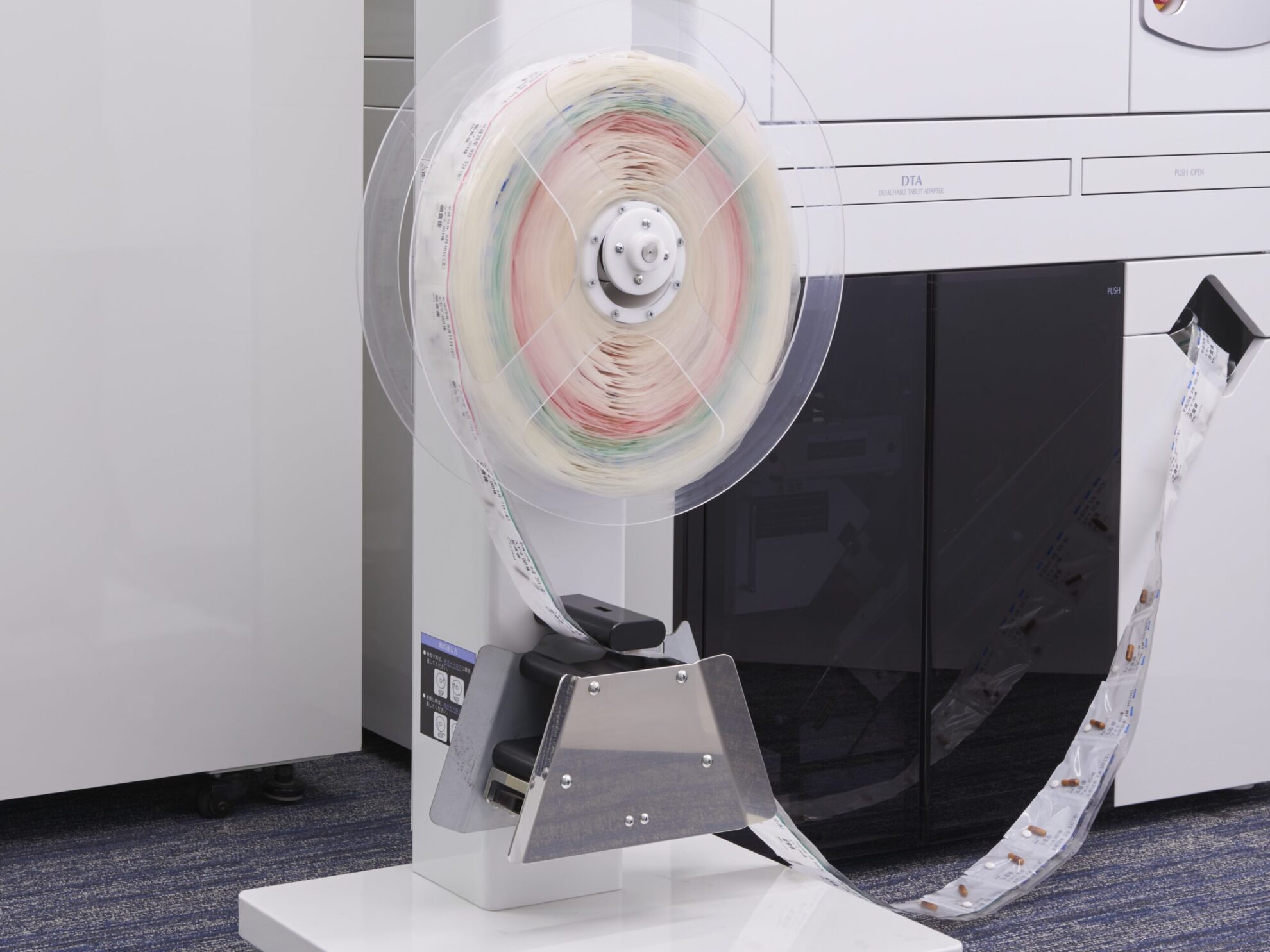

The use of an automatic winder (sold separately), which is useful for mass screening of long-term prescriptions, improves operational efficiency by automatically taking up the packaged medicines from Yuyama’s tablet packaging machine and inserting them directly into TabSight-S.
Supports Remote Inspection

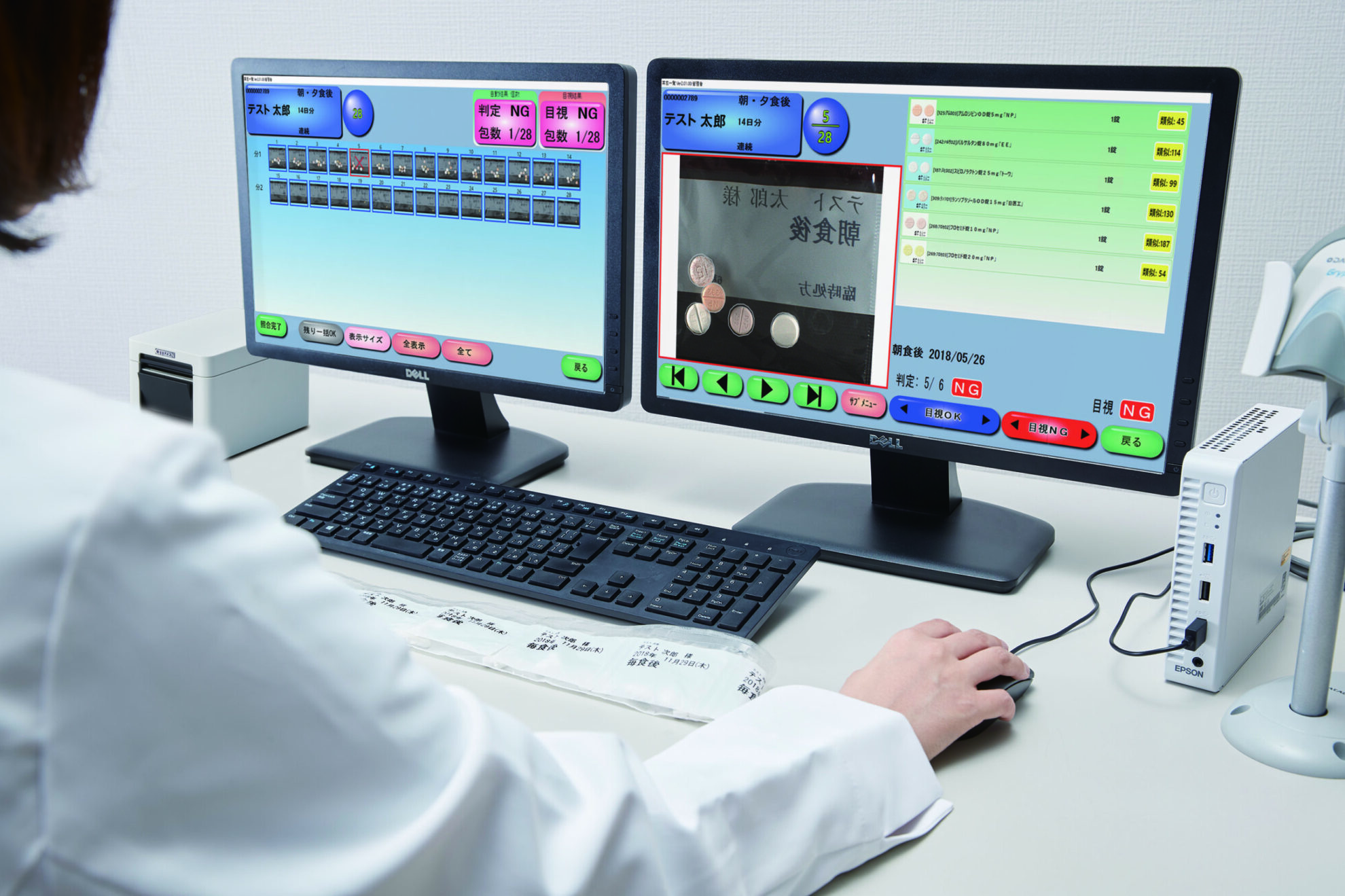

A separate monitor besides TabSight-S’s main unit can be used to perform post-photographic examination of tablets. After passing one package after another through the main unit, the contents of the verification can be called up via the bar code of the package at another location for remote inspection.
*Optional
Spec
| Product Name | TabSight-S Packed-Tablet Inspection Machine |
|---|---|
| Model | YS-TPMS-01 |
| External Dimensions | Main unit: 810mm (width)×510mm (depth)×515mm (height) When installed on the dedicated stand: 845mm (width)×645mm (depth)×1,355mm (height) |
| Weight | Main unit: Approx. 60kg Dedicated stand: Approx. 25kg |
| Power Supply | AC100V±10%(50/60Hz) *Requires two power outlets |
| Power Consumption | 300VA(MAX) |
| Verification Contents | Tablet quantity per package check, color/tone check, and shape check. |
| Evaluation Speed | High-speed mode: Approx. 1.0 sec per package Semi-high speed/standard mode: Approx. 1.2 secs per package. *In case of 5 tablets of 5 different types per package. *Speed times may vary from the above depending on the quantity and condition of tablets in a package. |
| Maximum Tablets per Package | 25 tablets of 25 different types (max.) *Tablets should not overlap or exceed than 30% to 40% of the total package volume. |
| Verification-Compatible Tablets | Tablets of 3mm×3mm or larger *Compatible with 1/2 tablets, 1/4 tablets and transparent medications. Non-compatible with powdered medications. |
| Compatible Medication Package Paper/Size | Dedicated TabSight cellophane-polyester 70W (double-folded) type plain/white band/solid white (name printing unavailable), 60-90mm wide. |
| Compatible Printing Ribbon | Black single-color ribbon |
| Option | Dedicated stand, remote inspection device etc. |
