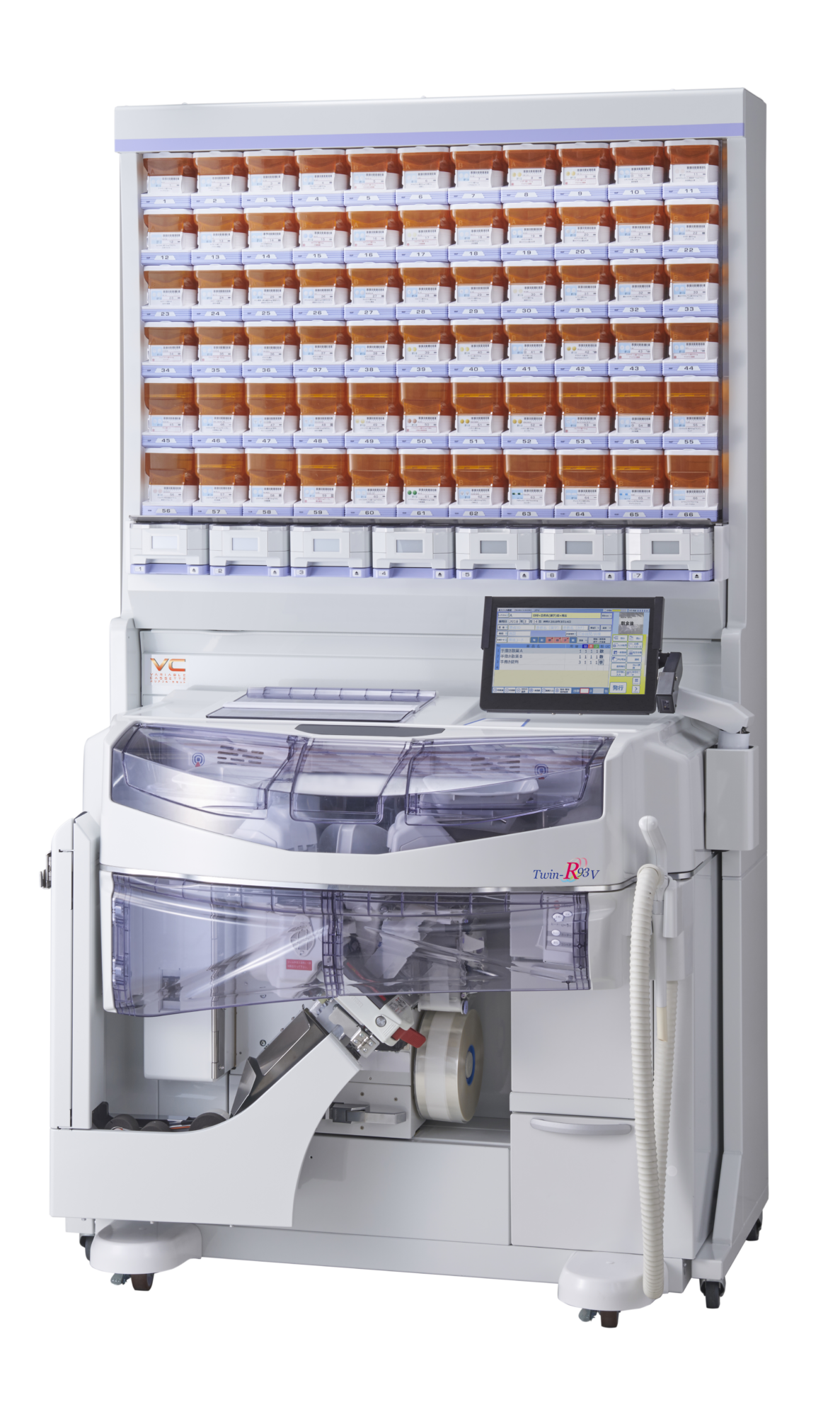

Fully-Automatic Powder Drug Packaging Machine
Twin-RV
Top-of-the-line Model
Fusing Top Class Sophistication and Design with Effortless Usability and Peace of Mind
Features
Accommodates up to 270 Packages
The Twin-RV is our top-of-the-line powder medication dispenser and packager equipped with two discs and a total capacity of 270 packages of powder medications. With a maximum packaging speed of 56 packages per minute, equaling the speed of tablet dispensing, the Twin-R93V offers the ultimate in operational efficiency and speed.
*The 270 packages model is optional (Supports up to 135 packages per disc). The 183 packages model is the standard configuration (Supports up to 93 packages per disc).

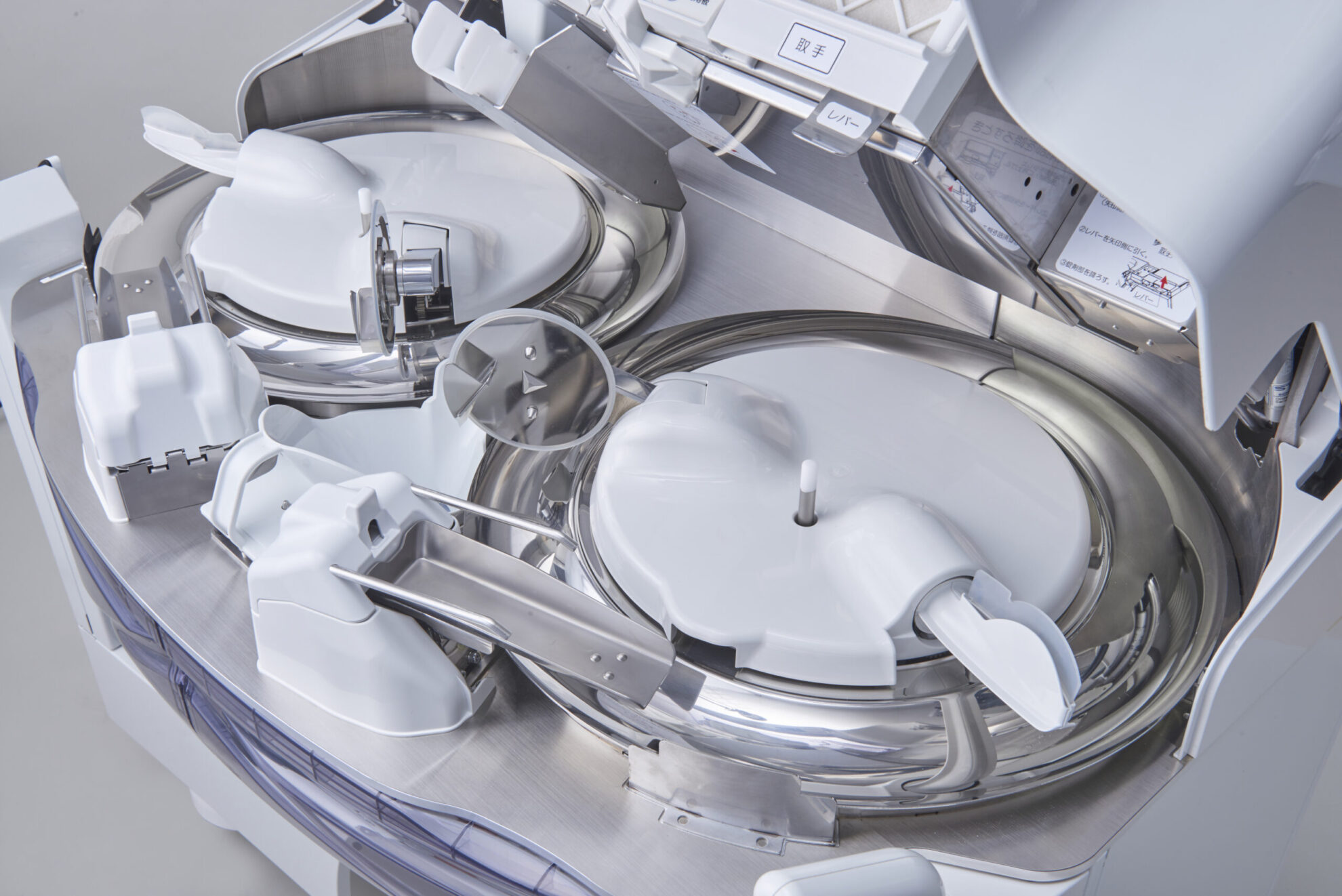

Innovation to Keep Even the Smallest Parts Clean
A flat profile around the disc area to simplify daily maintenance, minimize cleaning time compared to conventional models, and save you valuable time. Equipped with two vacuum cleaners for simultaneous auto and handheld cleaning.

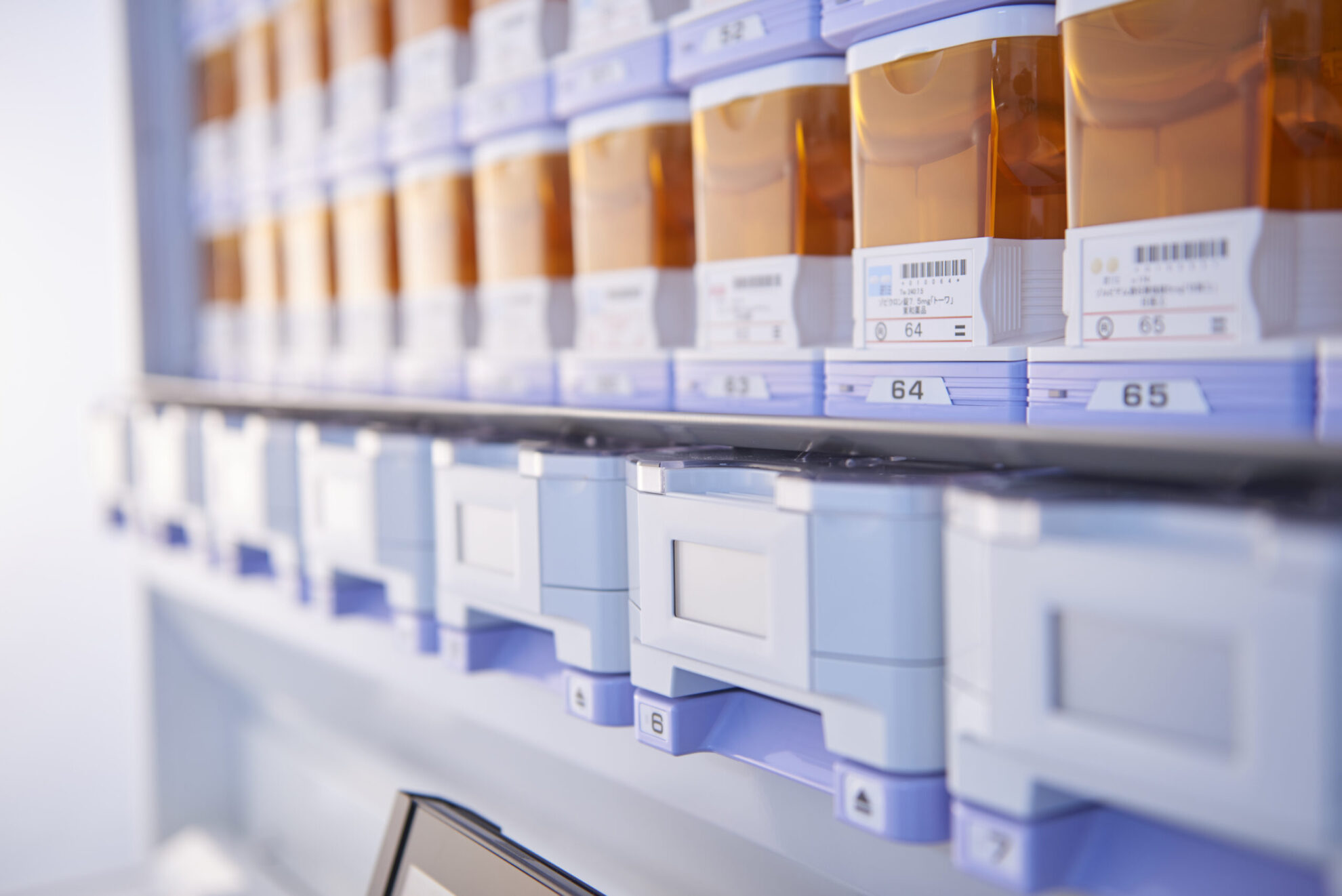

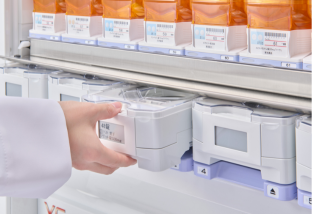

Four Tablet Dispensing Cassette Storage Units with 13 Patterns
Features a tablet cassette mechanism which can be mounted to the body of the Twin-RV for convenient single-dose packaging of long-term prescription medications and storage of powder medication cassettes. Available in 9 different cassette variations. Cassettes can also be retrofitted to the main unit to match your work style.
*Optional
Spec
| Product Name | Fully-Automatic Powder Drug Packaging Machine Twin-R93V |
|---|---|
| Model | YS-93TRⅤ |
| External Dimensions | 1,030mm* (width)×660mm (depth)×950mm (height) *Same width (1,030mm) when mounted with a conveyor |
| Weight | Approx. 200kg* *+7kg when mounted with a conveyor |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 1,300VA(Max.)/1,450VA(Max.)(with tablet cassette) |
| Number of Packages | Powdered medications: 1 to 183 packages (Up to 93 packages per disc) *Optionally supports 1 to 270 packages of loose medication (Up to 135 packages per disc). Tablets: 1 to 744 packages |
| Number of Manual Dosing Tablet Squares (Cells) | 48 tablets/time |
| Dispensing Speed | 56, 51, 45, 40, 35, 23 packages/min. (6-step changeover) |
| Single Package Dimension | Width (5 sizes 90, 80, 76, 70, 60mm) × Height 70mm |
