- High Pressure Steam Sterilizer for Small Packaged Goods YS-A-C106

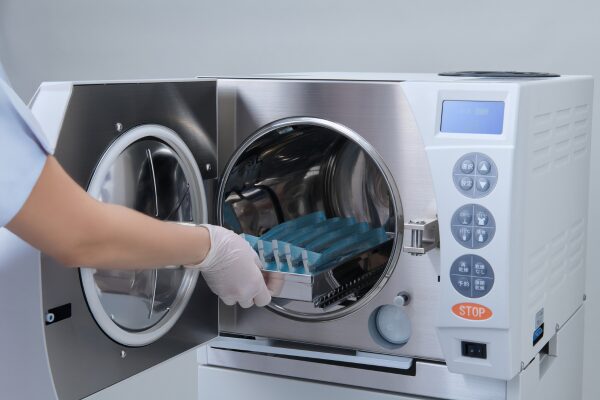

High Pressure Steam Sterilizer for Small Packaged Goods
YS-A-C106
Compact Body with Versatile Functions
A New Tabletop Autoclave Combining Efficiency.
Features
Newly Equipped with a Quick-Dry Mode
In addition to the conventional low-temperature, standard, and high-temperature modes, a “quick-dry mode” has been added, evolving the drying temperature settings into four patterns. In the quick-dry mode, the heater temperature can be set to 200°C for 10 minutes as a quick drying process.
*Quick-dry mode is available only for metal sterilized and unpackaged products at 135°C.

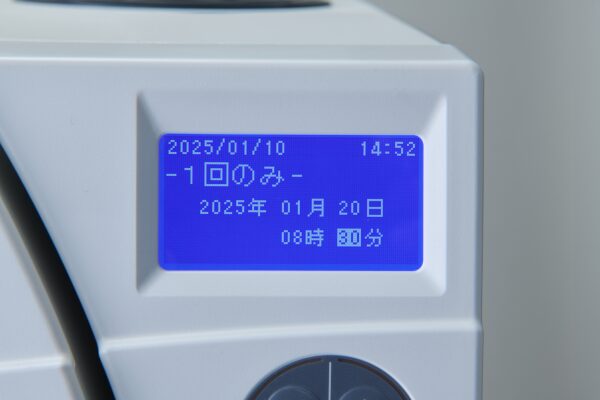

Improved Efficiency with Continuous Operation and Scheduled Sterilization
YS-A-C106 is equipped with functions for continuous operation and scheduled sterilization. Scheduled sterilization allows users to specify not only the date and time but also multiple dates with specific weekdays, enabling efficient sterilization.

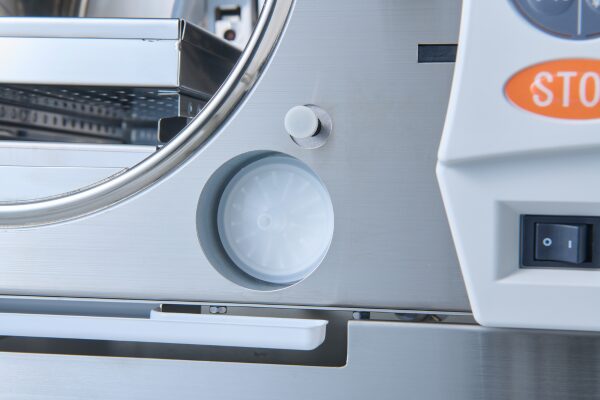

Easy Maintenance
The air filter is positioned at the front for easy replacement. Additionally, the timing for replacing consumables can be checked on the LCD panel, and a notification will appear as the replacement time approaches. This design simplifies maintenance without disrupting operations.
Spec
| Product Name | C106 High Pressure Steam Sterilizer for Small Packaged Goods |
|---|---|
| Model | YS-A-C106 |
| External Dimensions | 426mm (width)×469mm (depth)×366mm (height) *Excluding partial protrusions |
| Weight | Approx. 35kg |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 1.2kVA(Max.) |
| Tank Capacity | 14.8 liters |
| Medical Device Class | Class II (Specially-designated medical devices requiring maintenance) |
| Pharmaceutical Regulatory Affairs Certification Number | 307AABZX00004000 |
