High Pressure Steam Sterilizer for Small Packaged Goods
YS-A-C207J/YS-A-C217J

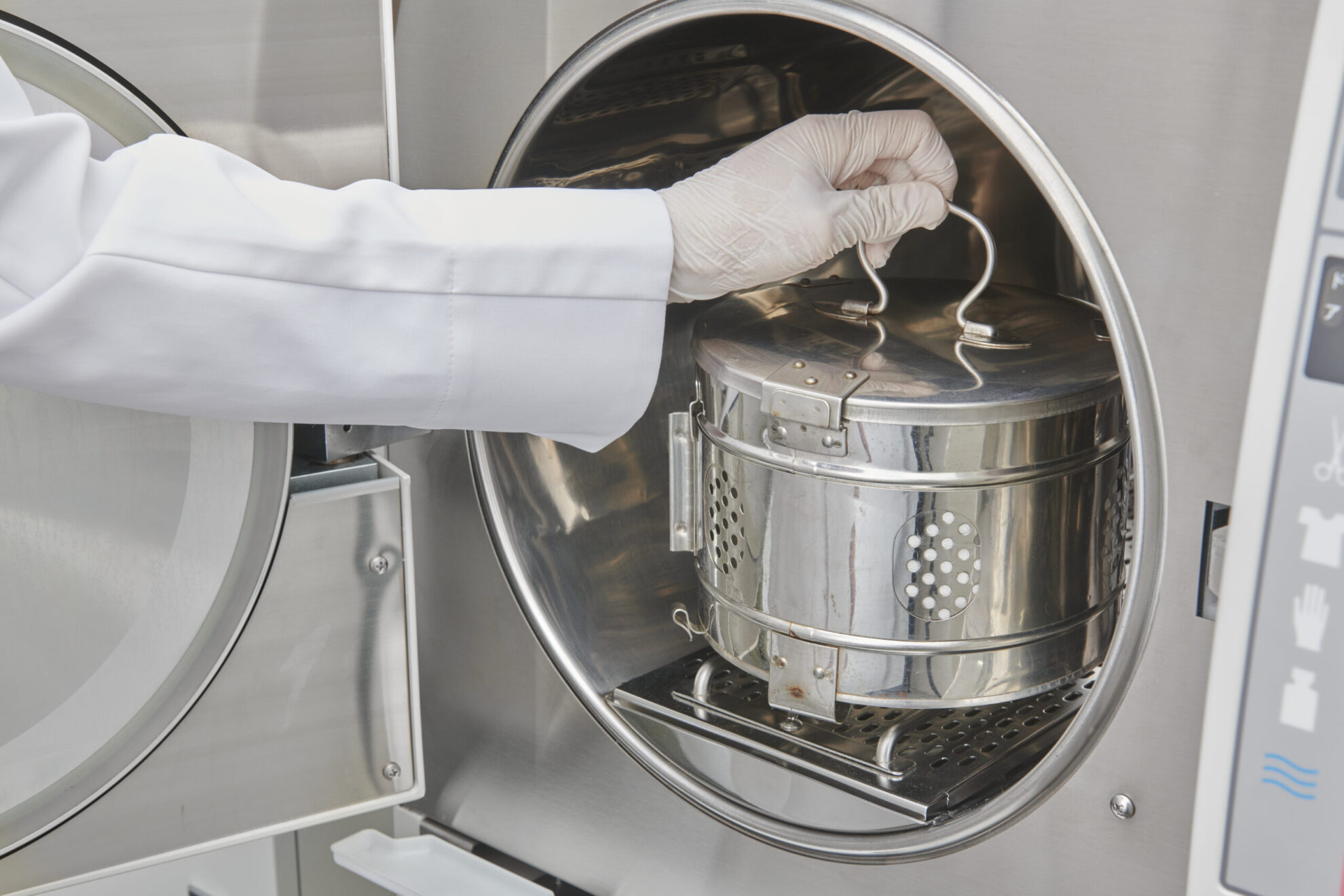

Medium-sized Autoclaves that Hold Two 27cm Round Casts
Features
Two Types to Choose from Based on Function
A medium-sized autoclave that can hold two 27cm round casts, YS-A-C207J can be used and placed on a work unit. Meanwhile, YS-A-C217J is a trestle-integrated type equipped with a high-grade vacuum pump.

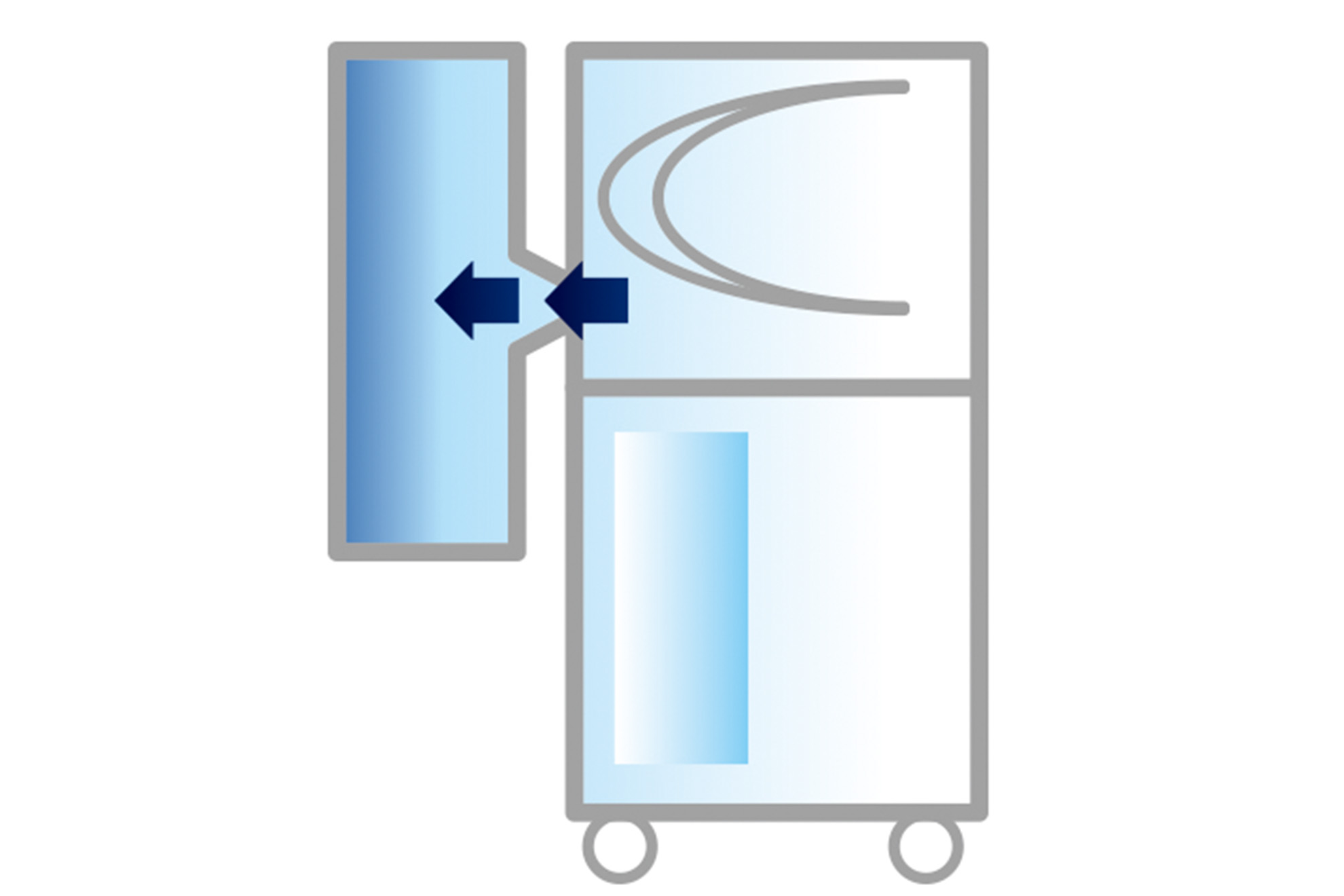

Vacuum Pumps Reduce Time Involved in Sterilization
The vacuum pump in the YS-A-C217J lowers the air pressure during the water supply and drying processes, thereby lowering the boiling point of water, reducing heating time and ensuring a high-quality drying process.

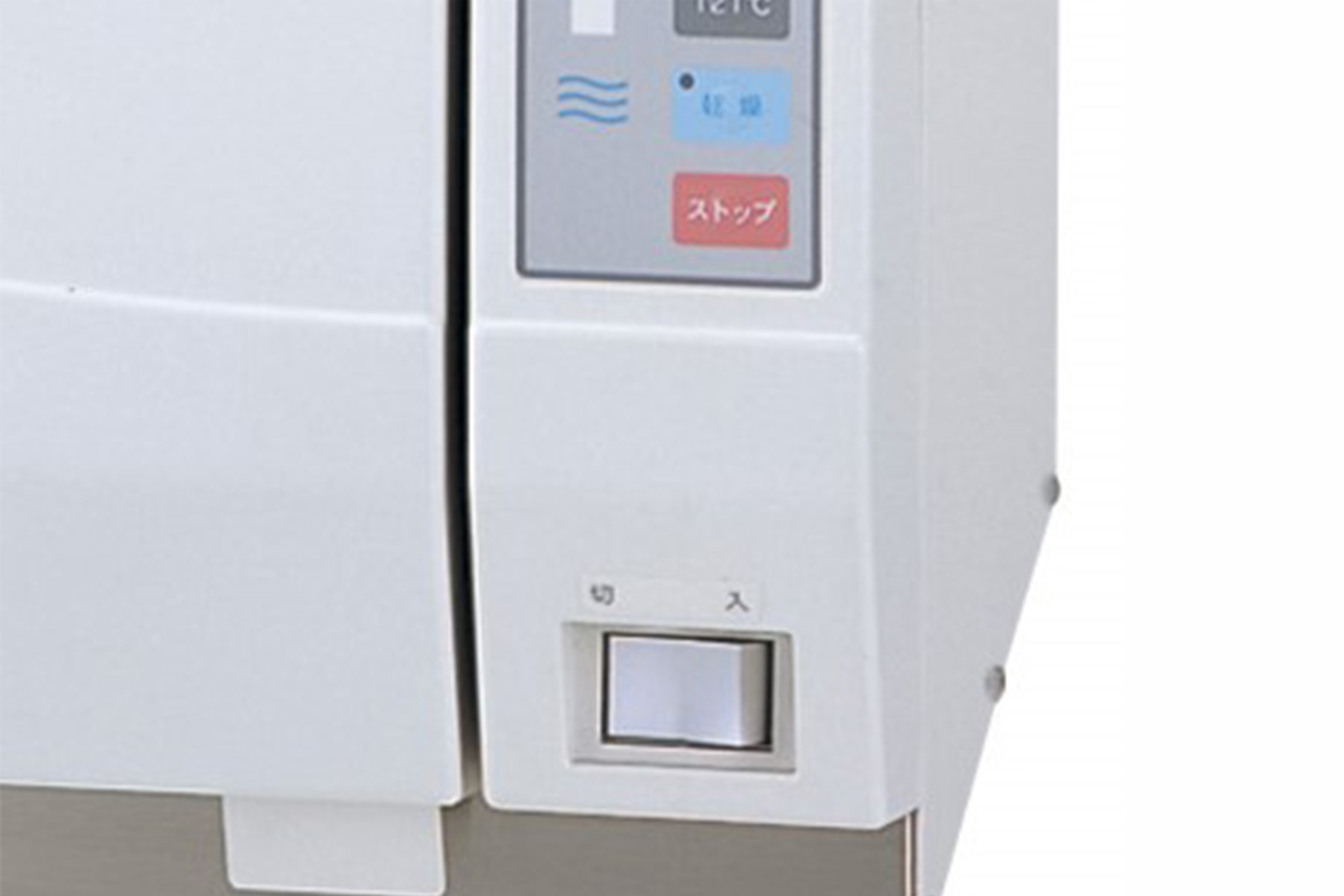

Automatic Door Locking Mechanism for Added Safety
An automatic locking mechanism prevents the door from being opened using a sensor in case an incorrect operation is performed or if pressure remains in the chamber. The door can also be opened and closed with a single touch for ease of operation.
Spec
| Product Name | C207J/C217J High Pressure Steam Sterilizer for Small Packaged Goods |
|---|---|
| Model | YS-A-C207J、YS-A-C217J |
| External Dimensions | C207J: 557mm (width)×686mm (depth)×475mm (height) C217J: 557mm (width)×686mm (depth)×1,252mm (height) |
| Weight | C207J: Approx. 58.5kg C217J: Approx. 145kg |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 2.2kVA(Max.) |
| Tank Capacity | 42 liters |
| Medical Device Class | Class II (Specially-designated medical devices requiring maintenance) |
| Pharmaceutical Regulatory Affairs Certification Number | C207J:219AABZX00052000 C217J:219AABZX00080000 |
| Additional Equipment | C217J: Vacuum pump/water supply tank |
