High Pressure Steam Sterilizer for Small Packaged Goods
YS-A-C317J/YS-A-C327J
Medium-sized Autoclaves that Hold Three 27cm Round Casts
Features

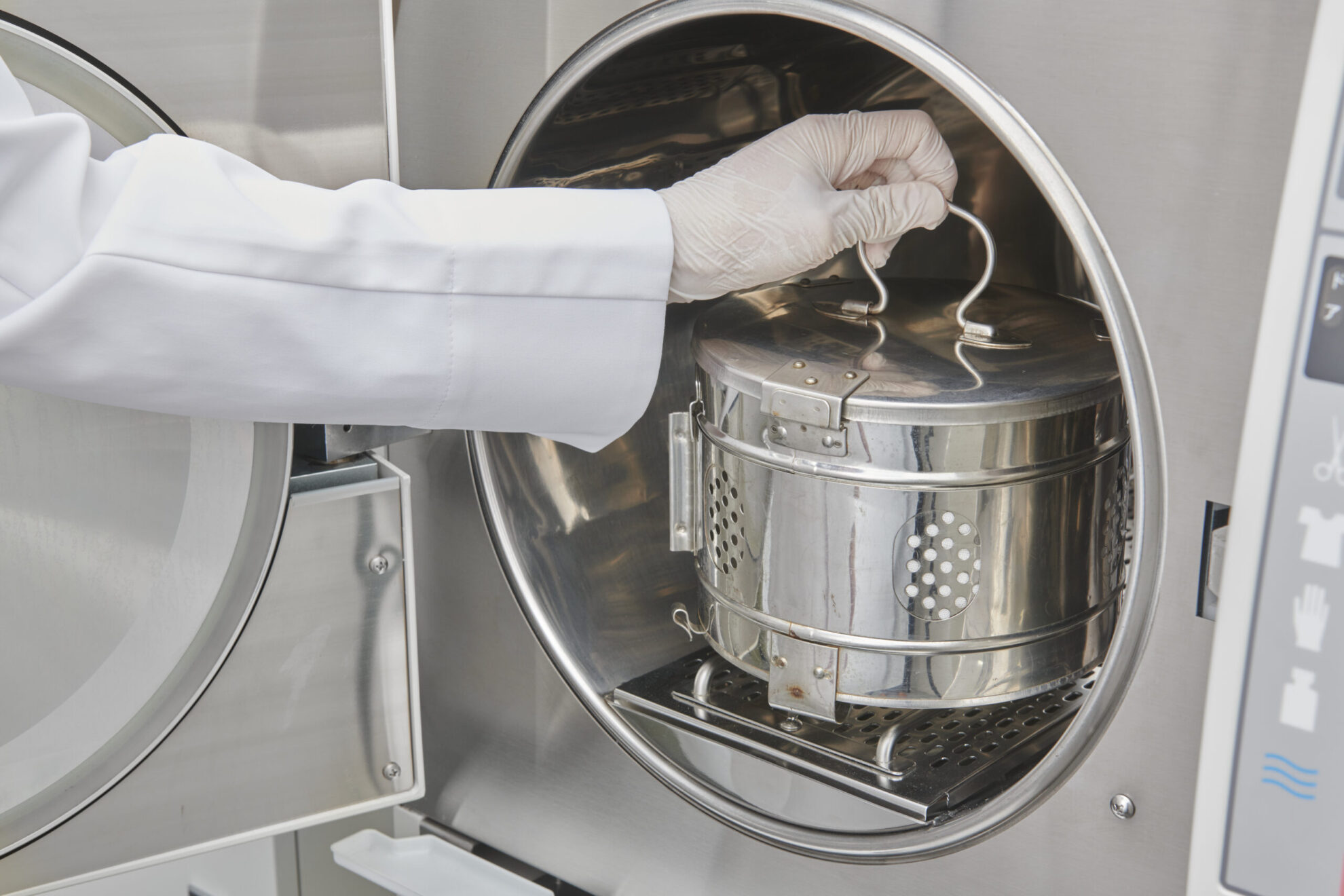

Autoclaves with Better Mechanisms
These autoclaves can hold three 27cm round casts. YS-A-C317J is a type equipped with a vacuum pump, YS-A-C327J is a high-end model equipped with a steam generator in addition to a vacuum pump.

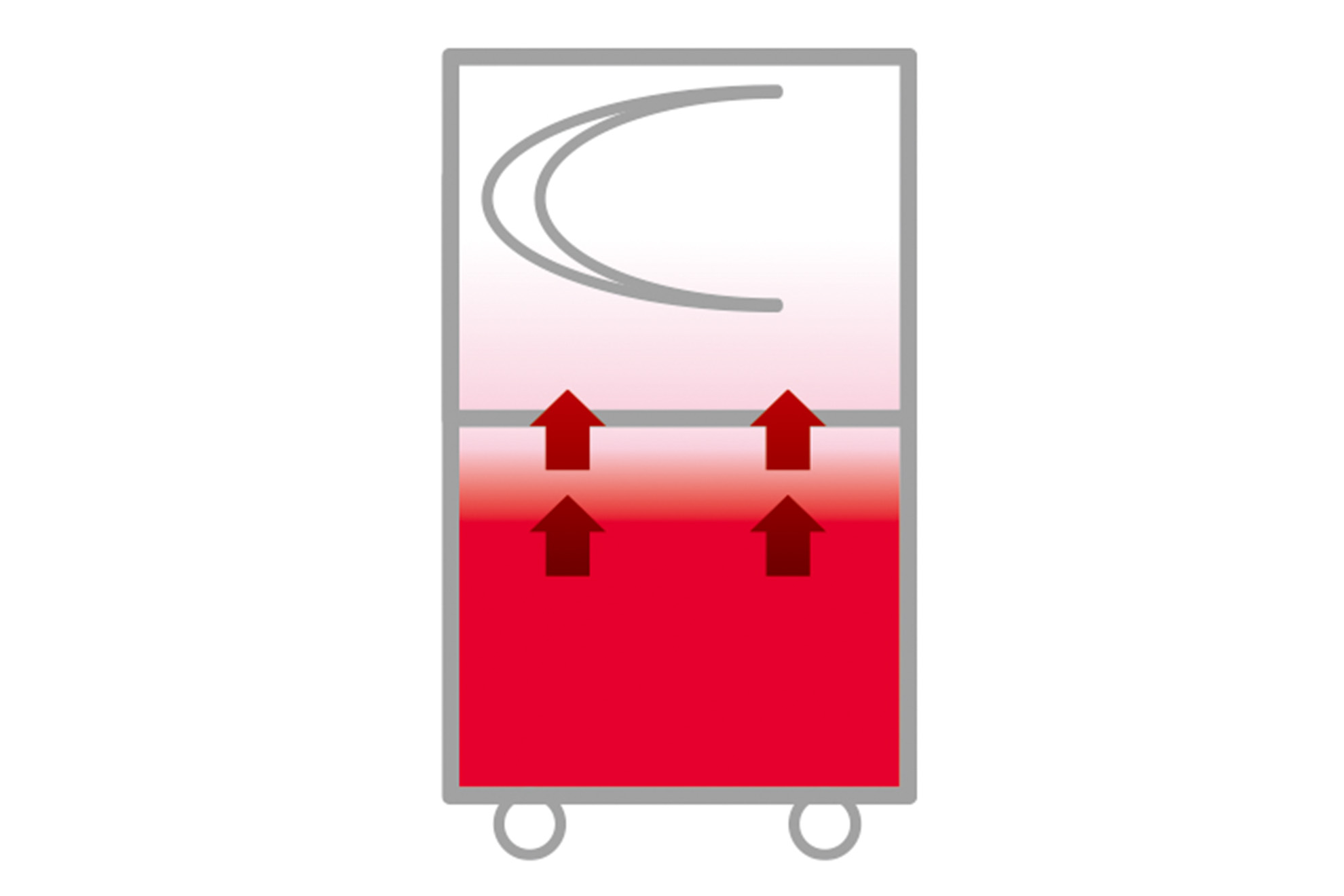

Steam Generators for Even Greater Efficiency
The steam generator in the YS-A-C327J can constantly generate and store steam for sterilization. By using this steam during sterilization, heating time can be drastically reduced.

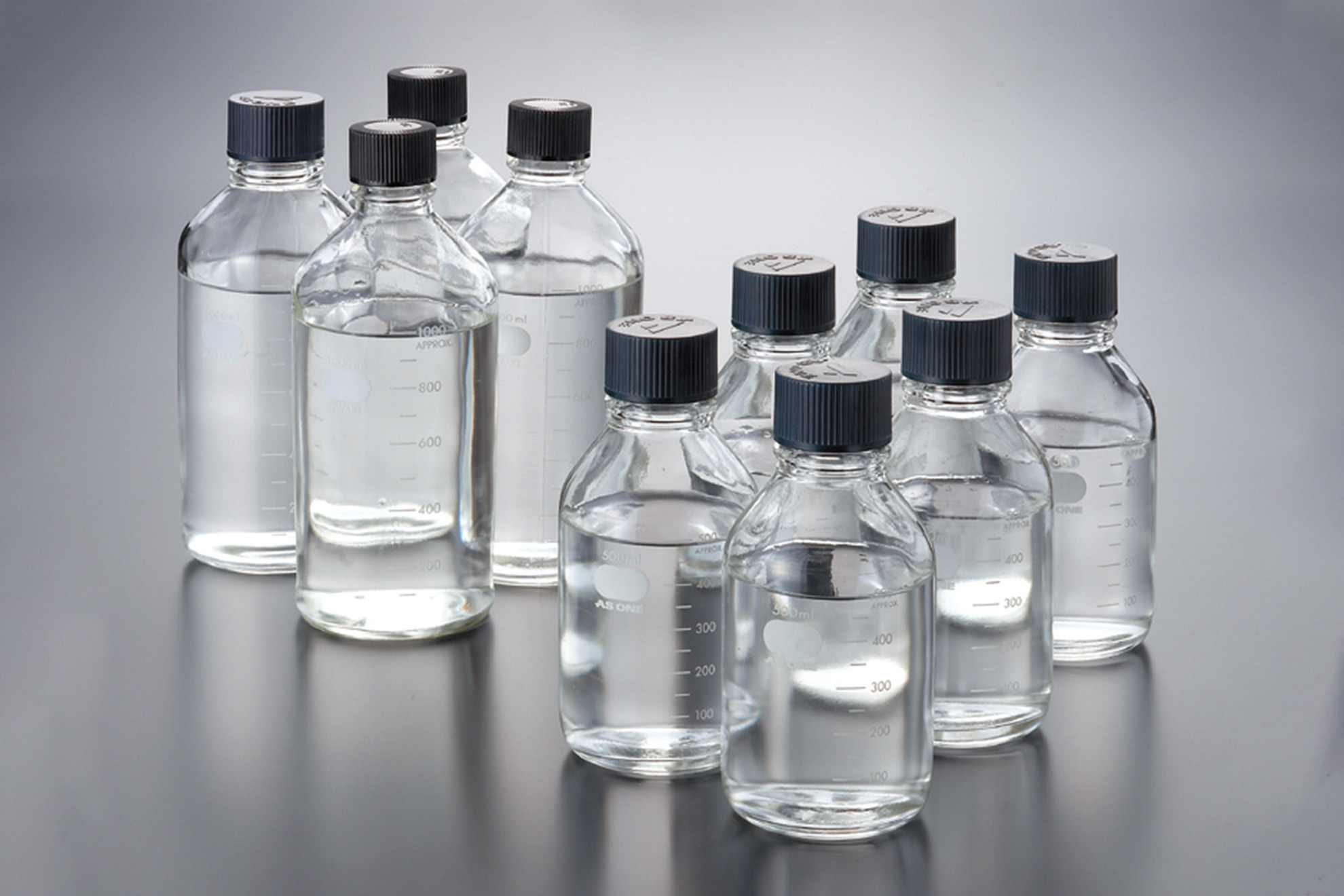

Can be Used for Water Sterilization
All models are equipped with a water sterilization mode to produce sterilized water for cleaning medical instruments. Four 1,000 cc sterile bottles or six 500 cc bottles can be processed at one time. It saves space by eliminating the need to purchase separate equipment for making sterilized water.
Spec
| Product Name | C317J/C327J High Pressure Steam Sterilizer for Small Packaged Goods |
|---|---|
| Model | YS-A-C317J、YS-A-C327J |
| External Dimensions | 557mm (width)×886mm (depth)×1,252mm (height) |
| Weight | Approx. 150kg |
| Power Supply | AC100V±10V(50/60Hz) |
| Power Consumption | 2.5kVA(Max.) |
| Tank Capacity | 56 liters |
| Medical Device Class | Class II (Specially-designated medical devices requiring maintenance) |
| Pharmaceutical Regulatory Affairs Certification Number | C317J:219AABZX00081000 C327J:219AABZX00125000 |
| Additional Equipment | C317J: Vacuum pump/Water supply tank C327J: Vacuum pump/Steam generator |
