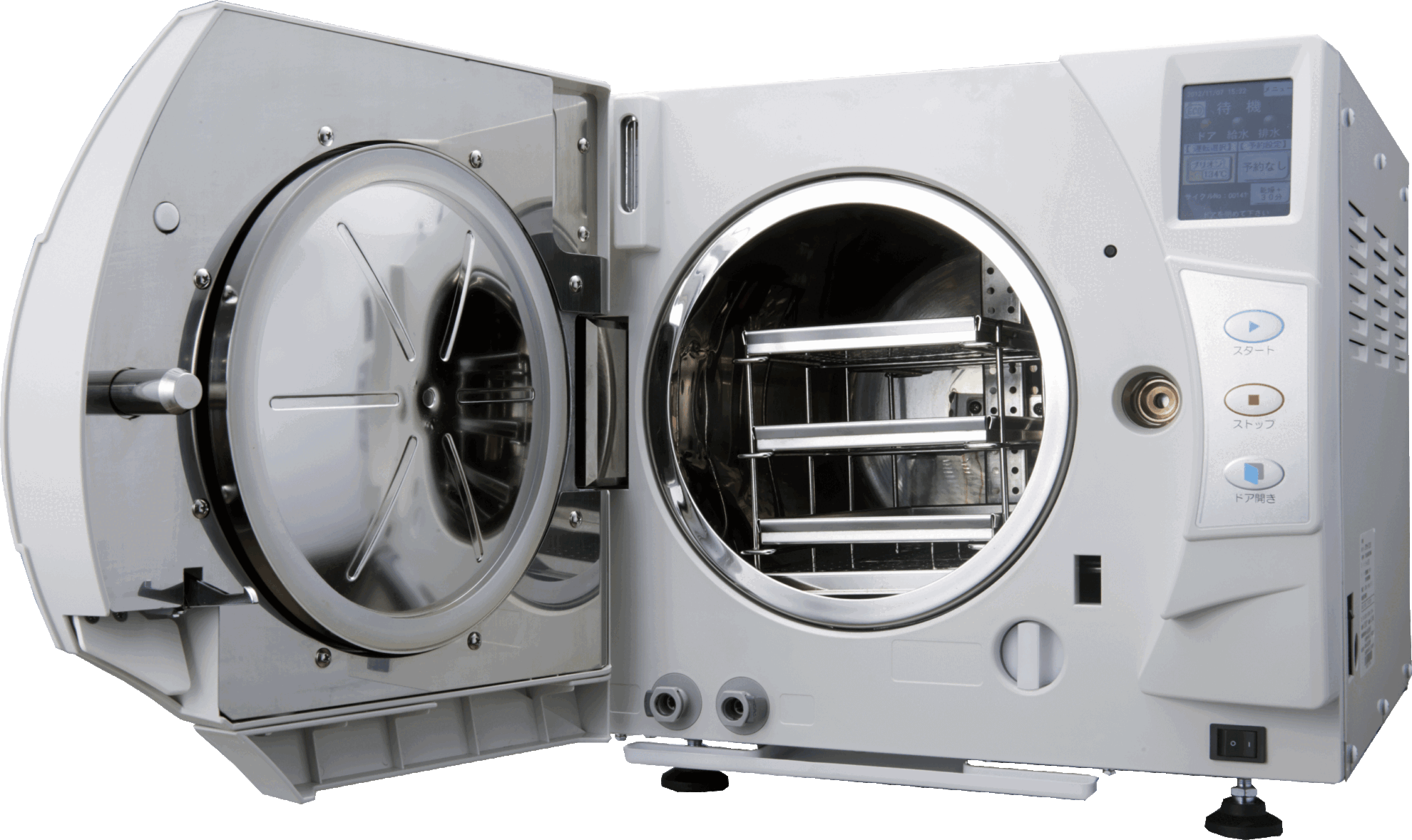

- YS-A-C501B High Pressure Steam Sterilizer for Small Packaged Goods
High Pressure Steam Sterilizer for Small Packaged Goods
YS-A-C501B
Class B Compliant, a World Standard Autoclave

Features
Class B Compliant—the Highest Standard
A class B compliant autoclave, the highest standard for complete sterilization of all types of sterilizable materials (solid, packaged, porous, and hollow objects) according to EN13060, the European standard for small high-pressure steam sterilizers. It can reliably sterilize instruments with tube structures, such as those commonly used in dentistry.
*Confirmed by our internal verification that Class B requirements are met; Class B application has not been filed.

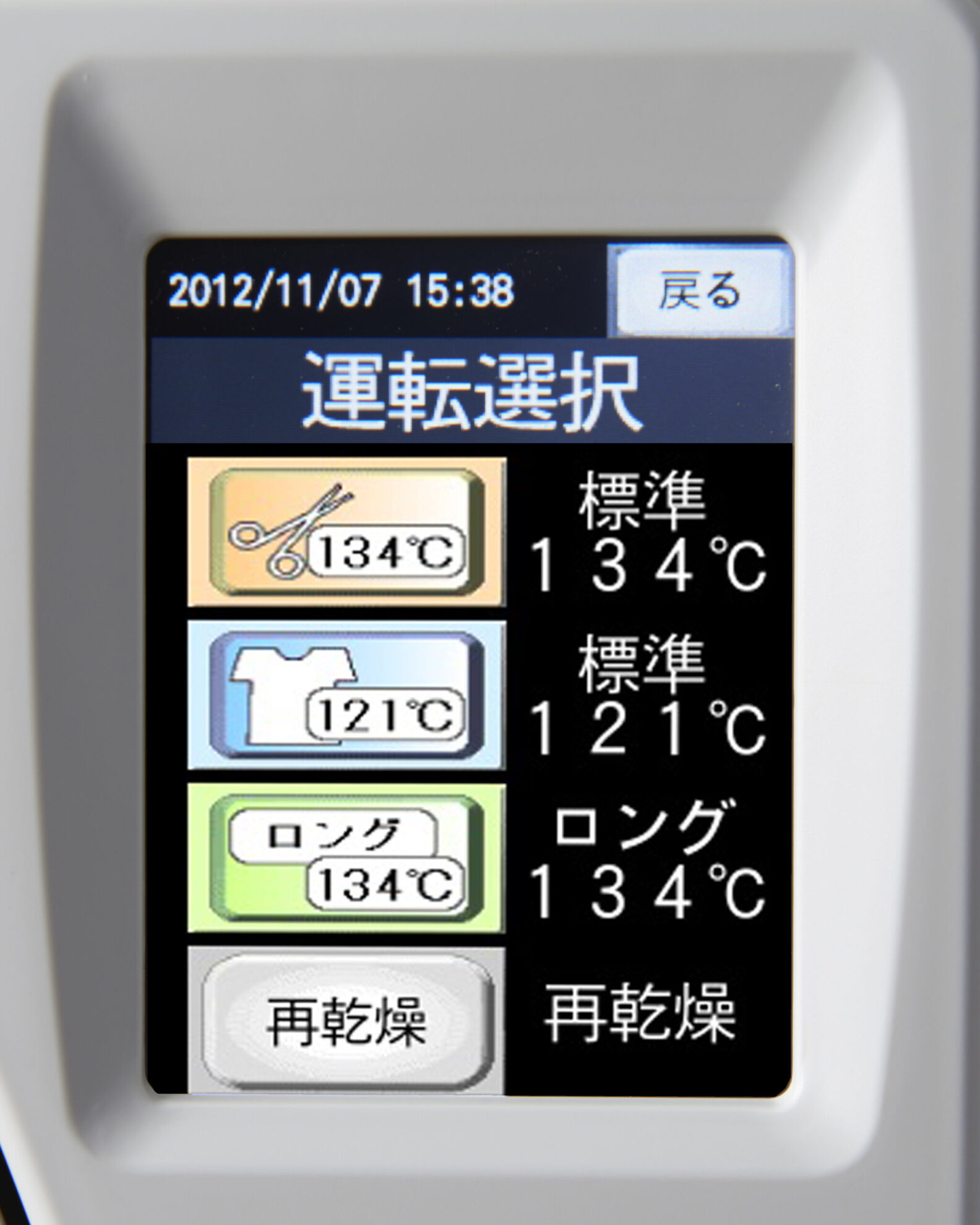

Three Modes According to the Sterilized Material
There are three sterilization modes available. In addition to the standard mode of 134°C for 4 minutes and 121°C for 20 minutes, a long mode of 134°C for 18 minutes. A low-temperature drying mode can also be selected according to the material to be sterilized. It is also possible to have objects sterilized by a specific time by inputting the desired completion date and time.

Checkable Operation Records
The device’s last 10 uses can be viewed on its monitor. An optional journal printer can also be connected to print out operation records. The monitor screen uses a color LCD touch panel with excellent visibility.

Spec
Product Name | C501B High Pressure Steam Sterilizer for Small Packaged Goods |
---|---|
Model | YS-A-C501B |
External Dimensions | 430mm (width)×525mm (depth)×408mm (height) |
Weight | Approx. 50kg |
Power Supply | AC200V±10V(50/60Hz) |
Power Consumption | 2.2kVA(Max.) |
Tank Capacity | 16.5 liters |
Medical Device Class | Class II (Specially-designated medical devices requiring maintenance) |
Pharmaceutical Regulatory Affairs Certification Number | 225AABZX00058000 |
