Crimping Device
Crimple

Secure Crimping, Effortless Opening

Features

Easy Pressure Sealing of Pouch Strips

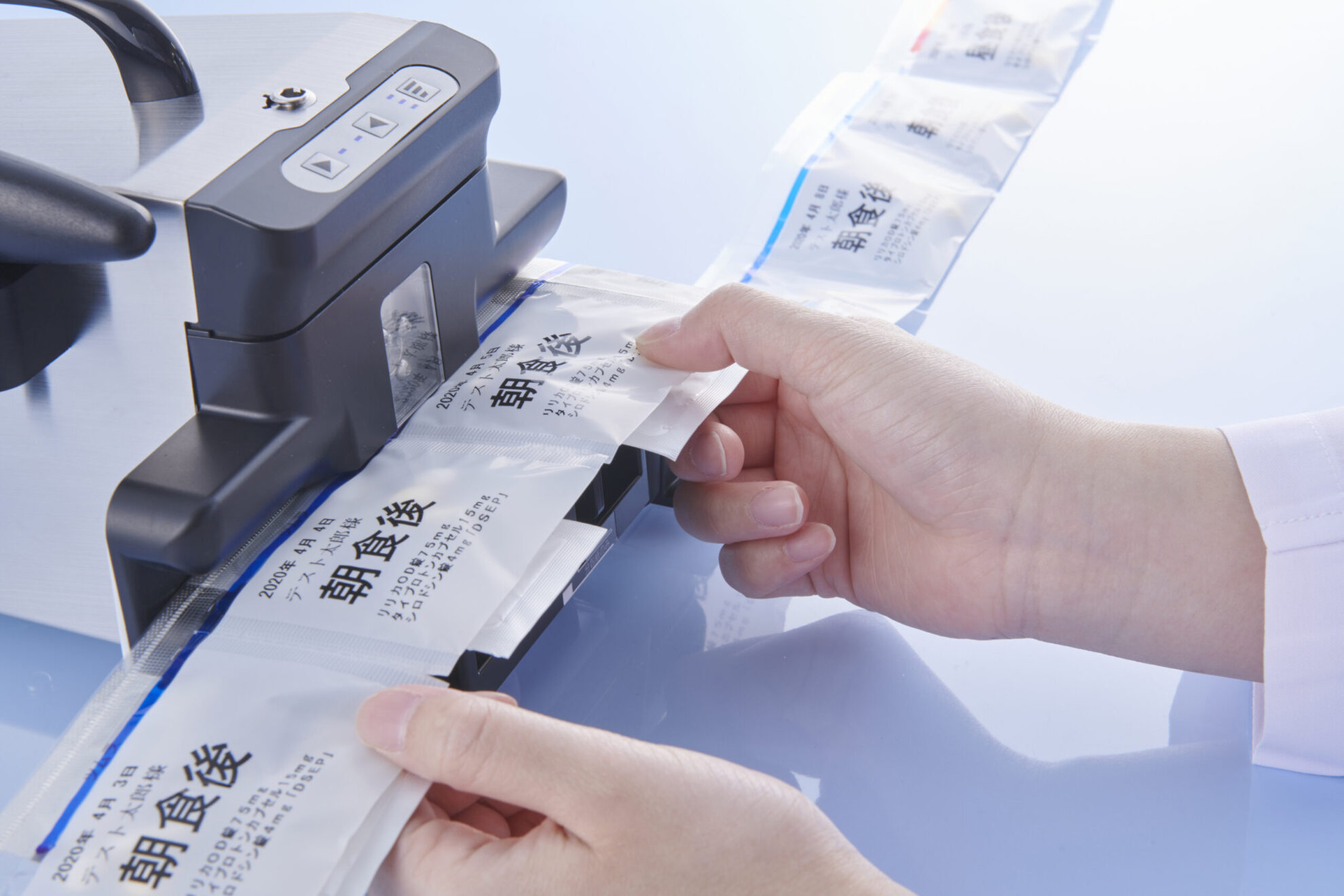

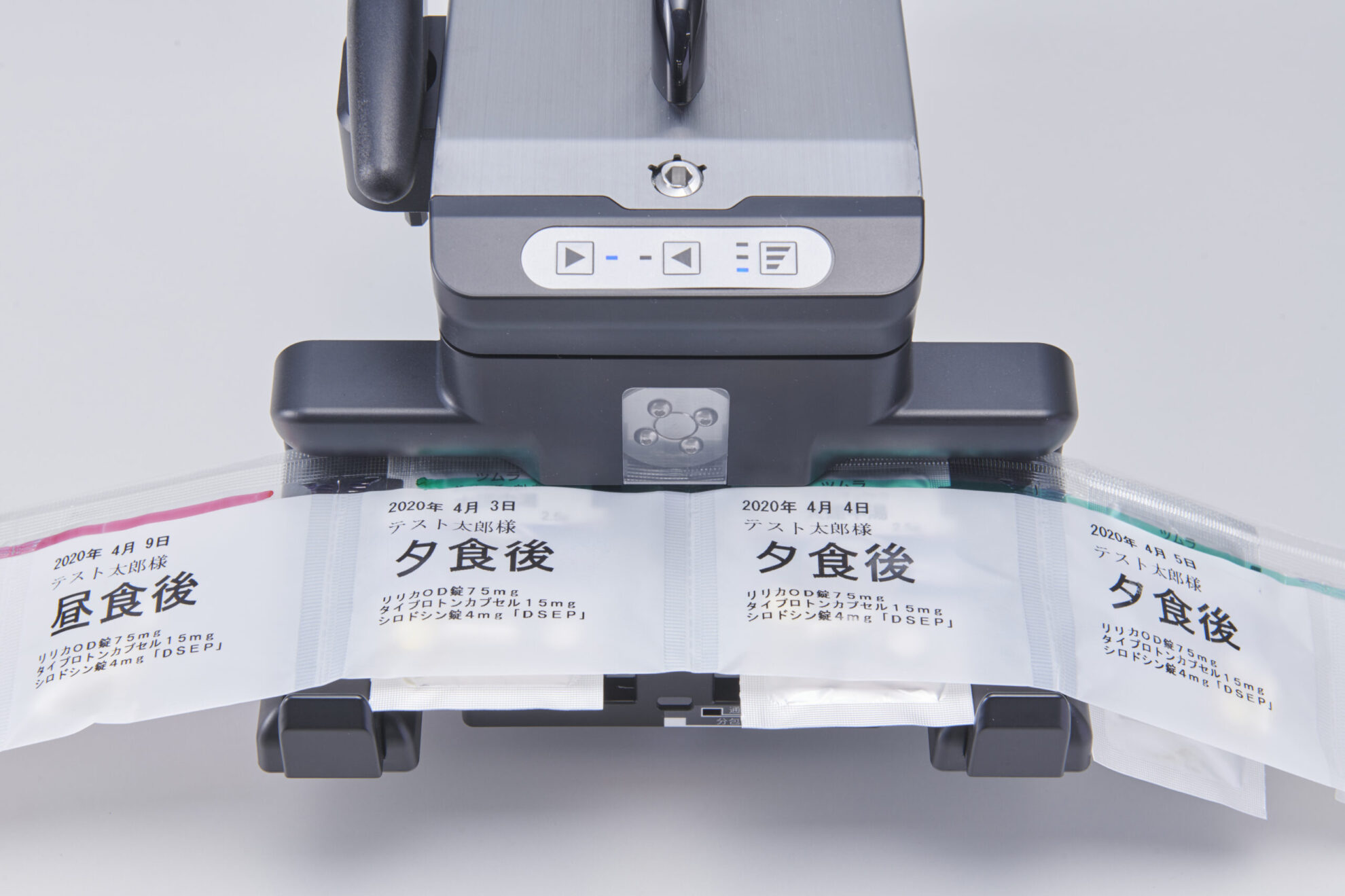

The Crimple is a crimping device capable of pressing and crimp-binding multiple single-dose or heat-sealed pouches into a strip using upper and lower rollers. Simply insert the pouches into the main unit and step on the foot switch to press and seal. The Crimple can bind strips of up to two heat-sealed pouches, up to three single-dose + heat-sealed pouches, or up to four single-dose pouches.

Safe Roller-type Press Sealing

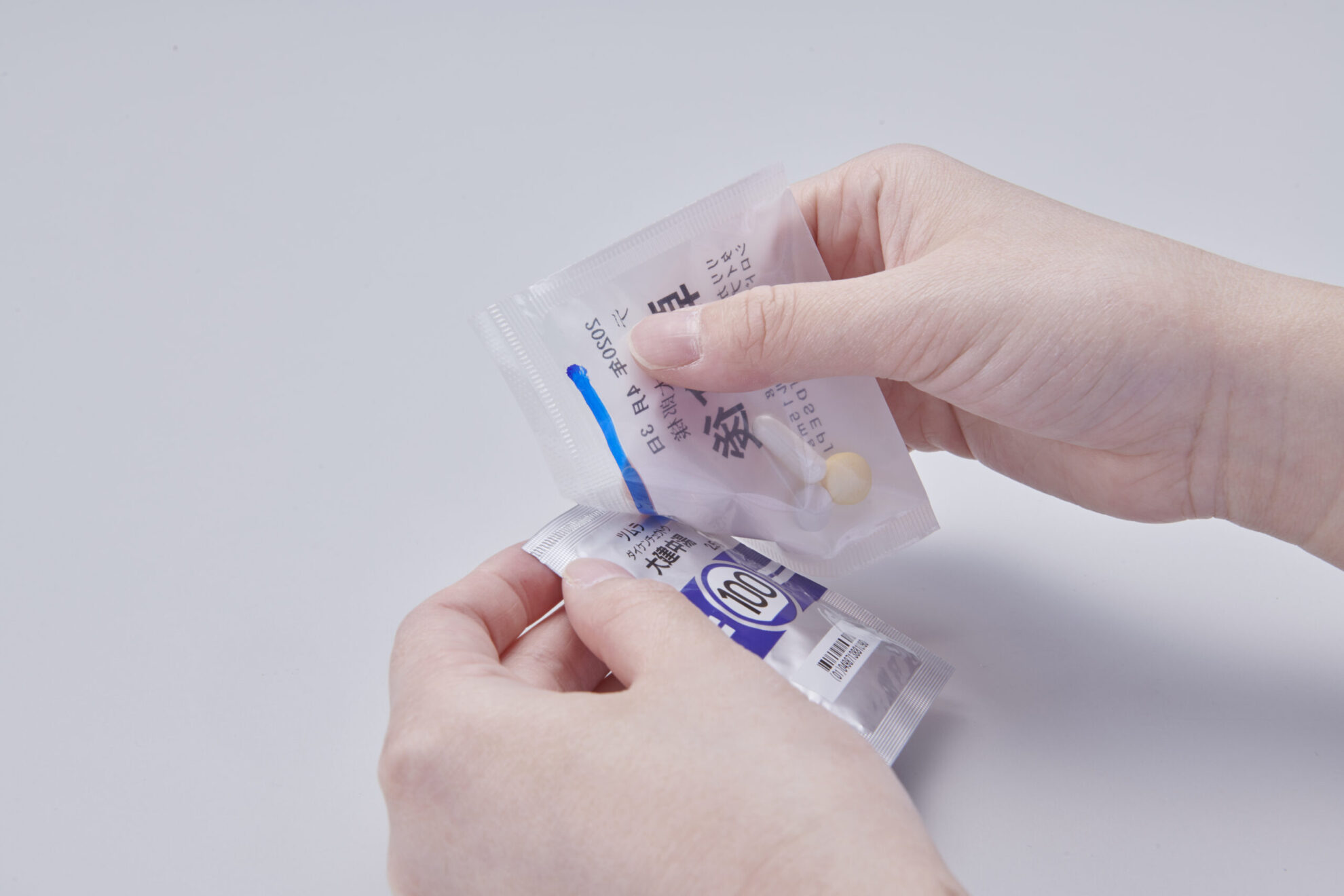

The roller-type press-sealing design facilitates neat and easy opening of medication pouches along the sealed line. “No staples” eliminates the risk of accidentally swallowing sharp objects, pricking a finger, or damaging the medication pouches, providing patients with safety and ease when taking medications.

Designed for Right and Left-Handed User Compatibility

The crimping press-roller supports both left- and right-hand rotation, so that medication packages can be inserted from either side depending on the dominant hand of the user. Alongside added user compatibility, the device also features three feeding and pressing speeds: high, medium, and low.

Spec

Product Name Crimping Device Crimple
Model YS-YT-C1
External Dimensions 182mm (width)×230mm (depth)×159mm (height)
*258mm depth when using the package paper guide with 70mm
Weight Approx. 3.5kg
Power Supply AC100V(50/60Hz)
Power Consumption 120VA(Max.)
Press Sealing Speed 38, 55, 80mm per second (3 levels)
Compatible Medication Pouch Paper cellophane-polyester, glassine, aluminum foil
Press Sealing Volume (number of pouches) 2-4 sheets
