Final Inspection Support Machine
Barrera

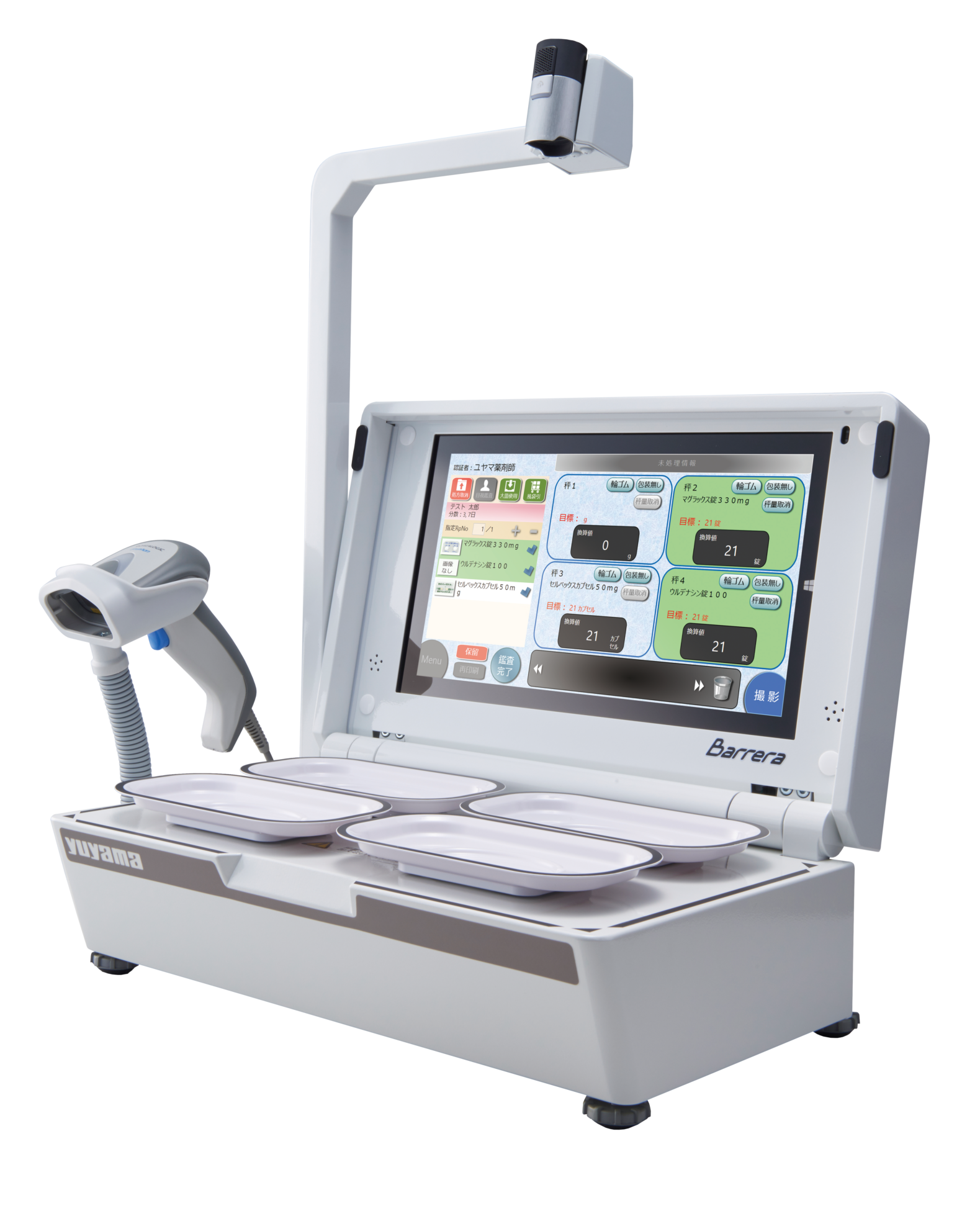

Barrera Final Inspection Support Machine
An Inspection System that Ensures Safety and Security

Features
Can Analyze Up to Four Drugs at the Same Time
This is an inspection system that not only checks the correctness of drugs via GS1 data bar matching, but it also enables counting checks by having a weight master for PTP sheets. Up to four drugs can be inspected simultaneously, and a large tray adapter can be used to inspect large quantities of PTP sheets or gross weight inspection of packaged dispensed powder drugs.

Equipped with an Image Capture Function
A web camera that can take pictures of the inspection results comes as standard. After the inspection, a web camera installed on the top of the main unit automatically takes pictures that can be stored for up to three months (approximately 70,000 images) to ensure dispensing traceability.

Space-saving and Compact Design
The built-in tablet PC eliminates the need to install a computer unit that is difficult to find space for. It has achieved an unparalleled compact design with a wide size touch panel monitor that allows for intuitive operation.

Spec
Product Name | Barrera Final Inspection Support Machine |
---|---|
Model | YS-CCS-01 |
External Dimensions | 405mm (width)×260mm (depth)×537mm (height) (including camera unit) |
Weight | Approx. 13.5kg |
Power Supply | AC100V±10V(50/60Hz) |
Power Consumption | 100VA(MAX) |
Weighing Capacity | Max. 220g per balance×4 (Max. 600g when equipped with a large tray adapter) |
Operation Screen Size | 11-inch touch panel monitor (tablet PC) |
